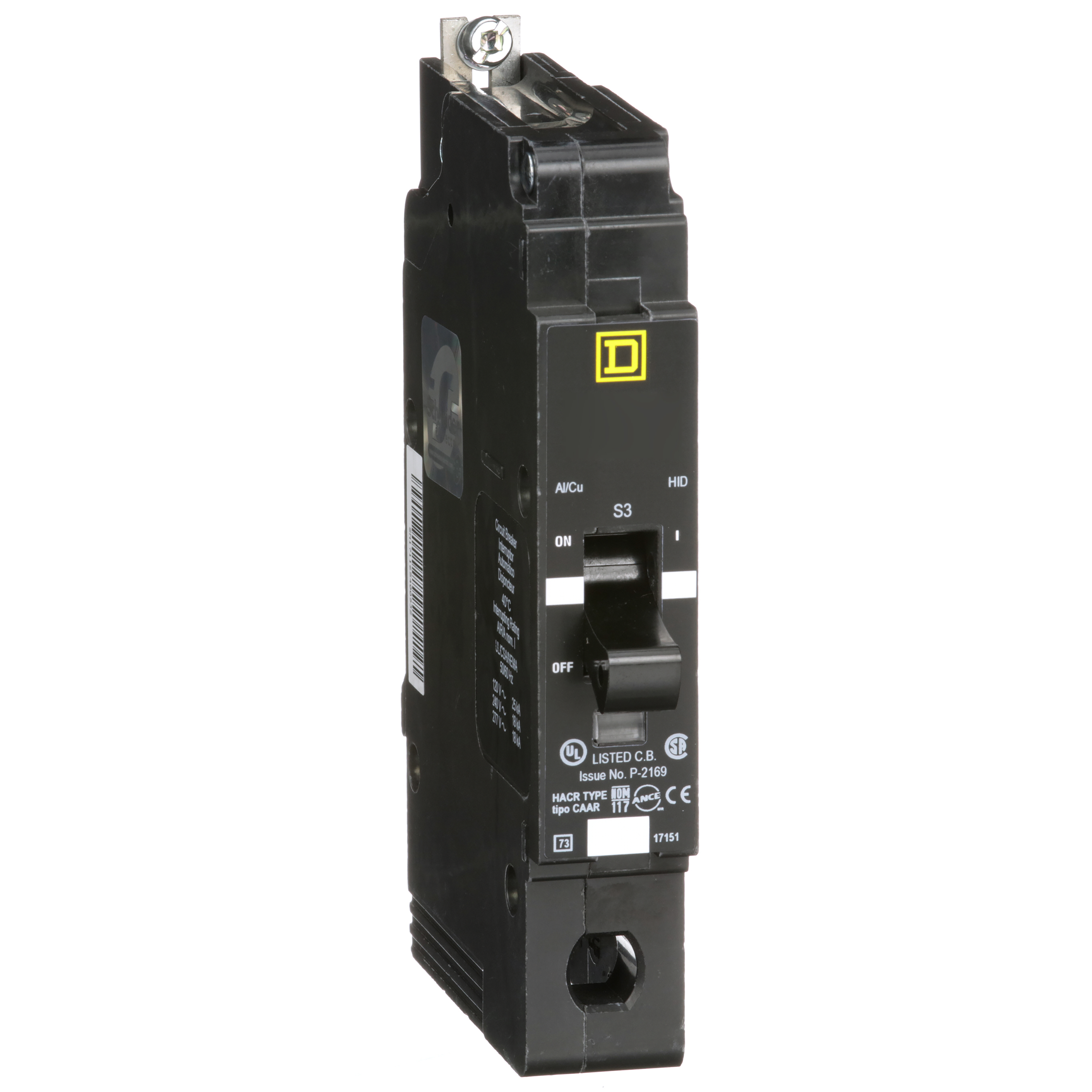

Square D™ EDB14030 Miniature Circuit Breaker, 277/480 VAC, 30 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Miniature Circuit Breakers
34956
MFG #: EDB14030
Square D™
142.84000
/ ea
Square D EDB14030 MINIATURE CIRCUIT BREAKER 277V 30A,18kA,30A,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8073829360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_FC8OLTS5M7ZUQ90G.pdf(Brochure URL)
- Brochure URL - 11003_HEG1U8LF92ZOSQD5.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_7e3b07b05c8d33c7fcb64ea19cb7d3fab67f1ecc4293fb50c9b5163a7211476d.pdf(Catalog URL)
- Compliance Cert URL - Schneider_Electric_EDB14030_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_W405MTQD91NUXV7Z.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=48840-097-02(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_6YTNP01EFUSQGWA7.pdf(Service Manual URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_MO0YTU34H8LR9ECX.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_HUL65GPVRKXTJW9Z.pdf(Tech Bulletin URL)
- Tech Bulletin URL - files?p_enDocType=Data Bulletin&p_File_Name=0100DB0101.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_IBUNZRTP0GWX4CQM.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_QU3EB956TIFL17SH.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_BG0WJPOVKNY5HLXA.pdf(Tech Drawing URL)
- Applications
- Features
| HID rated;HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip® trip indicator |
| 270 A hold, 875 A trip current |
| For merchandised NF panelboards |
| 12 to 6 AWG aluminum, 14 to 6 AWG copper |
| For merchandised NF panelboards |
| Optional factory-installed electrical accessories include; 120 Vac shunt trip, 1A/1B auxiliary switch and normally open alarm switch |
| Optional handle padlock attachment |
| Optional copper and compression lugs |
