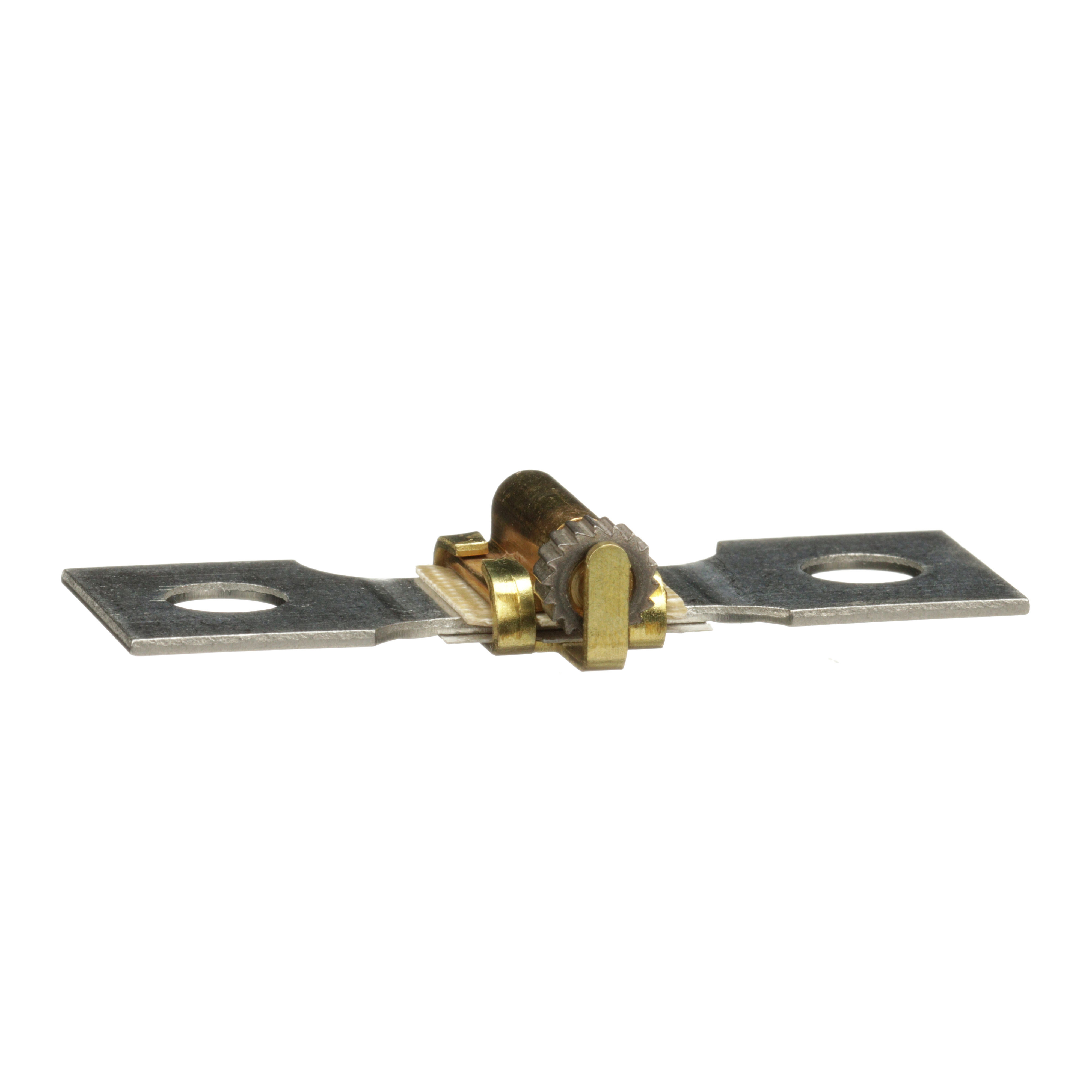

Square D™ CC219.0 Melting Alloy Thermal Unit
Overload Heaters
34020
MFG #: CC219.0
Schneider Electric
39.91000
/ ea
Square D CC219.0 THERMAL UNIT,40C ambient rated,600VAC,Dependant on overload relay,For use in melting alloy thermal overload relays,Manual,NEMA Overload relays,Schneider Electric Standard Trip- Class 93,Thermal - Melting Alloy Thermal Unit
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8104967360Den&ext=webp(360 Degree View URL)
- Compliance Cert URL - Square_D_CC219_0_Compliance_Certificate.pdf(Compliance Cert URL)
- Spec Sheet 1 URL - Square_D_CC219_0_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Spec Sheet URL - 11003_AW9DJ40BGTFSK7UQ.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/Gy1KrKzer3o(Video)
- Tech Drawing URL - 11003_13NLVCTWJ0PAQDYU.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_SE9JG5173TZO0HKQ.pdf(Tech Drawing URL)
- Applications
- Features
| FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| NEMA OVERLOAD RELAYS |
| Manual reset |
| Full load current range depends on overload relay |
| Type CC thermal unit |
| 124 to 150 A (1 thermal unit), 124 to 133 A (3 thermal unit) full load current |
