- Applications
- Features
| FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS |
| NEMA OVERLOAD RELAYS |

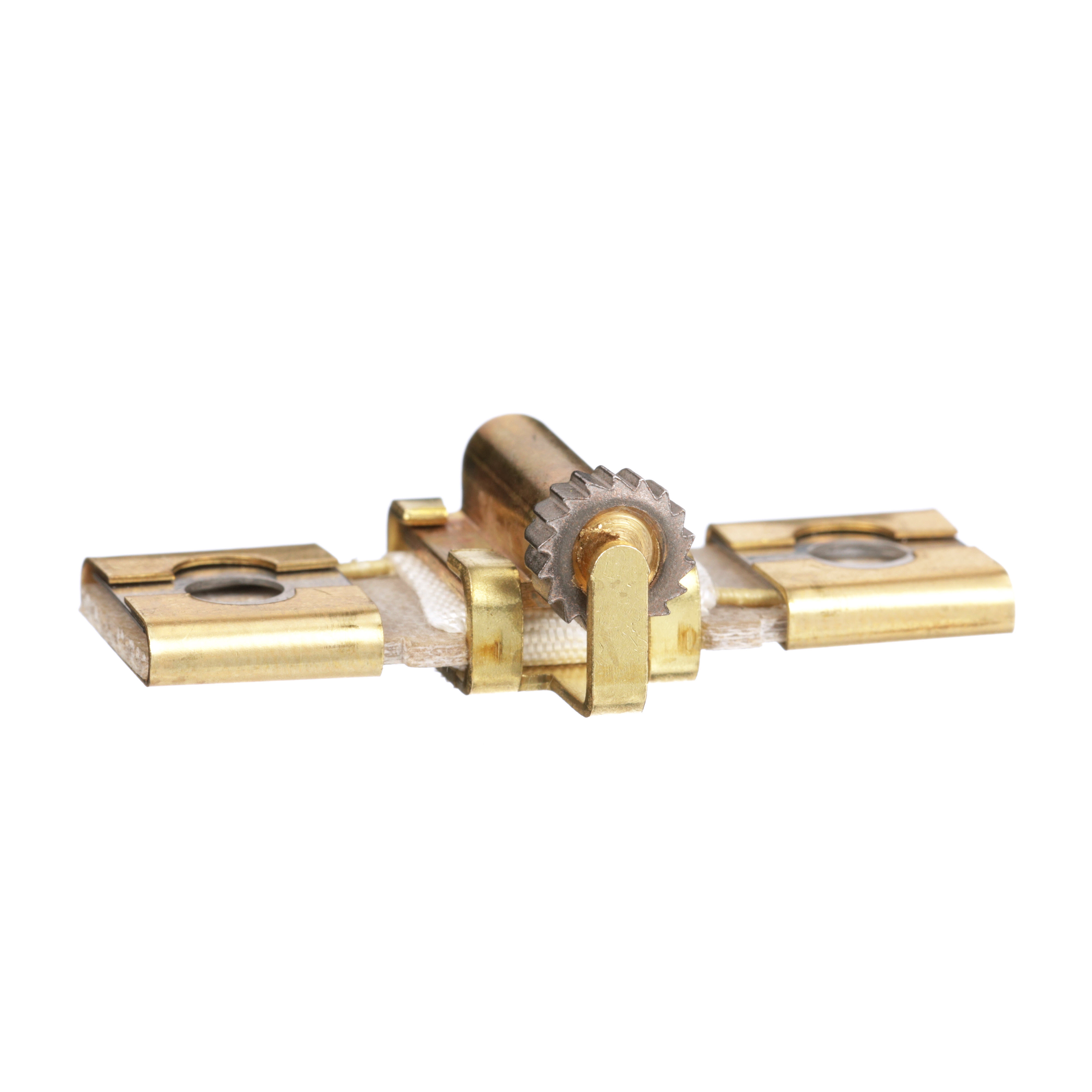

| Melting Alloy Thermal Units |
| One-piece thermal unit construction |
| Provides overload protection for most motors |
| Calibration is set for a range of motor full load currents |
| Repeated tripping does not affect the original calibration |
| Cannot be reset until cooled |
| Melting alloy thermal units are available in three designs: standard trip (Class 20) slow trip (Class 30) quick trip (Class 10) |
