Square D™ Altistart® 22 ATS22D88S6U Internal Bypass Soft Starter With Heat Sink, 110 VAC V Coil, 3 Poles, IP20 Enclosure
Open Soft Starters
1300605
MFG #: ATS22D88S6U
Square D™
1742.48000
/ ea

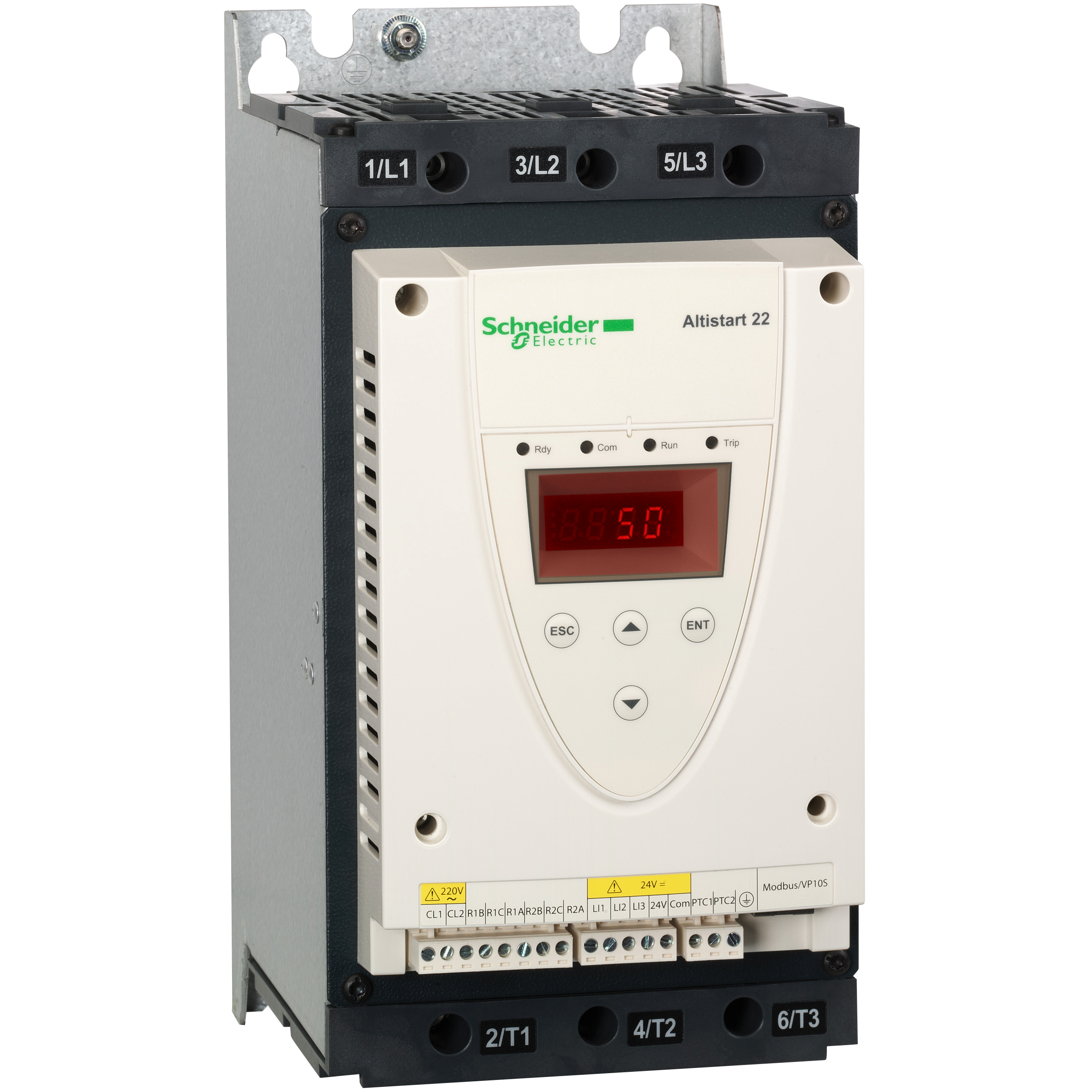

Square D™ Altistart® 22 Soft Starter, Internal Bypass, Series: ATS22, 208/600 VAC, 88 A, 50/60 Hz Frequency, 66 W Wattage, 25 hp Motor, 110 VAC Coil, 3 Pole, 3 ph, Plug-In Connection, IP20 Enclosure, -10 to 40 deg C Operating, 145 mm W x 207 mm D x 295 mm H Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=10896759360Den&ext=webp(360 Degree View URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ATS22D88S6U_2D.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_53FDN6Y91W4CBKQO.pdf(Install Instructions 1 URL)
- Brochure URL - 11003_C9XPMSHBGA4Q63U2.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ATS22D88S6U_2D.dwf(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Spec Sheet URL - 11003_L5ERGOF71498XYA2.pdf(Spec Sheet URL)
- Service Manual URL - 11003_IBZQV0L2WP1RT5SY.pdf(Service Manual URL)
- Tech Drawing URL - sales?sn=ATS22D88S6U(Tech Drawing URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- User Manual URL - 11003_8HMCBEY59AQDURTP.pdf(User Manual URL)
- Service Manual URL - 11003_9FWALXZ8EK62GI7C.pdf(Service Manual URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=ATS22_Quick_Start_Annex_S1A14738_07.pdf(User Manual URL)
- User Manual URL - 11003_TXKQGDC8FYBL7IJW.pdf(User Manual URL)
- Applications
- Features
| Asynchronous Motor, Centrifugal Pumps, Piston Pumps, Fans, Screw Compressors, Specialist Machinery, Material Handling Conveyors Applications |
| INTERNAL BYPASS |
| Adjustment of the Altistart® 22 soft start/soft stop unit current in-line with the motor nominal current |
| Management of the 3 supply phases |
| Variety of control profiles to suit different applications |
| Integrated and automated management of the bypass function at the end of starting (bypass contactor, while preserving electronic protection functions |
| Integrated configurable motor thermal protection |
| 25 hp at 208 VAC, 30 hp at 230 VAC, 60 hp at 460 VAC, 75 hp at 575 VAC, 60 hp at 460 VAC, 30 hp at 230 VAC, 25 hp at 208 VAC, 75 hp at 575 vac power rating |
