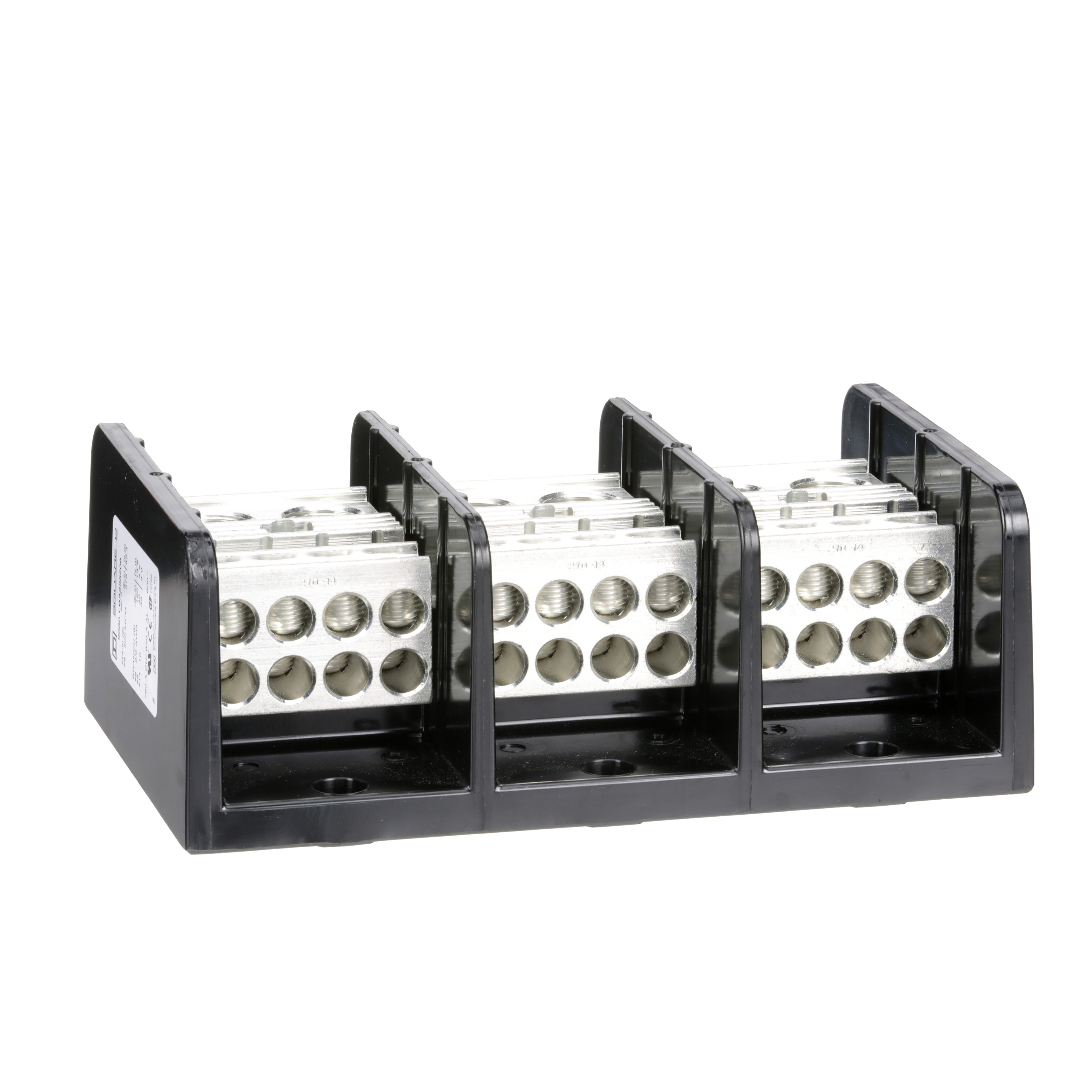

Square D™ 9080LBA365208 TeSys™ Power Distribution Block, 600 VAC, 760 A, 3 Poles, 4 AWG to 500 kcmil Wire, Phenolic
Starters
96524
MFG #: 9080LBA365208
Square D™
336.35000
/ ea
Square D 9080LBA365208 POWER DISTRIBUTION BLOCK 600V 760A,(2)#4 to 500 AWG/kcmil (8)#14 to #2/0 AWG,600 V AC,760A 620A,9080LB,9080LB53,General Purpose Phenolic,Lugs Tin Plated Aluminum,Power Distribution Block
- 360 Degree View URL - index.html?pid=11003&id=8019318360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=9080LBA365208(3D Rendering URL)
- Catalog URL - Schneider_Electric_9080LBA161101_Catalog.pdf(Catalog URL)
- Catalog 1 URL - Schneider_Electric_9080LBA161101_Catalog_1.pdf(Catalog 1 URL)
- Compliance Cert URL - Schneider_Electric_9080LBA365208_Compliance_Certificate.pdf(Compliance Cert URL)
- Brochure URL - e9db7cd0f86383283a3e4ff115b3774da5eb7d05.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Tech Drawing URL - 11003_NWDYJ5GZKUO6RT4C.zip(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_35IRS1VOZQLK2MC0.pdf(Spec Sheet URL)
- Install Instructions 1 URL - 11003_MNY324GSL1OU7FZ8.pdf(Install Instructions 1 URL)
- Applications
- Features
| 9080LB,9080LB53 |
| LUGS TIN PLATED ALUMINIUM,PHENOLIC BLOCK |
| Open Power Distribution Blocks |
| Available in a wide variety of sizes |
| These open power distribution blocks are available in one, two, and three pole versions. |
| They are available with either aluminum or copper lugs. |
| Many blocks have been tested to achieve SCCR up to 100 kA. |
| They are UL component recognized, CSA approved and RoHS compliant |
| A selection of covers completes this family |
| (2) Lug primary, (8) Lug secondary |
| Standard |
| 620 A/760 A |
