Square D™ 8536SDO1V06H30 Type S Magnetic Starter, 440 VAC at 50 Hz/480 VAC at 60 Hz V Coil, 3 Poles, Open Enclosure
NEMA Starters
1397825
MFG #: 8536SDO1V06H30
Square D™
1115.00000
/ ea

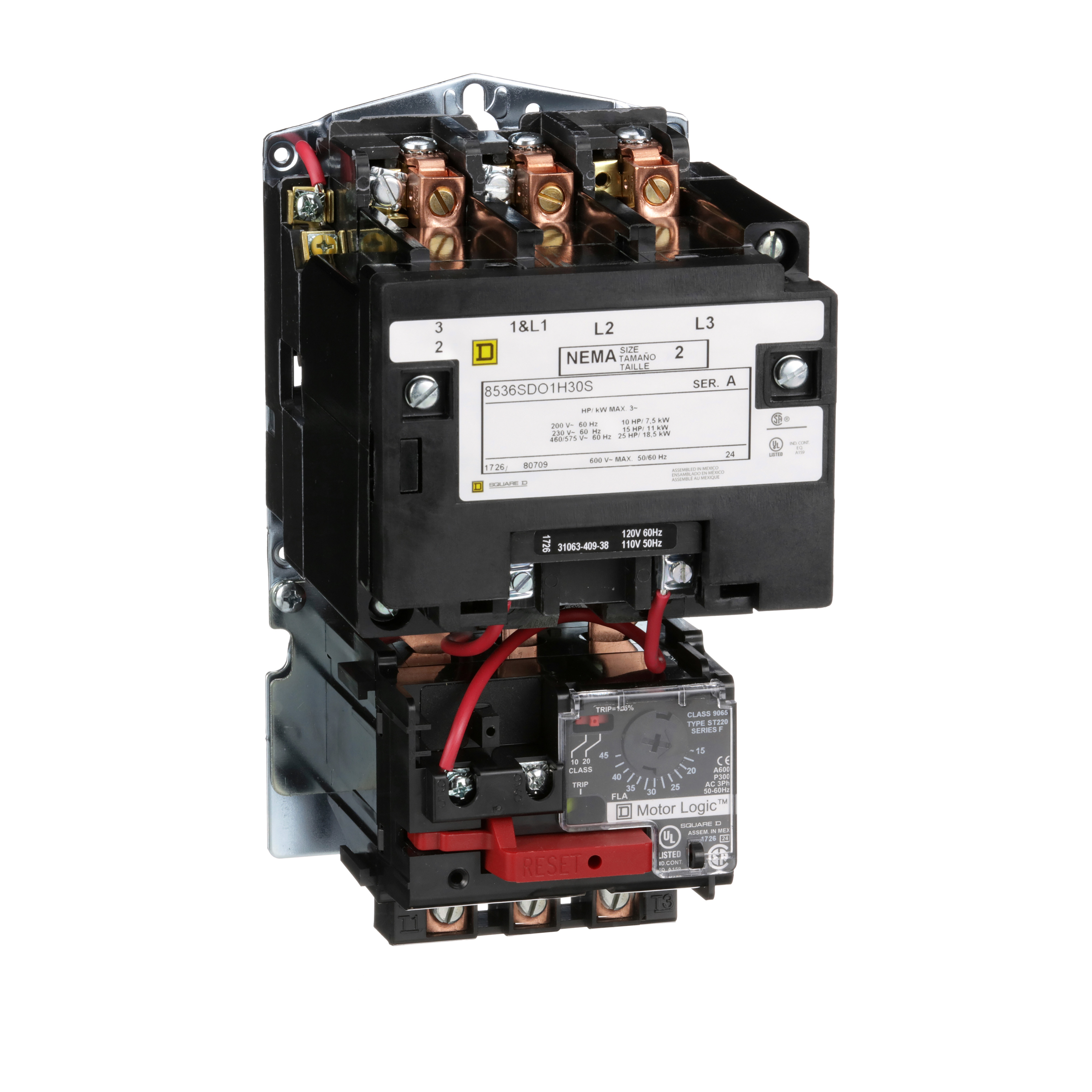

Square D™ Magnetic Starter, Type S, Series: 8536, 600 VAC, 45 A, 50/60 Hz Frequency, 7.5 kW at 200 VAC/11 kW at 230 VAC/18.5 kW at 460 VAC/18.5 kW at 575 VAC Wattage, 10 hp at 200 VAC/15 hp at 230 VAC/25 hp at 460/575 VAC Motor, 440 VAC at 50 Hz/480 VAC at 60 Hz Coil, 3 Pole, 3 ph ph, Screw Clamp Connection, Motor Logic™ Solid-State Overload Relay, Open Enclosure, 0 to 40 deg C Operating, 4.29 in W x 4.92 in D x 7.8 in H Dimensions
- 360 Degree View URL - index.html?pid=11003&id=8042414360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_Q3DJ6XGCRSHN7LFO.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=E0320501-01.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_ZO37E98IR5K4GWYD.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_SD1BEXY248MI6WQA.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_HJWRU1LXYM6TV5PF.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/MsloUt8sPL0(Video)
- Applications
- Features
Construction, Infrastructure, Industrial Markets, Commercial Office Buildings And Building Automation, Used For Starting and Stopping Of AC Squirrel Cage Motors |
Without pilot light |
Used for full voltage starting and stopping AC squirrel cage motors |
Ground fault detection and communication capabilities for future enhancement |
Ambient insensitive and features phase loss, phase unbalance and over-current protection and LED power indicator for quick detection |
H30 class 10/20 Motor Logic™ solid state |
NEMA 2 |
