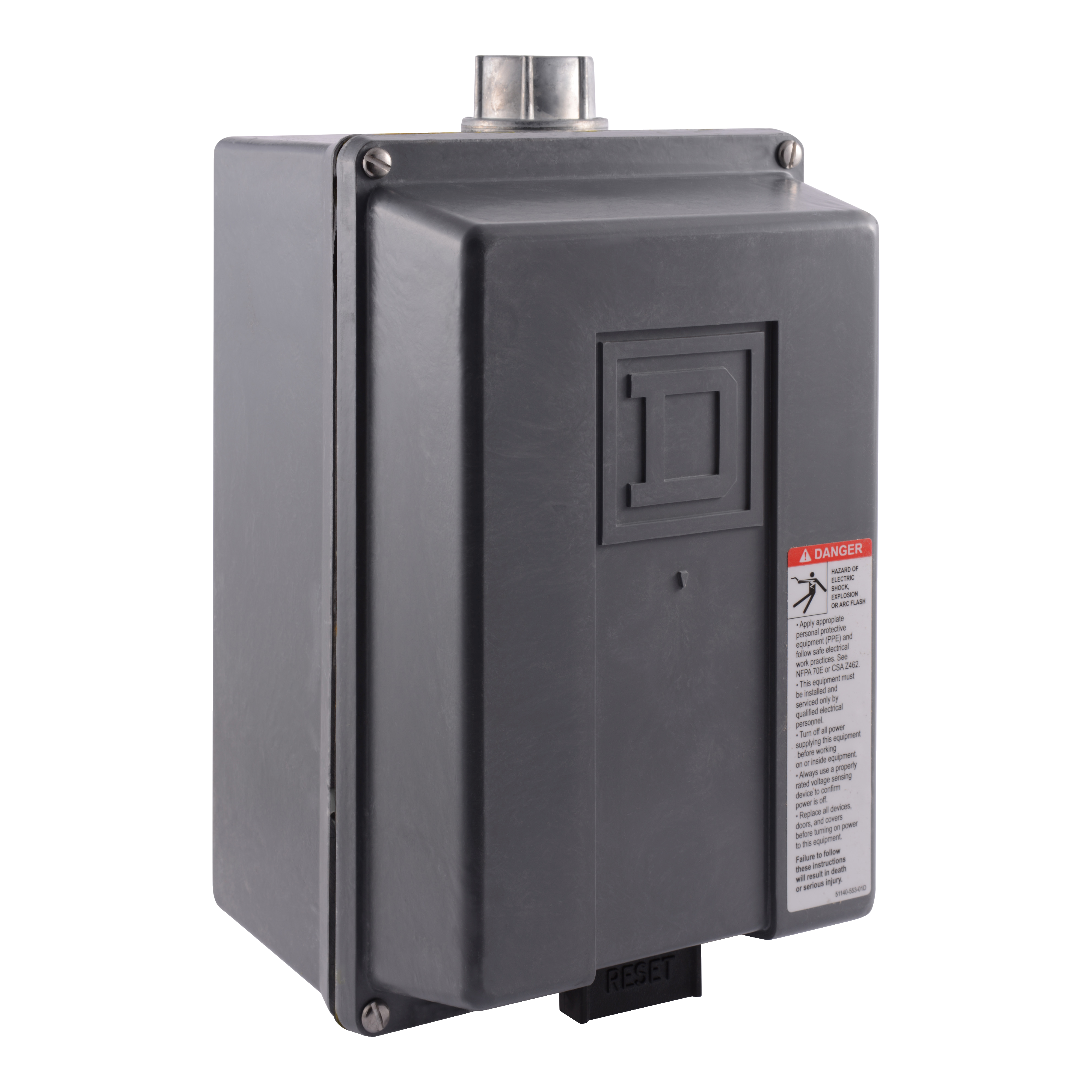

Square D™ 8536SBW22V02S STARTER 600VAC 18
Starters
294825
MFG #: 8536SBW22V02S
Square D™
1017.00000
/ ea
Square D 8536SBW22V02S STARTER 600VAC 18AMP NEMA +OPTIONS,0,120VAC60Hz - 110VAC50Hz,18 A,3-Phase,3HP200/230VAC - 5HP460/575VAC,3P,600VAC,NEMA 4/4X,Non-Reversing Starter,S,Screw Clamp,Thermal - Melting Alloy,UL Listed - CSA Certified,Used for Full-Voltage Starting and Stopping of AC Squirrel Cage Motors
- Brochure URL - 11003_Q3DJ6XGCRSHN7LFO.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_9aa2c308c6c64eeadd67861ceed28d46585a4dcd0225d98e5f489de68498bb16.pdf(Catalog URL)
- Install Instructions 1 URL - 11003_BH9FWRCY784JTSGZ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_X98VZOUPS10T4YGN.pdf(Spec Sheet URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_POUFVRQZH1KCXW92.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_TPY86N4GJOK3XMDF.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/HH4qt8sWnGI(Video)
- Applications
- Features
| USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS |
| SCREW CLAMP TERMINALS |
| Used for full voltage starting and stopping AC squirrel cage motors |
| NEMA type 4 and 4X water tight, dust tight brushed stainless steel enclosure |
| NEMA 0 |
