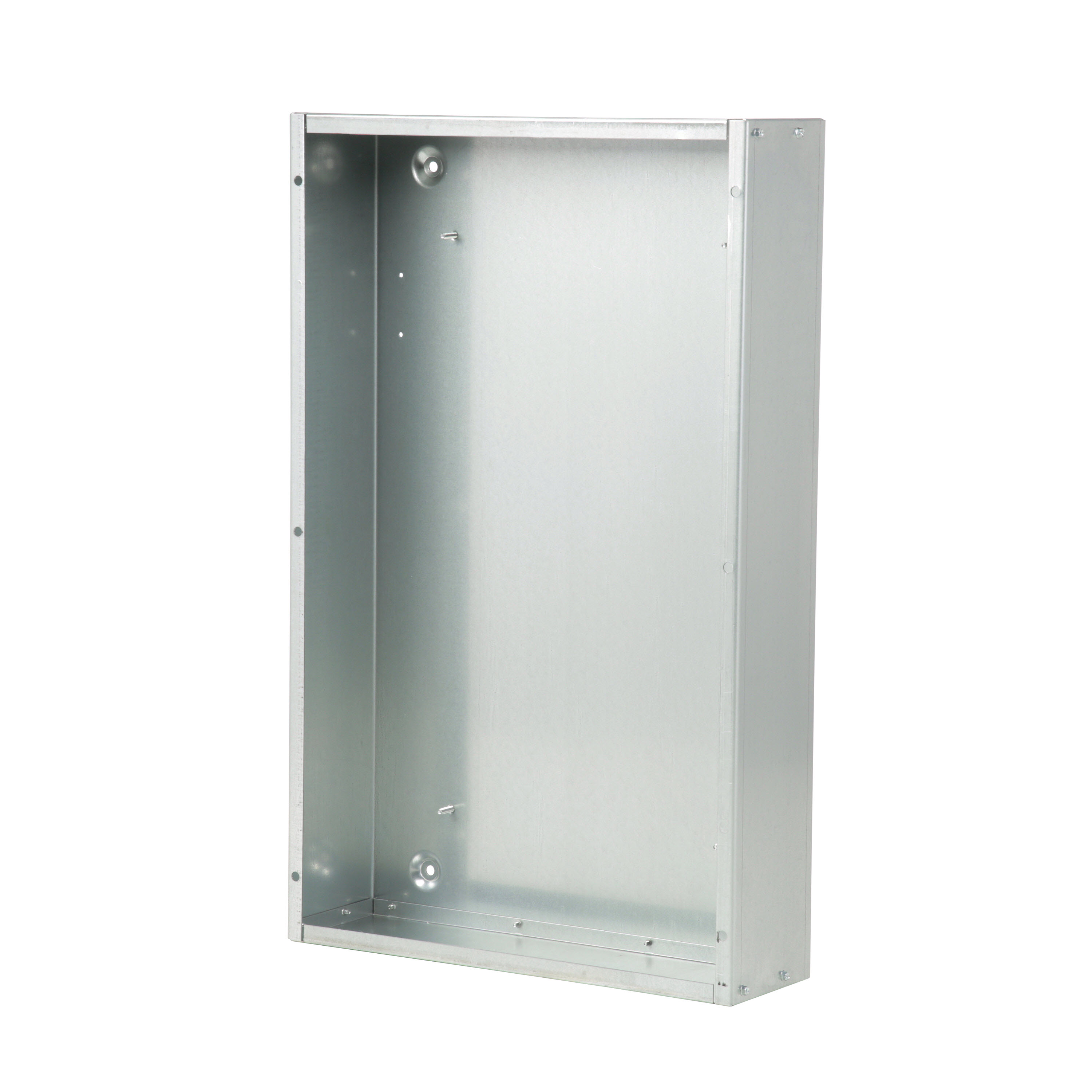

Siemens SpeedFax™ B32 Panelboard Box, 32 in H x 20 in W x 5-3/4 in D, NEMA 1
Panelboard Boxes
27614
MFG #: B32
Siemens
154.79000
/ ea
- Catalog URL - SIE_Selection_And_Application_Guide_Panelboards.pdf?05012022(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:B32&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:B32&language=en(Spec Sheet URL)
- Spec Sheet URL - SF17-11-037.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Video - https://digitalcontentcenter.compas.siemens-info.com/SIE_VI_UnassembledPanelboards.mp4(Video)
- Applications
- Features
| EnclosureforLightingPanels |
| Base box size requirements for P2 panels with standard line lugs, and fewer than 55 poles of 1 in module (BL, BQD, ED, xGB) branch breakers and provisions |
| Unit spaces range from 9 in to 45 in (in 6 in increments) |
| Boxes range from 26 in to 74 in high (in 6 in increments) |
| Inclusion of optional modifications may require size increases that must be added to these base values to calculate the final box size for the panel |
| Indoor enclosure |
| Without ground bus enclosure |
| For use with P2 Panelboard kit |
