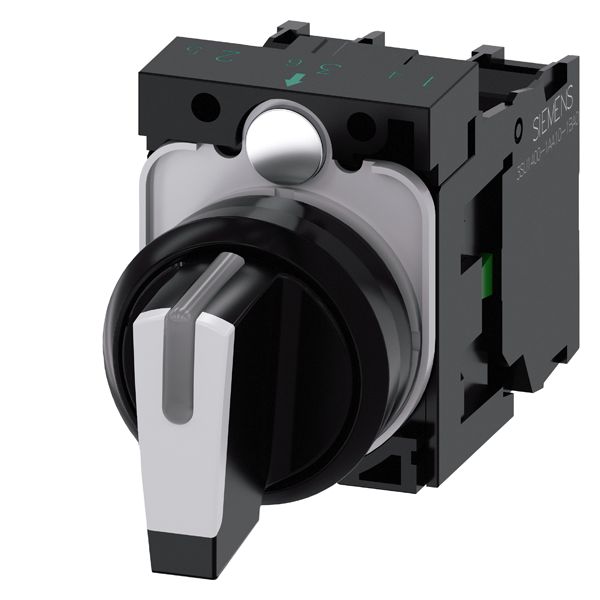

Siemens 3SU11002BL601NA0 Non-Illuminated Selector Switch, 22 mm, 2NO-2NC, Round Short Lever Operator, Black
Custom_Product_Images_Illustration
Siemens 3SU11002BL601NA0 Non-Illuminated Selector Switch, 22 mm, 2NO-2NC, Round Short Lever Operator, Black
SKU933797
MFGR #3SU11002BL601NA0
Your Cost: $39.50/ea
List: SIEMENS 3SU11002BL601NA0 SEL SW 3POS MTND SHORT HANDLE WHT
SIEMENS 3SU11002BL601NA0 SEL SW 3POS MTND SHORT HANDLE WHT
Alternate Catalog Number 3SU1100-2BL60-1NA0 ARRA Compliant C Buy American Compliant C Catalog Number 3SU11002BL601NA0 Connection Type Threaded Contact Mode Maintained Contact Rating 10 A at 500 VAC/VDC Country of Origin DE Currency USD Enclosure Type IP20/66/67/69/69K EU RoHS Indicator C Gross Volume Per Pack 1.00 Gross Volume UOM in Gross Weight Per Pack 0.1340 lb Gross Weight per Pack Metric 0.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509025 Height 0.5000 in Height [Metric] 1.2700 cm Length 2.0000 in Length [Metric] 5.0800 cm Material Plastic Mounting Type Surface Number of Positions 3 Returnable Y Standards ARRA, Buy American Act and RoHS Compliant, UL Listed, CSA, CE, CCC Certified, EAC Standard Throw 45 ° UNSPSC 39122217 UPC 11 80476607045 UPC 12 804766070457 Width 1.0000 in Width [Metric] 2.5400 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Color Black Contact Configuration 2NO-2NC Operator Type Round Short Lever Size 22 mm I-O-II latching Manner of function of the actuating element - latching, 2 x 45 deg (10:30 h/12 h/13:30 h) Design of the operating mechanism - selector switch, short black handle Product extension optional Light source Design of the contact of auxiliary contacts: silver alloy 32.3 mm OD of the actuating element Round shape of the installation opening Black front ring, white actuating element 45 deg actuating angle (cw), 45 deg actuating angle (acw) 50/60 Hz frequency rating Front plate mount
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3SU1100-2BL60-1NA0 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | 3SU11002BL601NA0 |
| Connection Type | Threaded |
| Contact Mode | Maintained |
| Contact Rating | 10 A at 500 VAC/VDC |
| Country of Origin | DE |
| Currency | USD |
| Enclosure Type | IP20/66/67/69/69K |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 1.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.1340 lb |
| Gross Weight per Pack Metric | 0.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509025 |
| Height | 0.5000 in |
| Height [Metric] | 1.2700 cm |
| Length | 2.0000 in |
| Length [Metric] | 5.0800 cm |
| Material | Plastic |
| Mounting Type | Surface |
| Number of Positions | 3 |
| Returnable | Y |
| Standards | ARRA, Buy American Act and RoHS Compliant, UL Listed, CSA, CE, CCC Certified, EAC Standard |
| Throw | 45 ° |
| UNSPSC | 39122217 |
| UPC 11 | 80476607045 |
| UPC 12 | 804766070457 |
| Width | 1.0000 in |
| Width [Metric] | 2.5400 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Color | Black |
| Contact Configuration | 2NO-2NC |
| Operator Type | Round Short Lever |
| Size | 22 mm |
| I-O-II latching |
| Manner of function of the actuating element - latching, 2 x 45 deg (10:30 h/12 h/13:30 h) |
| Design of the operating mechanism - selector switch, short black handle |
| Product extension optional Light source |
| Design of the contact of auxiliary contacts: silver alloy |
| 32.3 mm OD of the actuating element |
| Round shape of the installation opening |
| Black front ring, white actuating element |
| 45 deg actuating angle (cw), 45 deg actuating angle (acw) |
| 50/60 Hz frequency rating |
| Front plate mount |
