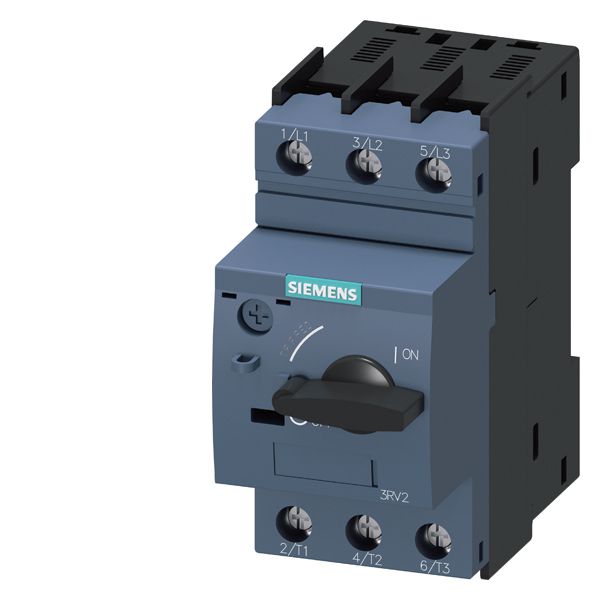

Siemens 3RV2021-4PA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 36 A, 3 kA Interrupt, 3 Poles
Motor Protection Circuit Breakers
800433
MFG #: 3RV20214PA10
Siemens
304.91000
/ ea
Siemens 3RV20214PA10 MSP S0 30-36A SCREW
- 3D Rendering URL - G_NSA0_XX_93064V.pdf(3D Rendering URL)
- Catalog 1 URL - Siemens_3RV20214PA10_Specification_Sheet.pdf(Catalog 1 URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=3RV2021-4PA10&language=en(Spec Sheet URL)
- Catalog URL - Siemens_3RV1021_0EA15_Catalog_1.pdf(Catalog URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| Used as Manual Motor Controller and in Group Installation |
| MSP?s are UL approved as Self Protected Combination Motor Controllers |
| Minimization of energy losses through optimization of the bimetal trip units |
| Reduction of inherent power loss |
| Less heating of the control cabinet |
| Smaller control cabinet air conditioners can be used |
| 3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks) |
| 7500 W at 230 VAC, 18500 W at 400 VAC, 22000 W at 500 VAC, 30000 W at 690 VAC |
| 100 kA at 240 VAC, 20 kA at 400 VAC, 6 kA at 500 VAC, 3 kA at 690 VAC |
| 30 to 36 A thermal overload release, 432 A instantaneous overcurrent release |
| Without auxiliary switch |
