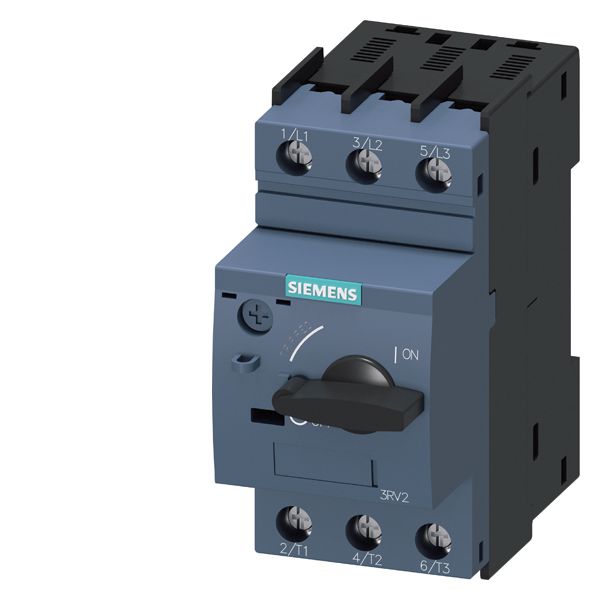

Siemens 3RV2011-0DA10 Type 3RV2 Motor Protection Circuit Breaker, 690 VAC, 0.32 A, 100 kA Interrupt, 3 Poles
Motor Protection Circuit Breakers
761186
MFG #: 3RV20110DA10
Siemens
104.40000
/ ea
Siemens 3RV20110DA10 MSP S00 0.22-0.32A SCREW
- 3D Rendering URL - G_NSA0_XX_93049V.pdf(3D Rendering URL)
- Catalog 1 URL - Siemens_3RV1021_0EA15_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - Siemens_3RV1021_0EA15_Catalog_1.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v1-3RV20110DA10.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_UHMBA3DOQS6RZY7N.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RV20110DA10&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RV2011-0DA10&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Video - https://www.youtube.com/embed/n2AKmVUVH7Y(Video)
- Applications
- Features
Used as Manual Motor Controller and in Group Installation |
MSP?s are UL approved as Self Protected Combination Motor Controllers |
Minimization of energy losses through optimization of the bimetal trip units |
Reduction of inherent power loss |
Less heating of the control cabinet |
Smaller control cabinet air conditioners can be used |
3RV2 motor starter protectors/circuit breakers are suitable for operation in IT systems (IT networks) |
40 W at 230 VAC, 90 W at 400 VAC, 120 W at 500 VAC, 120 W at 690 VAC |
100 kA at 240 VAC, 100 kA at 400 VAC, 100 kA at 500 VAC, 100 kA at 690 VAC |
0.22 to 0.32 A thermal overload release, 4.2 A instantaneous overcurrent release |
Without auxiliary switch |
