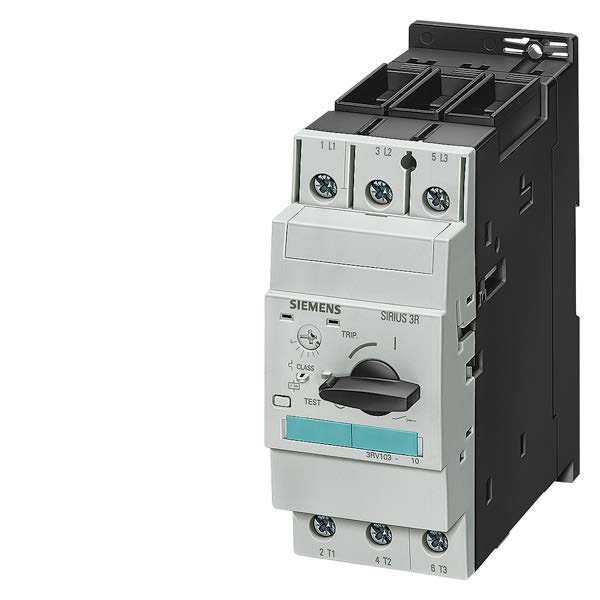

Siemens 3RV1031-4FA10 Type 3RV1 Motor Protection Circuit Breaker, 690 VAC, 40 A, 4 kA Interrupt, 3 Poles
Motor Protection Circuit Breakers
15424
MFG #: 3RV1031-4FA10
Siemens
416.64000
/ ea
SIEMENS 3RV1031-4FA10 SZ2 MAN CMB STRTR
- Brochure URL - SIRIUSSTART-E20001-A480-P302-X-7600_PWBR-30000-1103.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 3RV103__00000192_001_ALL.dxf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- User Manual URL - 4620199l.pdf(User Manual URL)
- Spec Sheet URL - 10991_3RV10314FA10_en.pdf(Spec Sheet URL)
- Features
| The 3RV1 molded case motor starter protectors up to 800 A are suitable solely for screw connection |
| The 3RV1 molded case motor starter protectors up to 800 A have not been tested for use with frequency converters |
| The possibility of premature tripping in such applications cannot therefore be ruled out |
| 18.5 kW at 400 VAC |
| 100 kA at 240 VAC, 50 kA at 400 VAC, 10 kA at 500 VAC, 4 kA at 690 VAC |
| 28 to 40 A thermal overload release, 520 A instantaneous overcurrent release |
| Without auxiliary switch |
