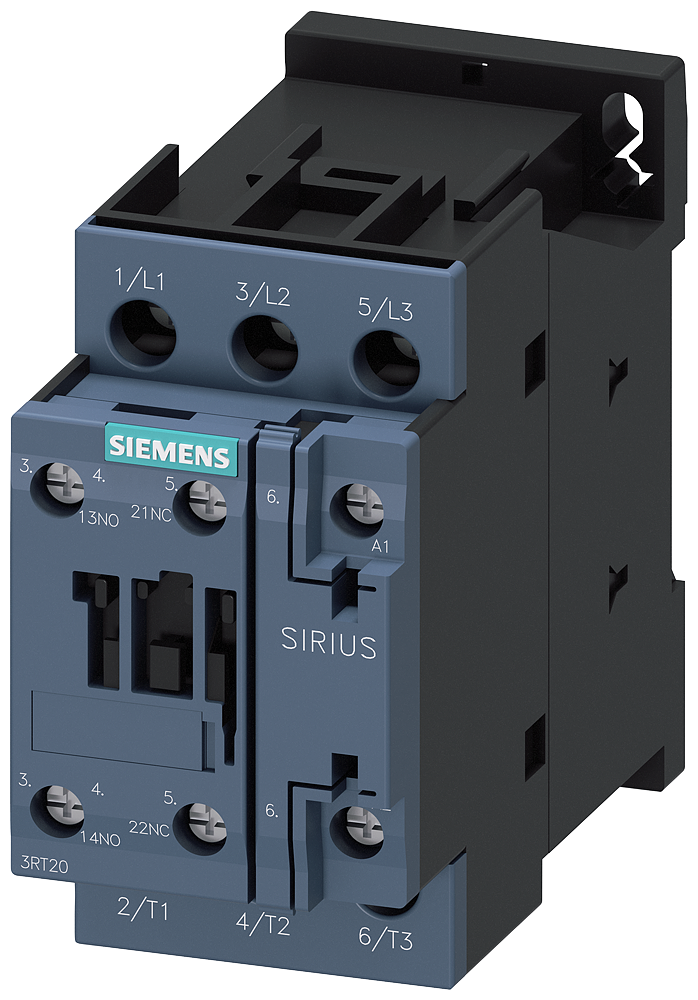

Siemens 3RT20241AP00 CONTACTOR S0 12A 230VAC 1NO/1NC SCRW
SKU1033096
MFGR #3RT20241AP00
Your Cost: $70.60/ea
List: CONTACTOR, AC-3, 5.5KW/400V, 1NO+1NC, AC 230V 50HZ, 3-POLE, SZ S0 SCREW TERMINAL
CONTACTOR, AC-3, 5.5KW/400V, 1NO+1NC, AC 230V 50HZ, 3-POLE, SZ S0 SCREW TERMINAL
Alternate Catalog Number 3RT2024-1AP00 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20241AP00 Coil Power Rating 7.6/65 VA Coil Voltage 230 VAC Contact Configuration 1NO-1NC Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 85 mm H x 45 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50 Hz Gross Volume Per Pack 32.32 Gross Volume UOM in Gross Weight Per Pack 1.0120 lb Gross Weight per Pack Metric 0.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 4.1800 in Height [Metric] 10.6172 cm Length 3.6300 in Length [Metric] 9.2202 cm Manufacturer Siemens Maximum Load Current 12 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 3 Operating Cycles 10000000 Operating Temperature -25 to 60 Power Factor 1.00 Replaced Catalog Number 3RT10241AP00 Returnable Y Size S0 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391314 UPC 12 662643913149 Wattage 5.5 kW Width 2.1300 in Width [Metric] 5.4102 cm 65 VA at 50 Hz (pick-up), 7.6 VA at 50 Hz (holding) magnet coil at AC 0.25 at 50 Hz (holding), 0.82 at 50 Hz (closing) power factor The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2024-1AP00 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20241AP00 |
| Coil Power Rating | 7.6/65 VA |
| Coil Voltage | 230 VAC |
| Contact Configuration | 1NO-1NC |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 45 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50 Hz |
| Gross Volume Per Pack | 32.32 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0120 lb |
| Gross Weight per Pack Metric | 0.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 4.1800 in |
| Height [Metric] | 10.6172 cm |
| Length | 3.6300 in |
| Length [Metric] | 9.2202 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 12 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 3 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Power Factor | 1.00 |
| Replaced Catalog Number | 3RT10241AP00 |
| Returnable | Y |
| Size | S0 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedC-TickCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391314 |
| UPC 12 | 662643913149 |
| Wattage | 5.5 kW |
| Width | 2.1300 in |
| Width [Metric] | 5.4102 cm |
| 65 VA at 50 Hz (pick-up), 7.6 VA at 50 Hz (holding) magnet coil at AC |
| 0.25 at 50 Hz (holding), 0.82 at 50 Hz (closing) power factor |
| The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface |
| 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC |
