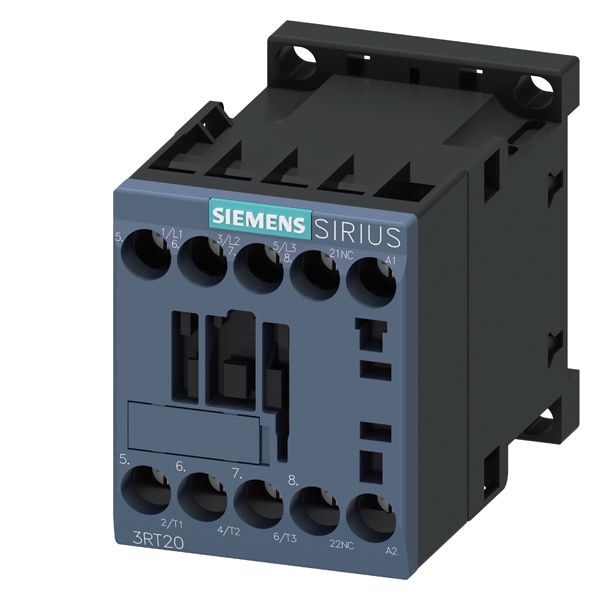

Siemens 3RT20171AB02 CONTACTOR S00 12A 24VAC 1NC SCRW
SKU880578
MFGR #3RT20171AB02
Your Cost: $80.46/ea
List: SIEMENS 3RT20171AB02 CONTACTOR S00 12A 24VAC 1NC SCRW
SIEMENS 3RT20171AB02 CONTACTOR S00 12A 24VAC 1NC SCRW
Alternate Catalog Number 3RT2017-1AB02 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT20171AB02 Coil Power Rating 4.4/5.7/33/37 VA Coil Voltage 24 VAC Contact Configuration 1NC Contact Rating A600/Q600 Contact Type Auxiliary Country of Origin DE Currency USD Dimensions 58 mm H x 45 mm W x 73 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 15.84 Gross Volume UOM in Gross Weight Per Pack 0.6200 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536410045 Height 2.4000 in Height [Metric] 6.0960 cm Length 3.3000 in Length [Metric] 8.3820 cm Manufacturer Siemens Maximum Load Current 12 A Mounting Type DIN Rail/Snap-On/Threaded Number of Auxiliary Contacts 1 Number Of Poles 3 Operating Cycles 30000000 Operating Temperature -25 to 60 Replaced Catalog Number 3RT1017-1AB02 Returnable Y Size S00 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved Stock Status NONSTOCK Terminal Type Screw Type Standard UNSPSC 39121529 UPC 11 66264391093 UPC 12 662643910933 Wattage 5.5 kW Width 2.0000 in Width [Metric] 5.0800 cm 37 VA at 50 Hz/33 VA at 60 Hz (pick-up), 5.7 VA at 50 Hz/4.4 VA at 60 Hz (holding) magnet coil at AC 0.25 at 50/60 Hz (holding), 0.8 at 50 Hz/0.75 at 60 Hz (closing) power factor The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2017-1AB02 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT20171AB02 |
| Coil Power Rating | 4.4/5.7/33/37 VA |
| Coil Voltage | 24 VAC |
| Contact Configuration | 1NC |
| Contact Rating | A600/Q600 |
| Contact Type | Auxiliary |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 15.84 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6200 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536410045 |
| Height | 2.4000 in |
| Height [Metric] | 6.0960 cm |
| Length | 3.3000 in |
| Length [Metric] | 8.3820 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 12 A |
| Mounting Type | DIN Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 1 |
| Number Of Poles | 3 |
| Operating Cycles | 30000000 |
| Operating Temperature | -25 to 60 |
| Replaced Catalog Number | 3RT1017-1AB02 |
| Returnable | Y |
| Size | S00 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE Approved |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Standard |
| UNSPSC | 39121529 |
| UPC 11 | 66264391093 |
| UPC 12 | 662643910933 |
| Wattage | 5.5 kW |
| Width | 2.0000 in |
| Width [Metric] | 5.0800 cm |
| 37 VA at 50 Hz/33 VA at 60 Hz (pick-up), 5.7 VA at 50 Hz/4.4 VA at 60 Hz (holding) magnet coil at AC |
| 0.25 at 50/60 Hz (holding), 0.8 at 50 Hz/0.75 at 60 Hz (closing) power factor |
| The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface |
| 3 hp at 200/208 VAC and 220/230 VAC, 7-1/2 hp at 460/480 VAC, 10 hp at 575/600 VAC |
