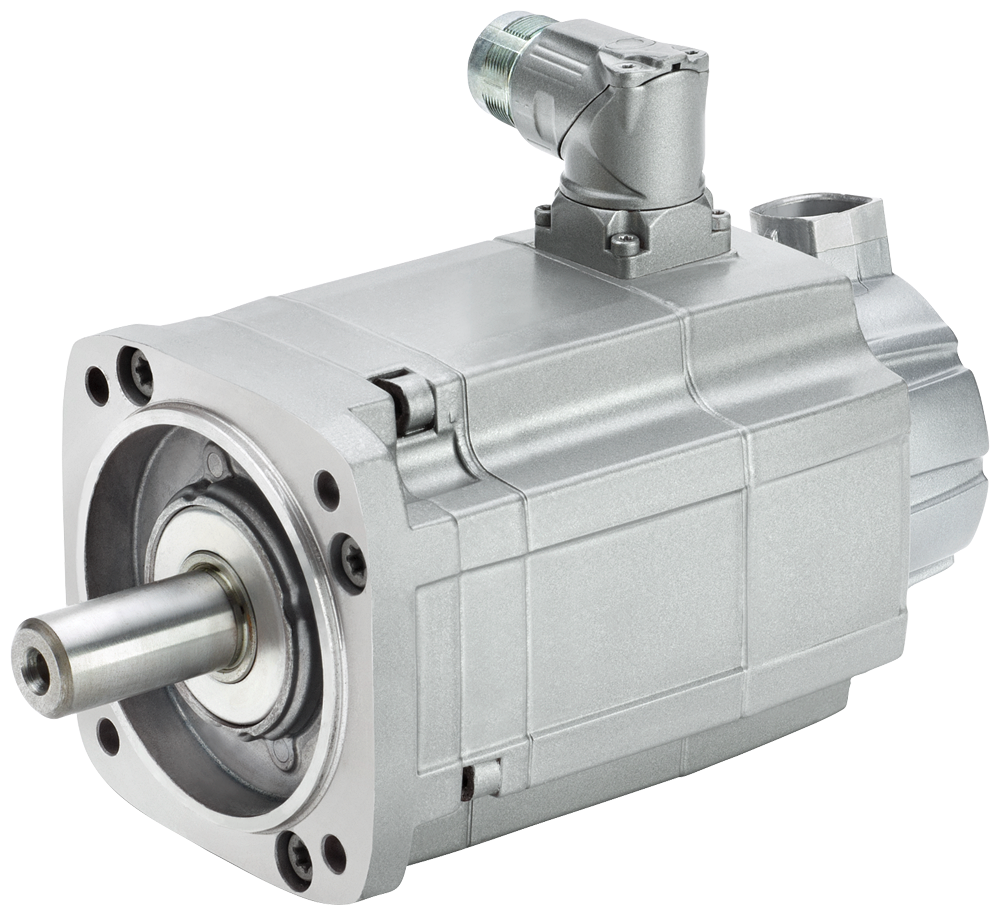

Siemens 1FT70861AF701FH1 SVMTR,28NM,300
SKU471931
MFGR #1FT70861AF701FH1
Your Cost: $7,209.55/ea
List: SYNCHRONOUS MOTOR 1FT7 28 NM (100K), 3000 RPM NATURAL AIR COOLING POWER CONNECTOR ROTATABLE 270 DEGREE VIBRATION SEVERITY GRADE A PROTECTION CLASS IP 65 FRAME SIZE IMB 5 (IM V1, IM V3) FLANGE 0 ABSOLUTE ENCODER 22 BITS MULTI TURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM-22-DQ) CONNECTOR ROTATABLE 270 DEGR. PLAIN SHAFT, WITH HOLDING BRAKE, ACCURACY TOLERANCE N
SYNCHRONOUS MOTOR 1FT7 28 NM (100K), 3000 RPM NATURAL AIR COOLING POWER CONNECTOR ROTATABLE 270 DEGREE VIBRATION SEVERITY GRADE A PROTECTION CLASS IP 65 FRAME SIZE IMB 5 (IM V1, IM V3) FLANGE 0 ABSOLUTE ENCODER 22 BITS MULTI TURN WITH DRIVE-CLIQ INTERFACE (ENCODER AM-22-DQ) CONNECTOR ROTATABLE 270 DEGR. PLAIN SHAFT, WITH HOLDING BRAKE, ACCURACY TOLERANCE N
Alternate Catalog Number 1FT7086-1AF70-1FH1 ARRA Compliant C Bearing Type Ball Buy American Compliant C Catalog Number 1FT70861AF701FH1 Country of Origin DE Currency USD Dimensions 155 mm W Enclosure Type IP65 EU RoHS Indicator C Gross Volume Per Pack 6324.02 Gross Volume UOM in Gross Weight Per Pack 67.4600 lb Gross Weight per Pack Metric 30.60 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501524000 Height 17.0000 in Height [Metric] 43.1800 cm Insulation Class Class F Length 31.0000 in Length [Metric] 78.7400 cm Material ABS Returnable N Series 1FT7 Shaft Size 32 mm Dia x 58 mm L Standards CE CertifiedcULus ListedDIN 748-3/42955EN/IEC 60034-1/60034-7/60034-5/60034-11EU ListedIEC 60072-1)RoHS CompliantUL RecognizedWEEE Listed Temperature Rating 40 °C Torque Rating 18 N-m Rated/28 N-m Static Type 10-Pole Core Compact Natural Cooling UNSPSC 26101109 UPC 11 66264335857 UPC 12 662643358575 Width 12.0000 in Width [Metric] 30.4800 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 11 A Rated/15.5 A Static Frame 80 Horsepower 7.58 hp Mounting Type Flange Speed 3000 rpm Synchronous AC Motors High concentricity quality and low torque ripple for best possible surface finish on the workpiece Short non-productive times due to high dynamic performance High overload capability Compact design High degree of protection Sturdy, vibration isolated encoder mounting Easy encoder replacement on site without alignment Quick and easy mounting due to cross profile Rotatable connectors with quick release lock New flange design with set back flange surface particularly suitable for toothed belt output and IMV3 type of construction Extremely high efficiency Machines with stringent requirements in terms of dynamic response and precision Motors are painted in the standard color pearl dark gray (RAL9023) IMB5 (IMV1, IMV3) type construction Tolerance N shaft and flange accuracy Plain shaft Grade A vibration magnitude
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 1FT7086-1AF70-1FH1 |
| ARRA Compliant | C |
| Bearing Type | Ball |
| Buy American Compliant | C |
| Catalog Number | 1FT70861AF701FH1 |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 155 mm W |
| Enclosure Type | IP65 |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 6324.02 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 67.4600 lb |
| Gross Weight per Pack Metric | 30.60 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501524000 |
| Height | 17.0000 in |
| Height [Metric] | 43.1800 cm |
| Insulation Class | Class F |
| Length | 31.0000 in |
| Length [Metric] | 78.7400 cm |
| Material | ABS |
| Returnable | N |
| Series | 1FT7 |
| Shaft Size | 32 mm Dia x 58 mm L |
| Standards | CE CertifiedcULus ListedDIN 748-3/42955EN/IEC 60034-1/60034-7/60034-5/60034-11EU ListedIEC 60072-1)RoHS CompliantUL RecognizedWEEE Listed |
| Temperature Rating | 40 °C |
| Torque Rating | 18 N-m Rated/28 N-m Static |
| Type | 10-Pole Core Compact Natural Cooling |
| UNSPSC | 26101109 |
| UPC 11 | 66264335857 |
| UPC 12 | 662643358575 |
| Width | 12.0000 in |
| Width [Metric] | 30.4800 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 11 A Rated/15.5 A Static |
| Frame | 80 |
| Horsepower | 7.58 hp |
| Mounting Type | Flange |
| Speed | 3000 rpm |
| Synchronous AC Motors |
| High concentricity quality and low torque ripple for best possible surface finish on the workpiece |
| Short non-productive times due to high dynamic performance |
| High overload capability |
| Compact design |
| High degree of protection |
| Sturdy, vibration isolated encoder mounting |
| Easy encoder replacement on site without alignment |
| Quick and easy mounting due to cross profile |
| Rotatable connectors with quick release lock |
| New flange design with set back flange surface particularly suitable for toothed belt output and IMV3 type of construction |
| Extremely high efficiency |
| Machines with stringent requirements in terms of dynamic response and precision |
| Motors are painted in the standard color pearl dark gray (RAL9023) |
| IMB5 (IMV1, IMV3) type construction |
| Tolerance N shaft and flange accuracy |
| Plain shaft |
| Grade A vibration magnitude |
