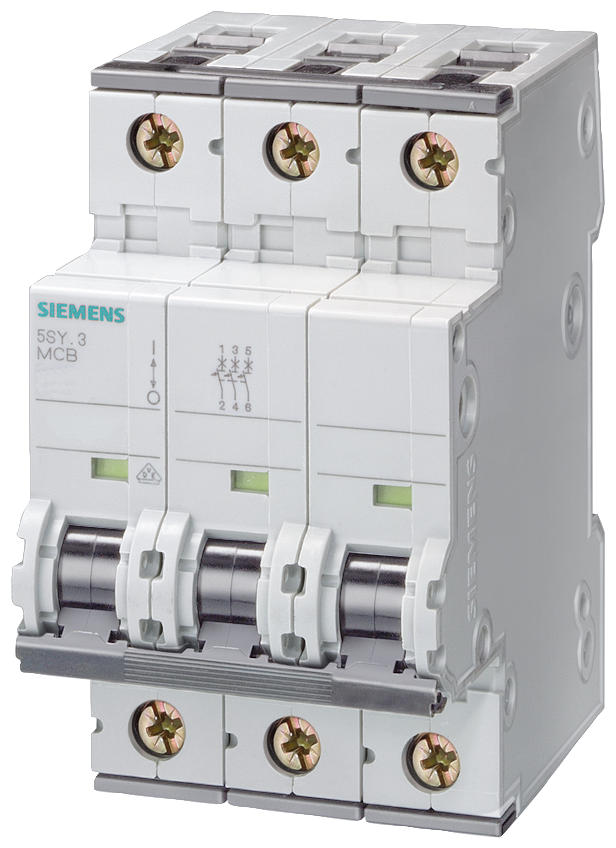

Sentron™ 5SY4306-5 5SY43065 Type A Characteristic Supplementary Protector, 400 VAC, 6 A, 10 kA Interrupt, 3 Poles
Supplementary Protectors
1011089
MFG #: 5SY4306-5
Siemens
107.85000
/ ea
Sentron™ Supplementary Protector, Series Type A Characteristic, Voltage Rating, Amperage Rating 400 VAC, Power Rating 6 A, Frequency Rating, Interrupt Rating 50/60 Hz, Frame 10 kA, Trip Type, Trip Range Thermal Magnetic, Number of Poles 1.13 to 1.45 A Thermal/2 to 3 A Magnetic, Phase 3, Actuator Type, Connection Type, Auxiliary Contact Rating Screw, Wire Size, Insulation Type 14 to 4 AWG, Enclosure Type, Mounting Type IP20, Temperature Rating DIN Rail, Dimensions -25 to 55 deg C, Material 90 mm H x 54 mm W x 76 mm D, Color, Finish, Type ADDITIONAL DETAILS
- 3D Rendering URL - G_I202_XX_18134V.pdf(3D Rendering URL)
- Brochure URL - IC_Section_12_pages_9_to_10.pdf(Brochure URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - 10991_BISY7VU56WFN1PCQ.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=5SY4306-5&language=en(Spec Sheet URL)
- Spec Sheet URL - Siemens_5SY43065_Datasheet.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Video - https://www.youtube.com/embed/NkSiw3nWIJg(Video)
- Applications
- Features
SUPPLEMENTARY PROTECTION |
Type A characteristic is de-signed to protect very sensi-tive circuits such as semiconductors. Magnetic trip point - 2 to 3 timesIn rat-ing. Thermal trip point - 1.13 to 1.45 protector rating. |
Type A characteristic is designed to protect very sensitive circuits such as semi-conductors |
Identical wire screw connections on line and load side |
70 mm D installation |
Quick-assembly system mounting |
