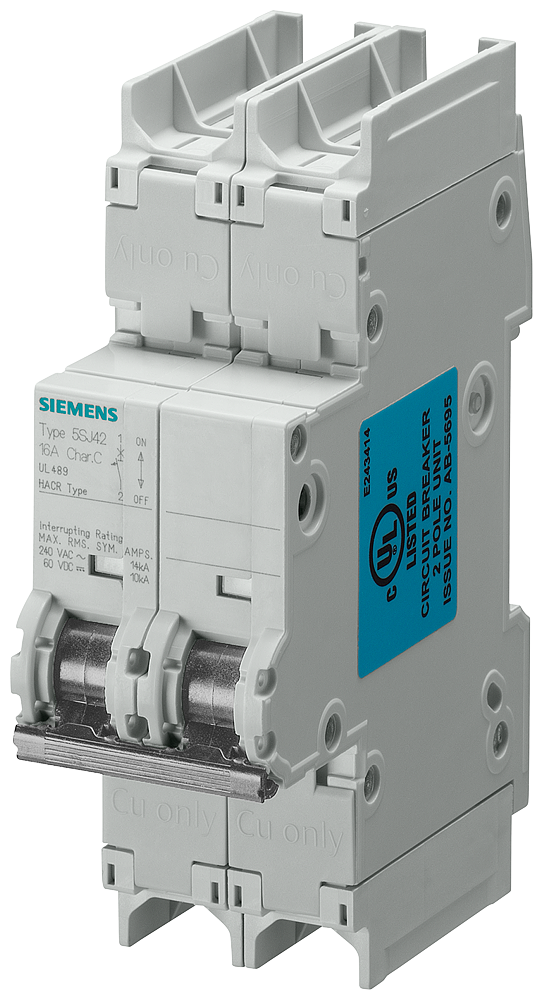

Sentron™ 5SJ42187HG41 Miniature Circuit Breaker, 240 VAC/125 VDC, 15 A, 14 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Miniature Circuit Breakers
528222
MFG #: 5SJ42187HG41
Siemens
114.17000
/ ea
SIEMENS 5SJ42187HG41 MCB UL489 2-POLE 15A C-TRIP TYPE HSJ
- 3D Rendering URL - G_I202_XX_18190V.pdf(3D Rendering URL)
- Brochure URL - 5SJ4_HG4CatPgs090113.pdf(Brochure URL)
- Catalog URL - Siemens_5SY6110_6_Catalog.pdf(Catalog URL)
- Catalog 2 URL - Siemens_5SY6110_6_Catalog.pdf(Catalog 2 URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Catalog 1 URL - Siemens_5SJ4132_7HG42_Catalog_1.pdf(Catalog 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=5SJ4218-7HG41&language=en(Spec Sheet URL)
- Spec Sheet URL - IC14_Sect15_010115.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=5SJ4218-7HG41&language=en(Spec Sheet URL)
- Spec Sheet URL - 10991_6VQTILOJWZ5G8B3N.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| BRANCH CIRCUIT PROTECTORS |
| 2-POLE |
| 40 deg C calibration base (industrial applications) |
| Can be used for field wiring applications, 14 to 4 AWG, copper only |
| C-trip is designed for general device protection in control circuits and all other miniature circuit breaker systems, magnetic trip point is 5 to 10 times the MCB rating |
| 0.75 to 35 sq-mm solid and stranded conductors |
| Visible indicator for ON and OFF/trip |
| Touch protection to EN50274 |
| Identical wire screw connections on line and load side |
| Smaller size than traditional MCCBs |
| 35 mm DIN rail mounting |
