SensorSwitch™ WSX PDT Wallstation Decorator Wall Switch Sensor With Convertible Neutral, 120 to 277 VAC, 20 ft Coverage
Wall Mount Occupancy Sensors
1004313
MFG #: WSXPDTGY
SensorSwitch™
80.55000
/ ea

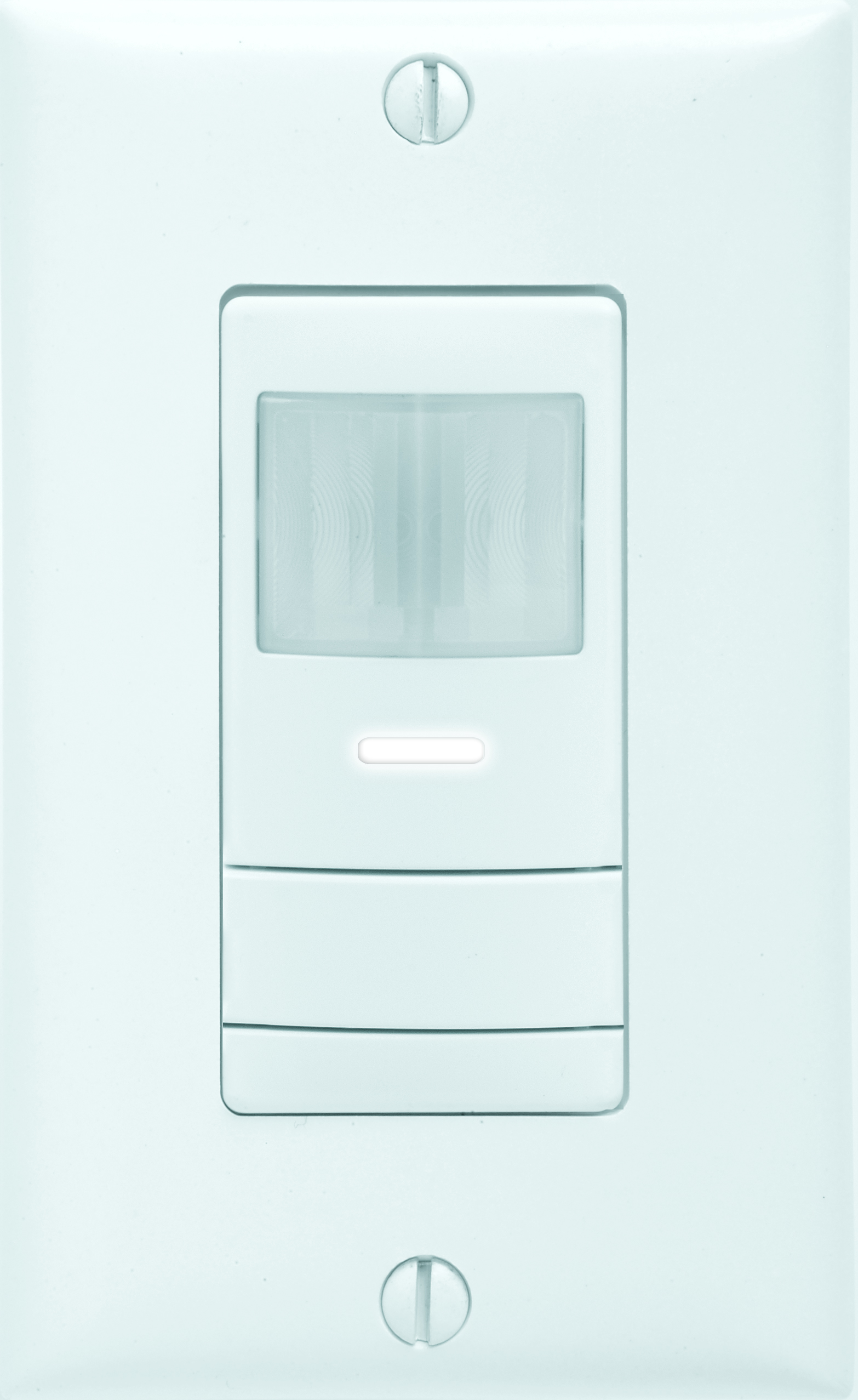

Acuity Brands® Wall Switch Sensor, Wallstation Decorator, Series: WSX PDT, 120 to 277 VAC, Passive Infrared/Microphonics™ Dual Technology Sensor, 20 ft Coverage, 180 deg Viewing, 50/60 Hz Response, Wire, Automatic On Control Output, Wall Mount, 14 to 122 deg F, Plastic, Gray, 2.74 in H x 1.68 in W x 1.63 in D
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_V58CTN7EISQXGL2K.pdf(Install Instructions 1 URL)
- Spec Sheet URL - wsx-family_pdf.pdf(Spec Sheet URL)
- Spec Sheet URL - 10988_WQ8G0BC2DTLUNA4O.pdf(Spec Sheet URL)
- Spec Sheet URL - 10988_ID-SPE-v1-wsx-family_pdf.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10988_9F1Z7PHCKULT2WGD.pdf(Tech Bulletin URL)
- Wiring Diagram URL - 10988_KDN8J3HVABQ752W4.pdf(Wiring Diagram URL)
- Video - https://www.youtube.com/embed/gmMrmQMY3Eo(Video)
- Warranty URL - terms-and-conditions(Warranty URL)
- Applications
- Features
| Closet/Storage Room, Conference Room, Corridor, Hotel, Open Office, Private Office, Restroom, Stairwell |
| PRODUCT OVERVIEW The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds. All WSX Family sensors utilize 100% digital Passive Infrared (PIR) detection. Dual Technology (PDT option) versions add Microphonics detection and are recommended for offices and rooms with obstructions. Additional versions include units with dual relays - perfect for bi-level applications, and units with an integrated nightlight - perfect for restrooms and residential applications. |
| Compatible with LEDs, electronic and magnetic ballasts, CFLs and incandescents |
| 100% passive detection, no potential for interference with other building systems |
| Small motion detection to 20 ft |
| Push button programmable without removing cover plate adjustable time delays and operating modes |
| Dual technology (PDT) utilizes PIR/Microphonics™ detection (patented) |
| Self grounding mounting strap |
| Device accomodates powering over ground or neutral connection (patent pending) |
| Ultra low current leakage (<0.5 mA) when connected via ground |
| Fully meets NEC 2011 section 404.2C neutral requirements no current leakage to ground when connected to neutral |
| Line power and load wires are interchangeable impossible to wire backwards (patented) |
| Vandal resistant lens |
| Rectangular shape |
| Gloss finish |
| Standard temperature/humidity |
