Schneider ElectricAltivar 71 ATV71HU55N4 Variable Speed Drive, 380/480 VAC, 14.3 A, 7.5 hp, 6.89 in W x 7.36 in D
AC Drives
428368
MFG #: ATV71HU55N4
Schneider Electric
2418.13000
/ ea

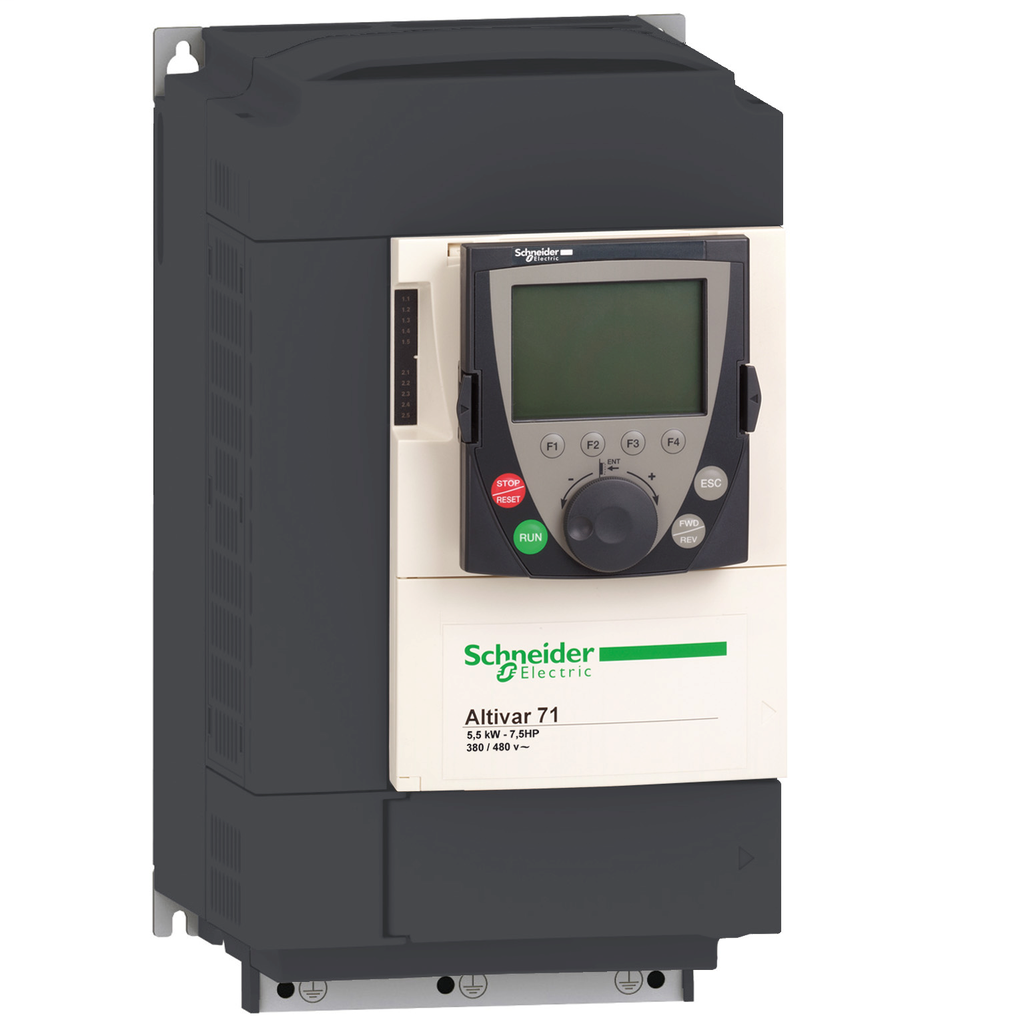

Schneider Electric ATV71HU55N4 SPEED DRIVE, 7.5HP, 460V, ATV71,3 phases,3-Phase,3-Phase,400/480VAC,5.5kW,Altivar 71,Altivar 71,IP20,Modbus-CANopen,Modbus-CANopen,complex, high-power machines,variable speed drive
- Brochure URL - 343f3cf8a7c08e74123cc519e3ac6d60ed1fda99.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_2fd08ee500428af679e6a483bd90a358f4d5d4a1f7b67a205ddf01d827485c20.pdf(Catalog URL)
- Spec Sheet URL - 882f955e806b832aafe589c42722349f75096627.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Owners Manual URL - Schneider_Electric_ATV61HC11N4_Manual.pdf(Owners Manual URL)
- Computer~Aided [CAD|BIM] Model URL - 951f94dac89fca568b4e0bbeb99ea0147bace270.pdf(Computer~Aided [CAD|BIM] Model URL)
- Tech Drawing URL - 62552506b173d68af0398fc3fc8e24192b1b6d08(Tech Drawing URL)
- Tech Bulletin URL - 7855e2dbfa3f9603a0a01e5c645d9054a3e16ebe.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/kjZi4PAjANU(Video)
- User Manual URL - 89d1333205d08274650a7939d5833cc950c2f599.pdf(User Manual URL)
- Applications
- Features
| 5.5 KW, 3 PHASE 380...480 V,7.5 HP, 3 PHASE 380...480 V,COMPLEX, HIGH-POWER MACHINES,SYNCHRONOUS MOTORS-ASYNCHRONOUS MOTORS |
| ADJUSTABLE PI REGULATOR,AGAINST EXCEEDING LIMIT SPEED DRIVE-SHORT-CIRCUIT BETWEEN MOTOR PHASES DRIVE-THERMAL PROTECTION DRIVE-MOTOR PHASE BREAK MOTOR-POWER REMOVAL MOTOR-THERMAL PROTECTION MOTOR-AGAINST INPUT PHASE LOSS DRIVE-BREAK ON THE CONTROL CIRCUIT DRIVE-INPUT PHASE BREAKS DRIVE-LINE SUPPLY OVERVOLTAGE DRIVE-LINE SUPPLY UNDERVOLTAGE DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH DRIVE-OVERHEATING PROTECTION DRIVE-OVERVOLTAGES ON THE DC BUS DRIVE,INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (1 TO 10 KOHM) 10.5 V DC +/- 5 , <10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY 24 V DC 21-27 V), <200 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION,SENSORLESS FLUX VECTOR CONTROL (SFVC) (VOLTAGE OR CURRENT VECTOR)-VOLTAGE/FREQUENCY RATIO (2 OR 5 POINTS)-ENA (ENERGY ADAPTATION) SYSTEM FOR UNBALANCED LOADS-FLUX VECTOR CONTROL (FVC) WITH SENSOR (CURRENT VECTOR),TERMINAL 2.5 MMA², AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)-TERMINAL 6 MMA², AWG 8 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, PA/+, PA, PB) |
| Frequency inverters for 3-phase synchronous and asynchronous motors |
| Speed regulation by flux vector control with or without sensor |
| Protection of motor and of drive |
| Exceptional performance, advanced functions |
| Altivar® 71 provides ingenious solutions for all your particular requirements |
| Integrated EMC filter Class A |
| Constant torque |
| Graphic terminal plain text, navigation button, configurable function keys, "Simply Start" menu |
| Modbus, CANopen communication port protocol |
| 1 to 1000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode speed range |
