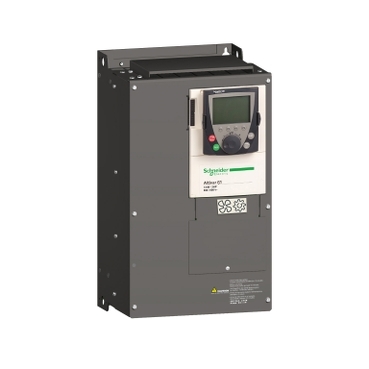

Schneider ElectricAltivar 61 ATV61HD22N4 Variable Speed Drive, 380/480 VAC, 48 A, 30 hp, 9.45 in W x 9.29 in D
AC Variable Frequency Drives
380523
MFG #: ATV61HD22N4
Schneider Electric
3660.71000
/ ea
Schneider Electric ATV61HD22N4 SPEED DRIVE,30HP,460V,ATV61,22kW,3 phases,3-Phase,3-Phase,400/480VAC,Altivar 61,Altivar 61,IP20,Modbus-CANopen,Modbus-CANopen,pumping and ventilation machine,variable speed drive
- Catalog URL - IDW_DOCUMENT_cc5d7bfefd7aed295864c73681b441e14f3ba44ab641072619ff69c1c2239f20.pdf(Catalog URL)
- Compliance Cert URL - Schneider_Electric_ATV61HD22N4_Compliance_Certificate.pdf(Compliance Cert URL)
- Tech Drawing URL - ATV61_71_FRAME_SIZE_6(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Owners Manual URL - Schneider_Electric_ATV61HC11N4_Manual.pdf(Owners Manual URL)
- Spec Sheet URL - ATV61HD22N4(Spec Sheet URL)
- Video - https://www.youtube.com/embed/mP6r9wvxutY(Video)
- Features
| AGAINST EXCEEDING LIMIT SPEED DRIVE-POWER REMOVAL DRIVE-SHORT-CIRCUIT BETWEEN MOTOR PHASES DRIVE-THERMAL PROTECTION DRIVE-MOTOR PHASE BREAK MOTOR-POWER REMOVAL MOTOR-THERMAL PROTECTION MOTOR-AGAINST INPUT PHASE LOSS DRIVE-BREAK ON THE CONTROL CIRCUIT DRIVE-INPUT PHASE BREAKS DRIVE-LINE SUPPLY OVERVOLTAGE DRIVE-LINE SUPPLY UNDERVOLTAGE DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH DRIVE-OVERHEATING PROTECTION DRIVE-OVERVOLTAGES ON THE DC BUS DRIVE,FREQUENCY PI REGULATOR,INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (1 TO 10 KOHM) 10.5 V DC, +/- 5 , <10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY 24 V DC 21-27 V), <200 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-EXTERNAL SUPPLY 24 V DC 19-30 V),TERMINAL 2.5 MMA² / AWG 14 AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)-TERMINAL 50 MMA² / AWG 1/0 L1/R, L2/S, L3/T, U/T1, V/T2, W/T3, PC/-, PO, |
| In the heart of your applications Open to main building and industry communication networks |
| Range dedicated to pumps and fans applications for industry market and building market |
| Exceptional performance |
| Advanced functionalities |
| Eco-design |
| With heat sink assembly style |
| Level 3 EMC filter |
| Modbus, CANopen communication port protocol |
| Variable torque application |
| -10 to 60 deg C operating |
| 22 kW power rating |
| 3-phase |
