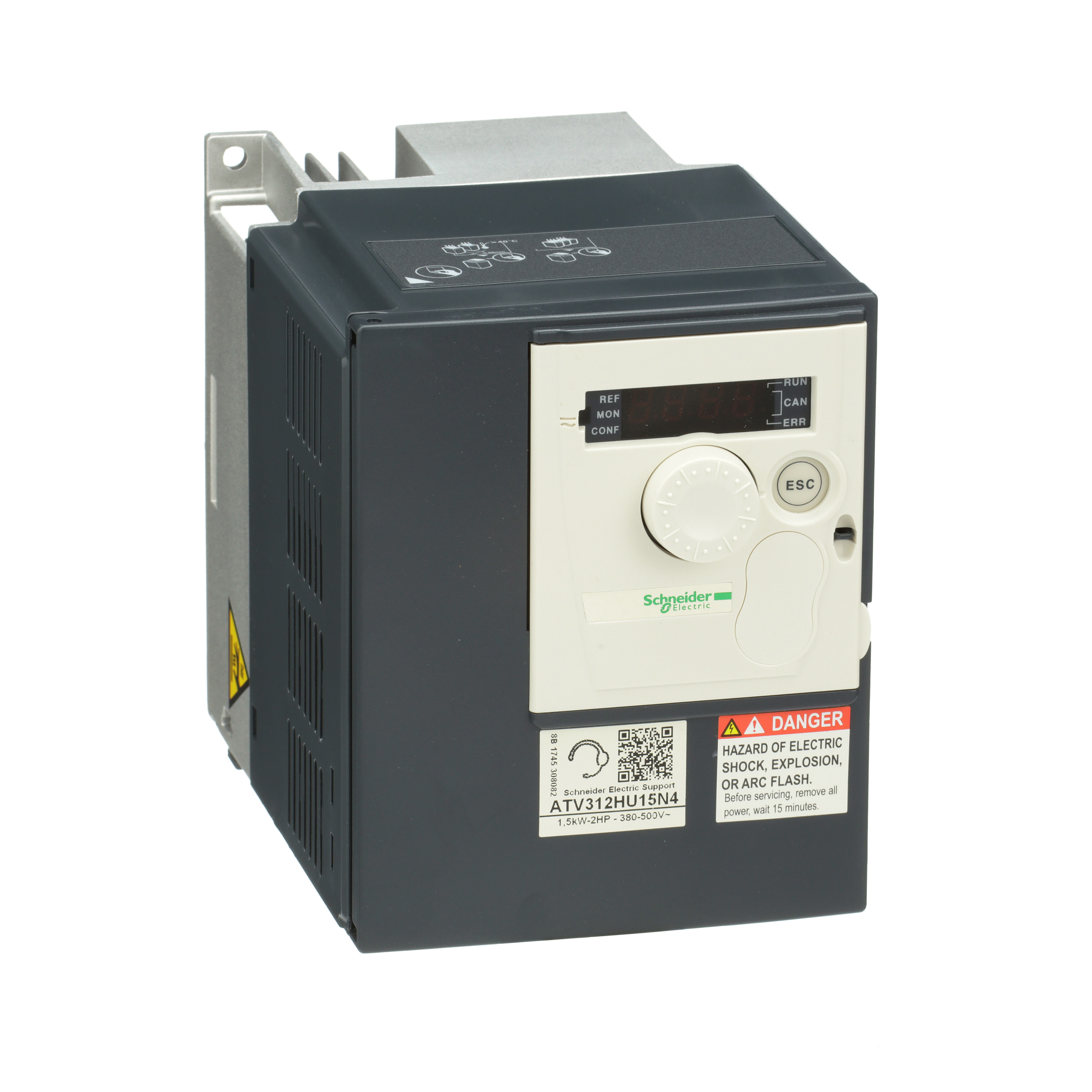

Schneider ElectricAltivar 312 ATV312HU15N4 Variable Speed Drive, 380/500 VAC, 4.1 A, 2 hp, 4.21 in W x 5.98 in D
AC Variable Frequency Drives
535859
MFG #: ATV312HU15N4
Schneider Electric
700.66000
/ ea
- 22.3520(User Manual URL)
- Brochure URL - files?p_Doc_Ref=ATV312HU15N4_DA19&p_File_Type=rendition_4000_png(Brochure URL)
- C(Warranty URL)
- Catalog URL - Schneider_Electric_ATS22C11S6U_Catalog.pdf(Catalog URL)
- cm(Installation Video URL)
- Compliance Cert URL - Schneider_Electric_ATV312HU15N4_Compliance_Certificate.pdf(Compliance Cert URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - ATV312HU15N4(Spec Sheet URL)
- Tech Bulletin URL - watch?v=xycaVNobqHU&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn(Tech Bulletin URL)
- Video - 5104(Video)
- Applications
- Features
| 1.5 KW,2 HP,ASYNCHRONOUS MOTORS,SIMPLE MACHINE |
| AL1, AL2, AL3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 TERMINAL 2.5-2.5 MMA² AWG 14-L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- TERMINAL 5-5 MMA² AWG 10,FACTORY SET : CONSTANT TORQUE-SENSORLESS FLUX VECTOR CONTROL WITH PWM TYPE MOTOR CONTROL SIGNAL,FREQUENCY PI REGULATOR,INPUT PHASE BREAKS DRIVE-LINE SUPPLY OVERVOLTAGE AND UNDERVOLTAGE SAFETY CIRCUITS DRIVE-LINE SUPPLY PHASE LOSS SAFETY FUNCTION, FOR THREE PHASES SUPPLY DRIVE-MOTOR PHASE BREAKS DRIVE-OVERCURRENT BETWEEN OUTPUT PHASES AND EARTH (ON POWER UP ONLY) DRIVE-OVERHEATING PROTECTION DRIVE-SHORT-CIRCUIT BETWEEN MOTOR PHASES DRIVE-THERMAL PROTECTION MOTOR,INTERNAL SUPPLY FOR LOGIC INPUTS 19...30 V 100 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION-INTERNAL SUPPLY FOR REFERENCE POTENTIOMETER (2.2 TO 10 KOHM) 10...10.8 V 10 MA OVERLOAD AND SHORT-CIRCUIT PROTECTION |
