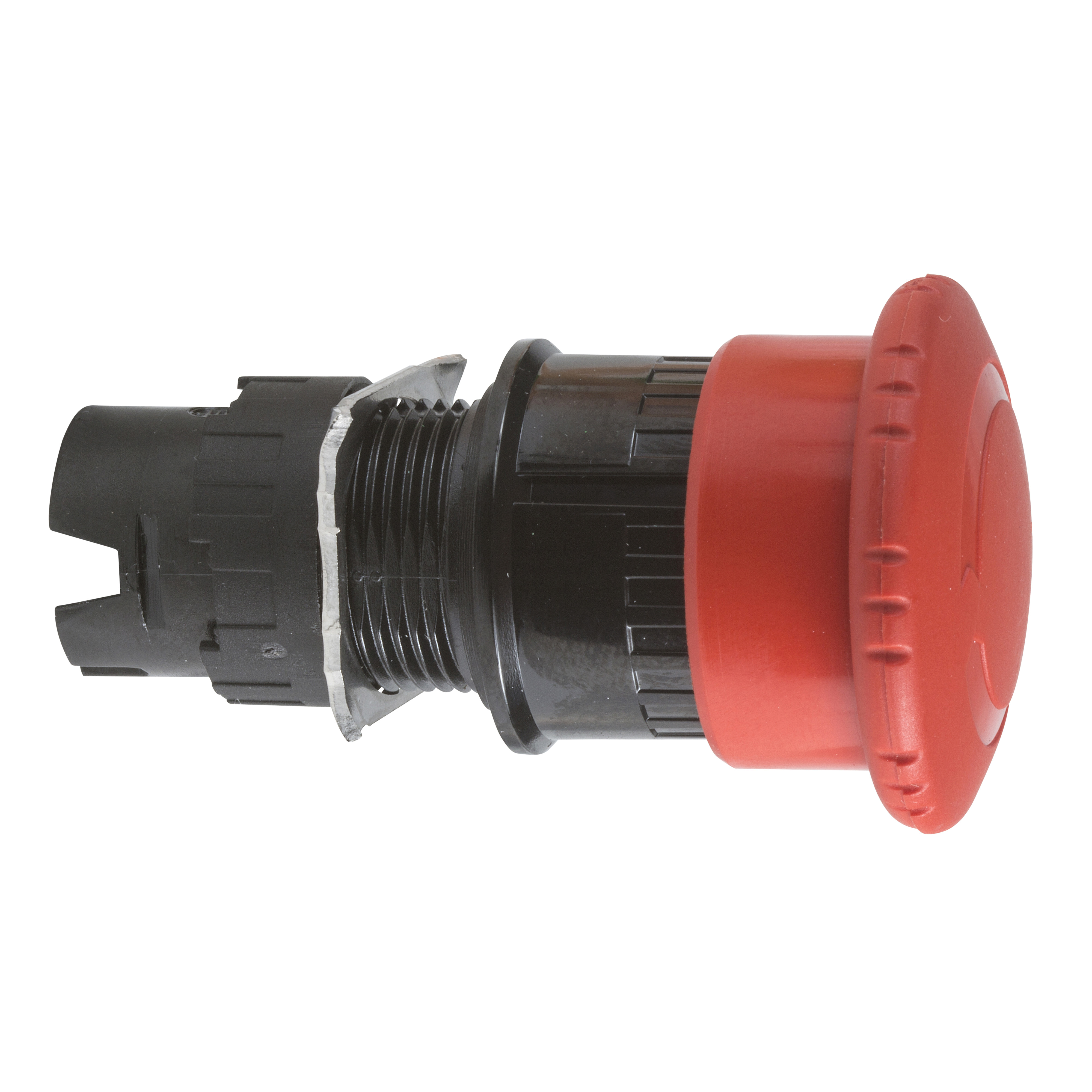

Schneider Electric ZB6 Emergency Stop Pushbutton Head, 30 mm, Round, Red
Pilot Devices
98281
MFG #: ZB6AS834
Schneider Electric
31.69000
/ ea
Schneider Electric ZB6AS834 16MM PUSH BUTTON 65168-026,16 mm,Harmony XB6,Mushroom (30mm) - Turn to Release,NEMA 1/2/3/4/4X/12 IP65,Red,head for emergency stop push-button,head for emergency stop push-button,plastic,trigger action and mechanical latching,turn to release
- Brochure URL - bb9a53b06d55608937c962e7631148f0ee669e67.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB6AS834_2D Front View.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB6AS834_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_JRY87K5N2TF1W0D9.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_1STYNKZ3UH8L9MAE.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_5NDCX47PAF9I3GK1.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_WR9L6C8QITV1YPJF.pdf(Tech Drawing URL)
- Features
| HEAD FOR EMERGENCY STOP PUSH-BUTTON,PLASTIC |
| Trigger action and mechanical latching operator |
| NEMA 4/13/4X enclosure |
| IP65 conforming to IEC 60529 deg of protection |
| Plastic bezzel |
| Red mushroom mm unmarked operator profile |
| -13 to 158 deg F operating temperature |
| 100000 cycles mechanical durability |
| 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance and 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance, /- 3 mm (f= 2 to 500 Hz) conforming to IEC 60068-2-6 |
| Turn to release reset |
