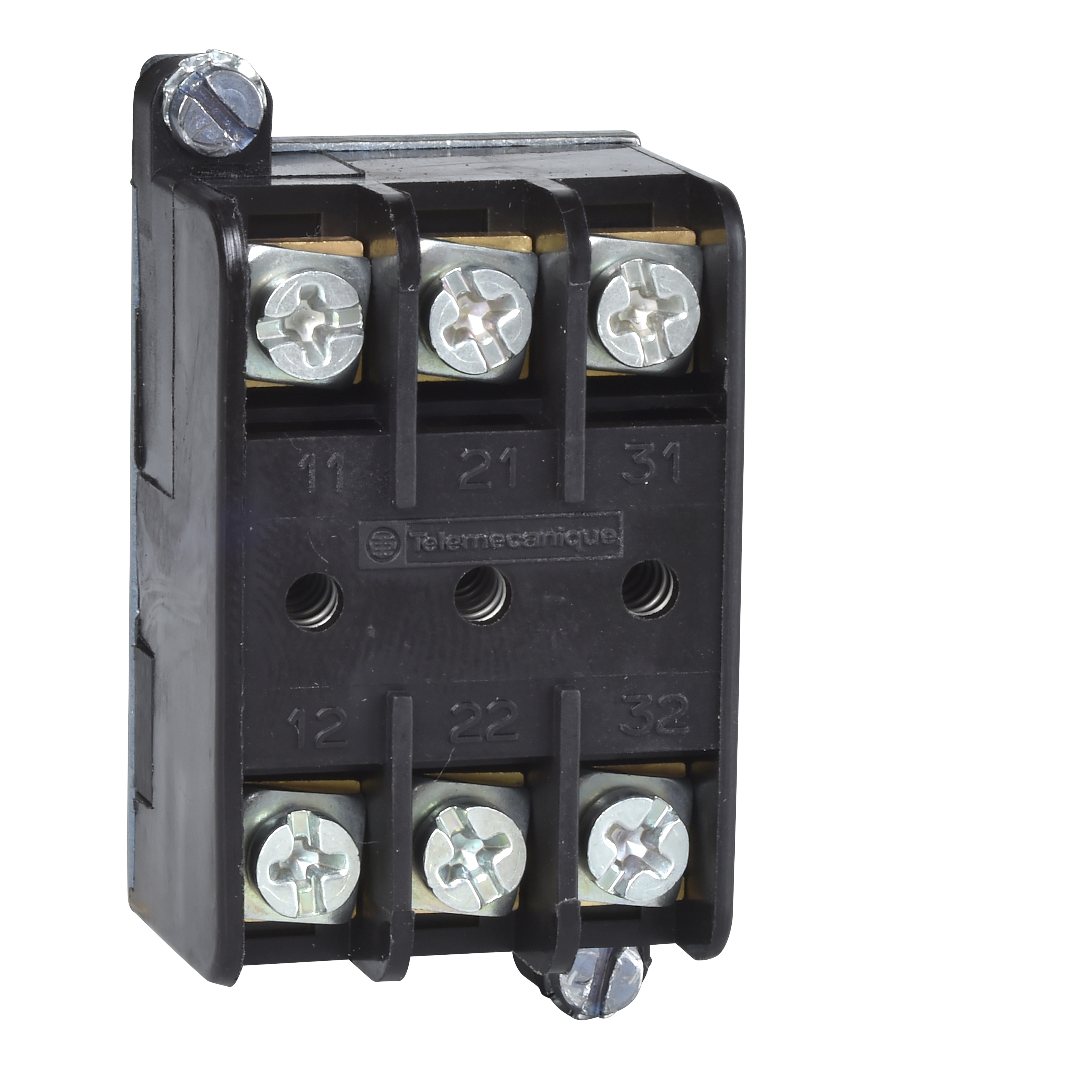

Schneider Electric XENT1192 Single Isolating Block, For Use With Harmony® XEN-T, XACA Control Circuit
Custom_Product_Images_Illustration
Schneider Electric XENT1192 Single Isolating Block, For Use With Harmony® XEN-T, XACA Control Circuit
SKU560763
MFGR #XENT1192
Your Cost: $53.58/ea
Schneider Electric XENT1192 3NC CONTACT BLOCK FOR XAC,-25...70 deg.C,10 A,3 NC,Harmony XAC,isolating switch,XACA
Schneider Electric XENT1192 3NC CONTACT BLOCK FOR XAC,-25...70 deg.C,10 A,3 NC,Harmony XAC,isolating switch,XACA
Action SLOW-BREAK Alternate Catalog Number XENT1192 Amperage Rating 10 A Application Control circuit;Emergency stop push-button;XACA ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number XENT1192 Connection SCREW CLAMP TERMINALS, 1 X 0.5...1 X 2.5 MMA² WITHOUT CABLE END-SCREW CLAMP TERMINALS, 1 X 0.5...2 X 1.5 MMA² WITH CABLE END Contact Configuration 3 NC Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 7.31 Gross Volume per Pack Metric 119.79 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 67.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 3.6000 in Height [Metric] 3.6000 cm Item Group 22466 Length 10.1000 in Length [Metric] 10.1000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=667170&lang=en-us Mounting FRONT MOUNTING Operating Temperature -25-70 A°C Returnable Y Series XENT Specifications 10 A, Front Mount Standard 100 GN IEC 60068-2-27,15 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-1-EN/IEC 60204-32,CLASS II IEC 61140 Stock Status NONSTOCK Sub Brand XENT Suitable For Use With Harmony™ XEN-T and XACA Control Circuit Type Single UNSPSC 39122213 UPC 11 78590123326 UPC 12 785901233268 Warranty Description Contractual Warranty:18 months Wattage 40 W DC-13 1000000 CYCLES 60 CYC/MN 120 V 0.5 INDUCTIVE IEC 60947-5-1 APPENDIX C-48 W DC-13 1000000 CYCLES 60 CYC/MN 48 V 0.5 INDUCTIVE IEC 60947-5-1 APPENDIX C-65 W DC-13 1000000 CYCLES 60 CYC/MN 24 V 0.5 INDUCTIVE IEC 60947-5-1 APPENDIX C Width 4.7000 in Width [Metric] 4.7000 cm Control circuit;Emergency stop push-button;XACA 3 NC contacts configuration Slow break contact operation Screw clamp terminal electrical connection 1000000 cycles mechanical durability 10 A thermal current 400 VAC rated insulation voltage 6 kV impulse withstand voltage 14 N operating force 10 A fuse protection by cartridge fuse type gG -25 to 70 deg C operating temperature -40 to 158 deg F storage temperature -40 to 158 deg F storage temperature
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Alternate Catalog Number | XENT1192 |
| Amperage Rating | 10 A |
| Application | Control circuit;Emergency stop push-button;XACA |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | XENT1192 |
| Connection | SCREW CLAMP TERMINALS, 1 X 0.5...1 X 2.5 MMA² WITHOUT CABLE END-SCREW CLAMP TERMINALS, 1 X 0.5...2 X 1.5 MMA² WITH CABLE END |
| Contact Configuration | 3 NC |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 7.31 |
| Gross Volume per Pack Metric | 119.79 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 67.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 3.6000 in |
| Height [Metric] | 3.6000 cm |
| Item Group | 22466 |
| Length | 10.1000 in |
| Length [Metric] | 10.1000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=667170&lang=en-us |
| Mounting | FRONT MOUNTING |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | XENT |
| Specifications | 10 A, Front Mount |
| Standard | 100 GN IEC 60068-2-27,15 GN 10-500 HZ)IEC 60068-2-6,CSA C22.2 NO 14-UL 508-EN/IEC 60947-5-1-EN/IEC 60204-32,CLASS II IEC 61140 |
| Stock Status | NONSTOCK |
| Sub Brand | XENT |
| Suitable For Use With | Harmony™ XEN-T and XACA Control Circuit |
| Type | Single |
| UNSPSC | 39122213 |
| UPC 11 | 78590123326 |
| UPC 12 | 785901233268 |
| Warranty Description | Contractual Warranty:18 months |
| Wattage | 40 W DC-13 1000000 CYCLES 60 CYC/MN 120 V 0.5 INDUCTIVE IEC 60947-5-1 APPENDIX C-48 W DC-13 1000000 CYCLES 60 CYC/MN 48 V 0.5 INDUCTIVE IEC 60947-5-1 APPENDIX C-65 W DC-13 1000000 CYCLES 60 CYC/MN 24 V 0.5 INDUCTIVE IEC 60947-5-1 APPENDIX C |
| Width | 4.7000 in |
| Width [Metric] | 4.7000 cm |
| Control circuit;Emergency stop push-button;XACA |
| 3 NC contacts configuration |
| Slow break contact operation |
| Screw clamp terminal electrical connection |
| 1000000 cycles mechanical durability |
| 10 A thermal current |
| 400 VAC rated insulation voltage |
| 6 kV impulse withstand voltage |
| 14 N operating force |
| 10 A fuse protection by cartridge fuse type gG |
| -25 to 70 deg C operating temperature |
| -40 to 158 deg F storage temperature |
| -40 to 158 deg F storage temperature |
