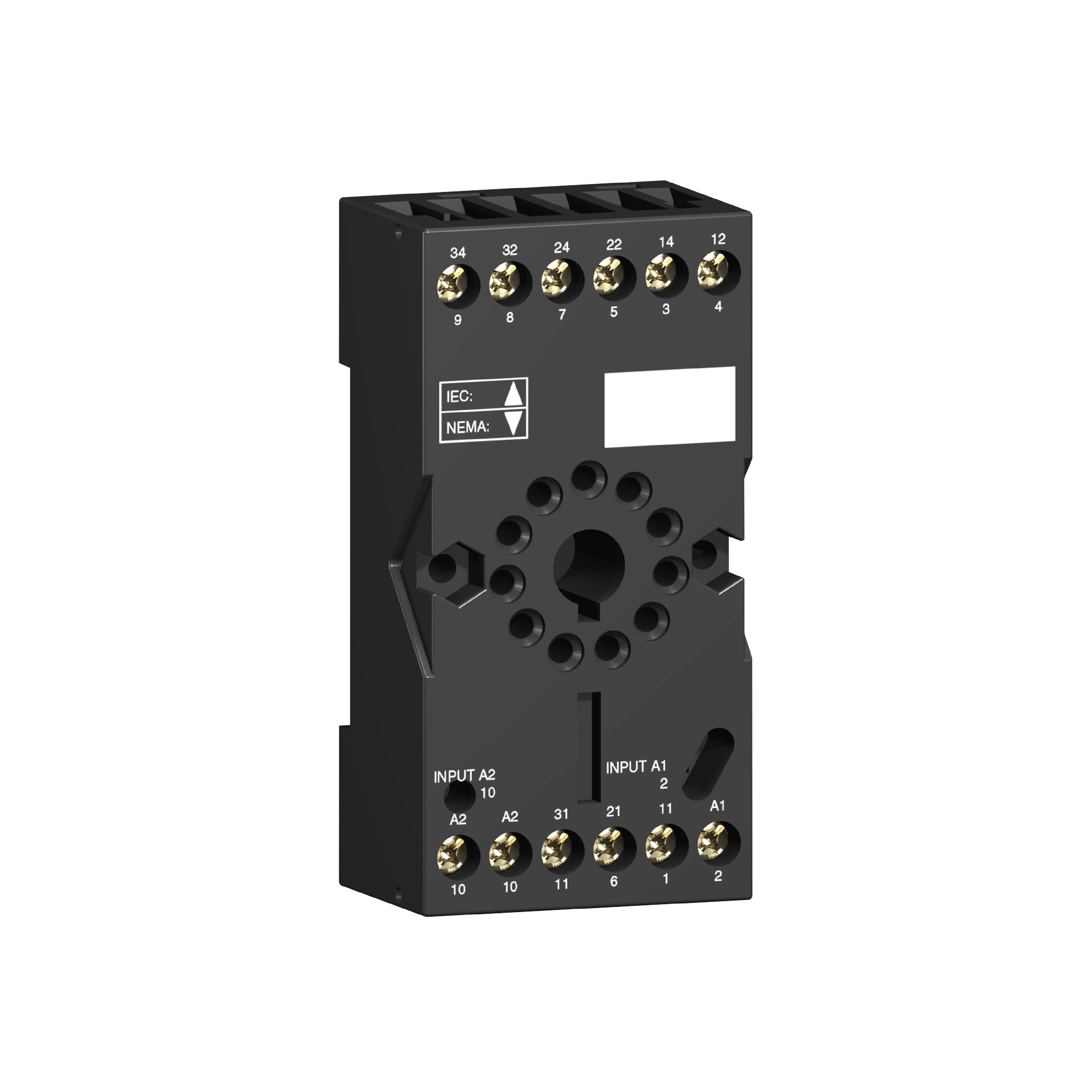

Schneider Electric Square D™ Zelio™ RUZSC2M Relay Socket, 250 VAC, 5 to 12 A, For Use With RUM (2CO) Plug-In Relay, 8 Pin
Relay & Timer Bases-Sockets
1301273
MFG #: RUZSC2M
Square D™
5.49000
/ ea
Schneider Electric Square D™ Zelio™ Relay Socket, Series: RUZ, 250 VAC, 5 to 12 A, 8 Pins, -40 to 55 deg C, For Use With: RUM (2CO) Plug-In Relay, DIN Rail/Panel Mounting, Screw Terminal, IP20 Enclosure, 3.78 in L x 1.42 in W x 1.77 in H Dimensions
- Brochure URL - c0bb1d2483bc924cd36ec5fa718b0a923188bada.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_G3A72SK4EOMRTU5L.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/W6W-90ovcos(Video)
- Applications
- Features
| Plug-in relay RUM 2 C/O |
| 5 A with bus jumper conventional-free air thermal current |
| Separate contact terminal arrangement |
| Cylindrical shape pin |
| 8.85 in-lb tightening torque |
| Fixed mode by screw mounting on panel, clip-on mounting on 35 mm symmetrical DIN rail |
| 20 to 14 AWG connector, one-wire flexible cable with cable end |
| 22 to 17 AWG screw connector, two-flexible cable with cable end |
| 20 to 14 AWG connector, one-wire solid cable without cable end |
| 20 to 16 AWG connector, two-wire solid cable without cable end |
| This Schneider Electric Zelio RUM plug-in socket has a rated voltage of 250 VAC with an output rating of 12 A |
| This Schneider Electric Zelio RUM plug-in socket has a rated voltage of 250 VAC with an output rating of 12 A |
| It is mountable on DIN rail |
| It is compatible with RUM with 2CO |
