Schneider Electric Square D™ TeSys™ D LC1D1156BD Contactor With Safety Cover, 24 VDC V Coil, 200 A, 3NO Contact, 3 Poles
NEMA & IEC Contactors
1336381
MFG #: LC1D1156BD
Square D™
882.89000
/ ea

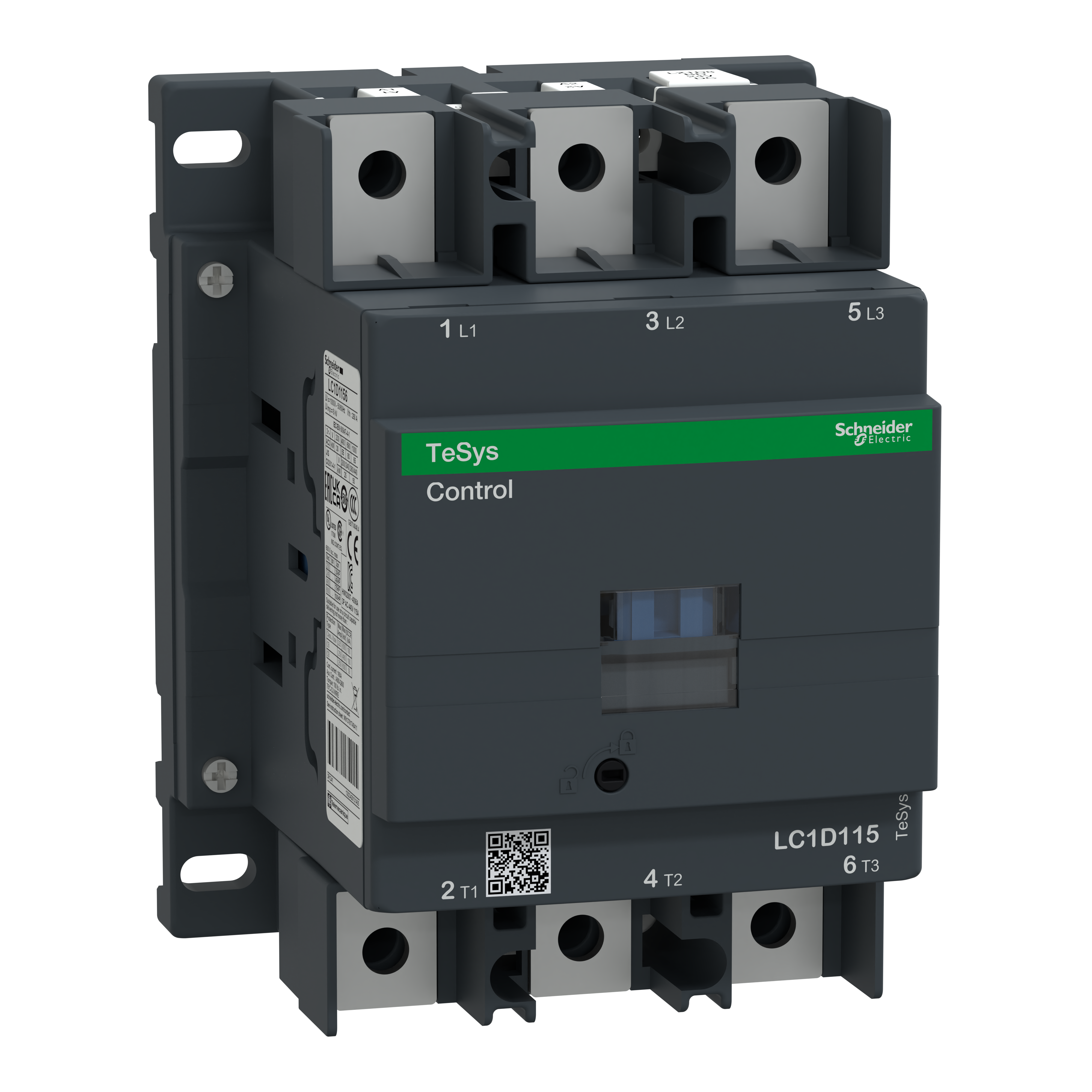

Schneider Electric Square D™ TeSys™ D Contactor, Series: LC1D, 24 VDC Coil, 200 A Maximum Load Current, 5.1 W Coil, 3 Pole, 25 to 400 Hz Frequency, 7.9 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 200 A Contact, Screw Connection, Lugs-Ring Terminal, IP20 Enclosure, 1200 Cycles Operating Cycles, -5 to 60 deg C Operating, Surface Mounting, 120 mm W x 136 mm D x 158 mm H Dimensions
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8054148360Den&ext=webp(360 Degree View URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - files?p_File_Name=W915113010123-13.pdf(Install Instructions 1 URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPP0003712_2D-bottom.dwg(Computer~Aided [CAD|BIM] Model URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Spec Sheet URL - 11003_MXDTLRY2F98OU0GA.pdf(Spec Sheet URL)
- Service Manual URL - 11003_NQHO54028GBPDRJK.pdf(Service Manual URL)
- Service Manual URL - 11003_FDYOKJ53LVZH40R9.pdf(Service Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - SB105143(Tech Drawing URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/e8UrRZljFg0(Video)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Applications
- Features
| For motor control and resistive load |
| With integral suppression device |
| Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications |
| New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil |
| TeSys™ D green contactor simplify your maintenance services with 90% less references needed |
| TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50% |
| High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR |
| Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets |
| Simple to select the right product |
| All contactors include built-in auxiliary contacts |
| All screw connections have IP20 finger-safe terminals with both North American and International terminal markings |
| Control circuit flexibility |
| Control circuit flexibility |
