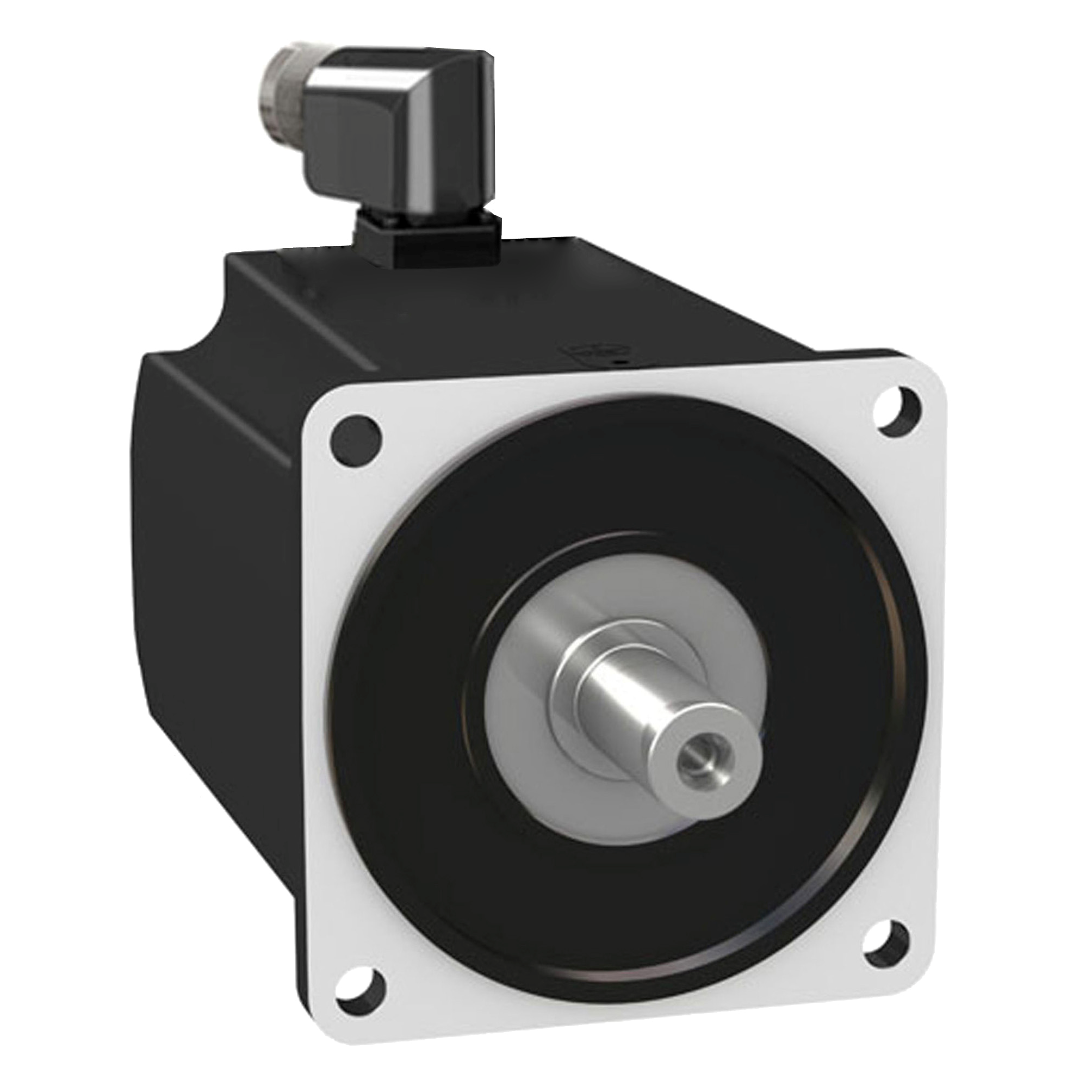

Schneider Electric Square D™ Lexium™ 52 MH31903P12F2200 3-Phase Multiturn Parallel Keyed Shaft End Natural Convection Standard Servo Motor With Holding Brake, 10.5 hp, 115 to 480 V, 124.5 A, 3800 rpm Speed, Flange Mount
Servo Motors
PDW~12047466
MFG #: MH31903P12F2200
Square D™
6085.63000
/ ea
Schneider Electric Square D™ Lexium™ 52 Standard Servo Motor, 3-Phase Multiturn Parallel Keyed Shaft End Natural Convection, Series: MH3 190, Synchronous Permanent Magnet AC Motors Special Features, 10.5 hp, 115 to 480 V, 124.5 A, 3800 rpm Speed, IP65 Enclosure, 1.5 in Dia x 3.15 in L Shaft, 327.48 in-lbf Torque, Flange Mounting, -4 to 104 deg F, Insulation Class: Class F, 7.48 in W x 14.49 in D x 10.12 in H Dimensions
- Brochure URL - bbc94f44b57e45302e9c3eb2554b74f95c635d08.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0001359_2D-right.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_0VNDCFUKOHEX2149.pdf(Spec Sheet URL)
- Applications
- Features
General Machine Control, Packaging Machine Automation and Handling Applications |
Overload capacity - high peak current (up to 4X the continuous current) |
Increases the range of movement |
Power density - the compact size of the servo drives offers maximum efficiency in a small space |
External braking resistors, when the Servo Motor has to be braked frequently |
Line chokes for improved protection against over voltages to reduce harmonic distortion of the current |
Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 |
327.48 in-lbf at 400/480 V |
