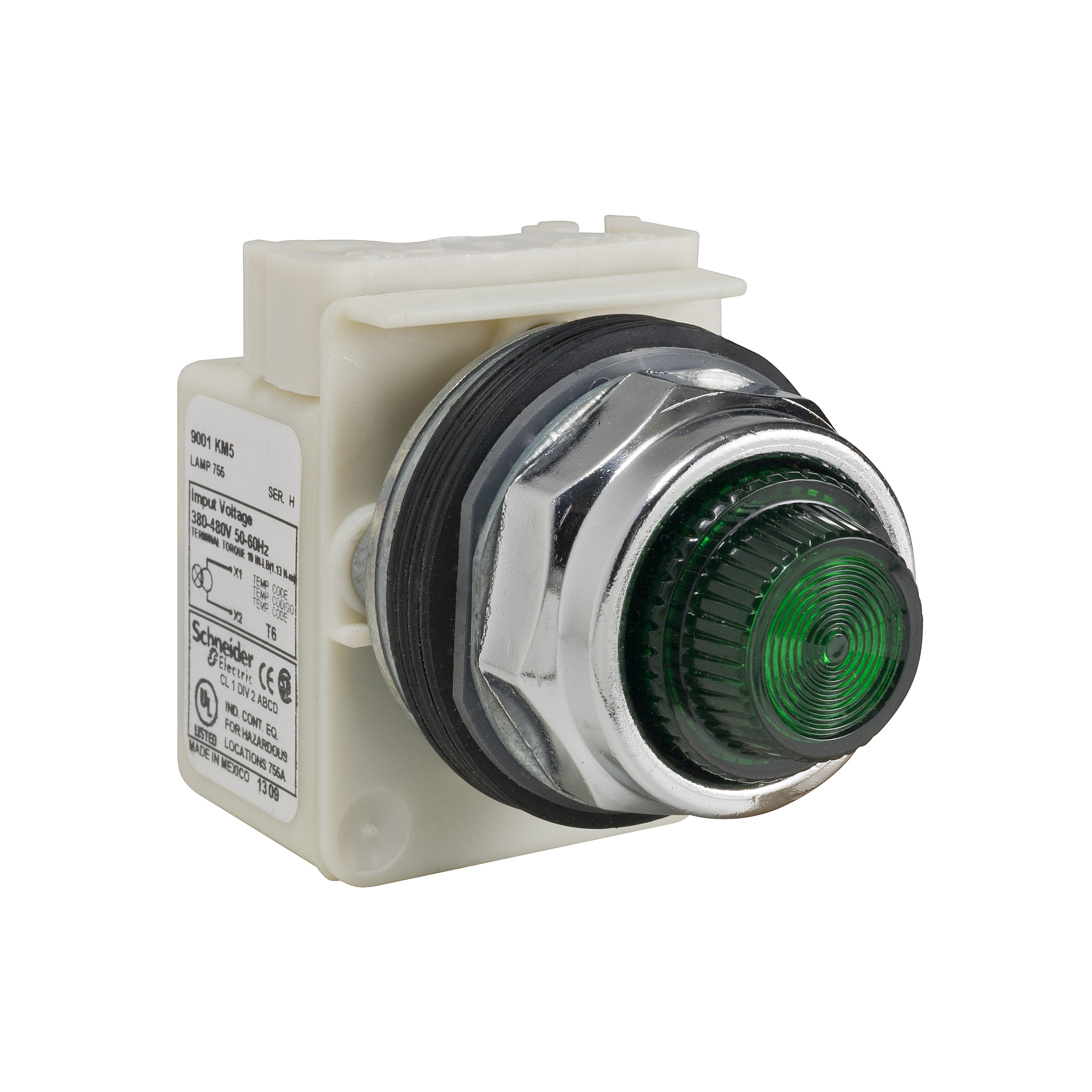

Schneider Electric Square D™ Harmony™ 9001KP5G31 Type K Standard Heavy Duty Transformer Pilot Light, 380/480 VAC, 2.8 VA, Fresnel Lens, Panel Mount
Pilot Lights
1370282
MFG #: 9001KP5G31
Square D™
153.00000
/ ea
Schneider Electric Square D™ Harmony™ Pilot Light, Type K Standard Heavy Duty Transformer, Series: 9001K, 380/480 VAC, 2.8 VA Wattage, Normal Style, Fresnel Lens, Green Lens, Plastic Lens, Incandescent Lamp, Bezel/Housing: Polished Chrome Metal/Thermoplastic Polyester, 30 mm Size, Round Shape, Screw Clamp Terminal, NEMA 1/2/3/3R/4/6/12/13/IP66 Enclosure, Panel Mounting
- Brochure URL - 11003_8QOJYL9EPK6C5SGW.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001KP5G31_2D Front View.dxf(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001KP5G31_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_C21L3JDHNA4URFW6.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_PGQ62BWT3L5XJVF1.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_CEA0ZJBS1P28YIV7.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_DTP0U37NSW6Y4MIX.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/za0gVi-W-TM(Video)
- Applications
- Features
Food, Beverage, Chemical, Mining, Mineral, Metal Processing, Pulp/Paper, Waste Water Treatment Plants, Automotive, Crane/Hoists, Machine Tools, Airport, Transportation, Textile, Heavy Industry, Robust, Signaling and Hazardous Location Applications |
SCREW CLAMP TERMINAL |
Full-size and shallow depth light modules |
Reduced panel space with side-by-side mounting |
Easy-to-actuate, tactile feel operators |
Maintenance free operation |
Simplified installation and identification |
Without legend plates |
