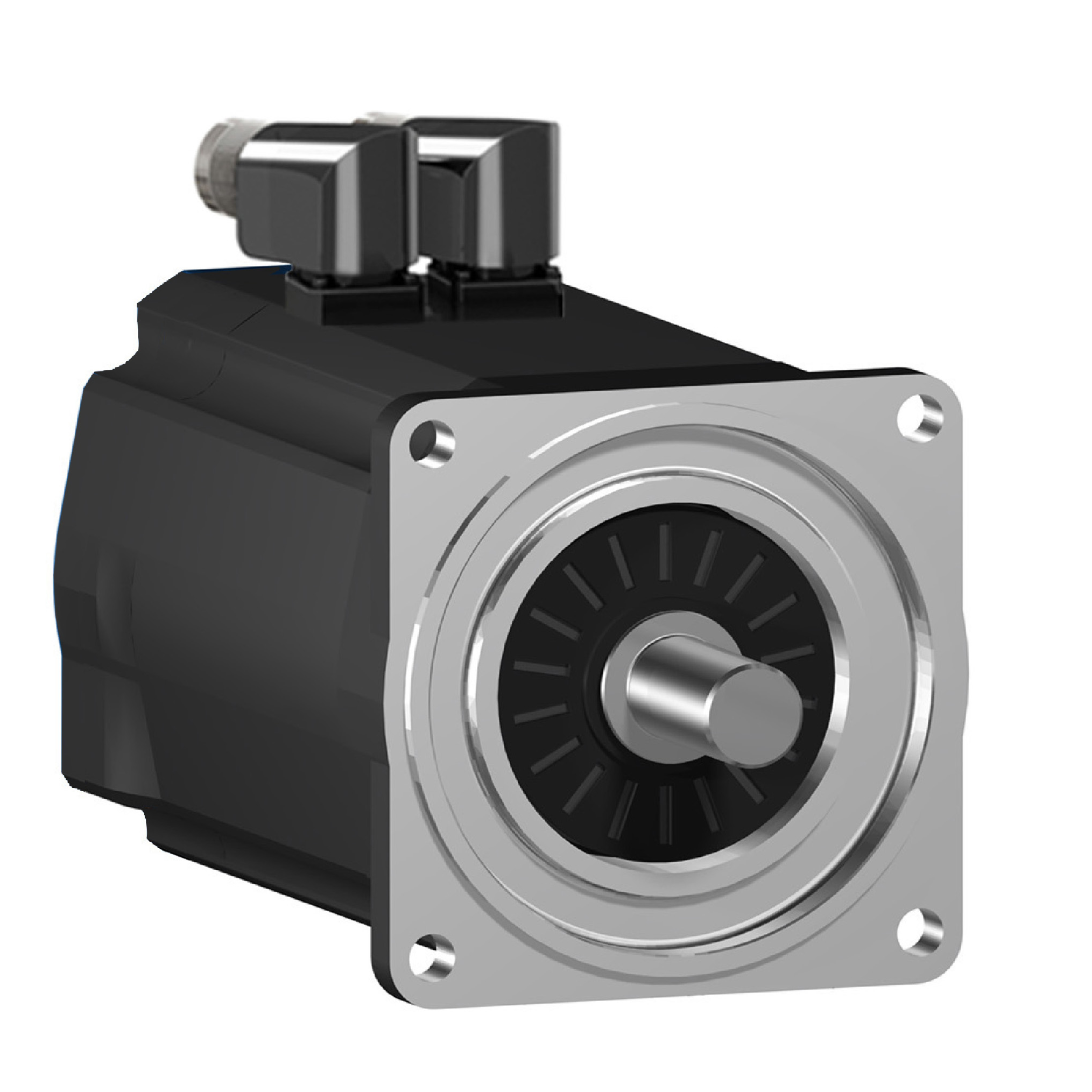

Schneider Electric SH31402P12A2200 5-Poles Parallel Key, 115 to 480 V, 44.1 A, 750,1500,3000,3600 rpm speed, Flange mount
Servo Motors
PDW~11778444
MFG #: SH31402P12A2200
Square D™
0.00000
/ ea
- Brochure URL - bbc94f44b57e45302e9c3eb2554b74f95c635d08.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_N8BPDLFCJUI6H7RV.pdf(Spec Sheet URL)
- User Manual URL - 11003_61QJLD5AYECV9NW3.pdf(User Manual URL)
- User Manual URL - 11003_Q5B4AFZLSWUNTP1J.pdf(User Manual URL)
- Features
| Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp) |
| Overload capacity: high peak current (up to 4 times the continuous current) |
| Increases the range of movement |
| Power density: the compact size of the servo drives offers maximum efficiency in a small space |
| External braking resistors, when the servo motor has to be braked frequently |
| Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 |
| Line chokes for improved protection against over voltages to reduce harmonic distortion of the current |
| Without holding brake |
| 1460 W 115 V three phase2690 W 230 V three phase3860 W 400 V three phase3660 W 480 V three phase nominal output power |
| Absolute multiturn SinCos Hiperface encoder type |
| Absolute multiturn SinCos Hiperface encoder type |
| 5.51 in (140 mm) motor flange size |
| 101 V/krpm 68 deg F (20 deg C) back emf constant |
| 12.68 kg.cm2 rotor inertia |
| 0.6 Ohm stator resistance |
| 11.225 mH stator inductance |
| 2240 N 1000 rpm, 1780 N 2000 rpm, 1550 N 3000 rpm maximum radial force fr |
| 300 N maximum axial force fa |
| 5.12 in (130 mm) centring collar diameter |
