Square D™

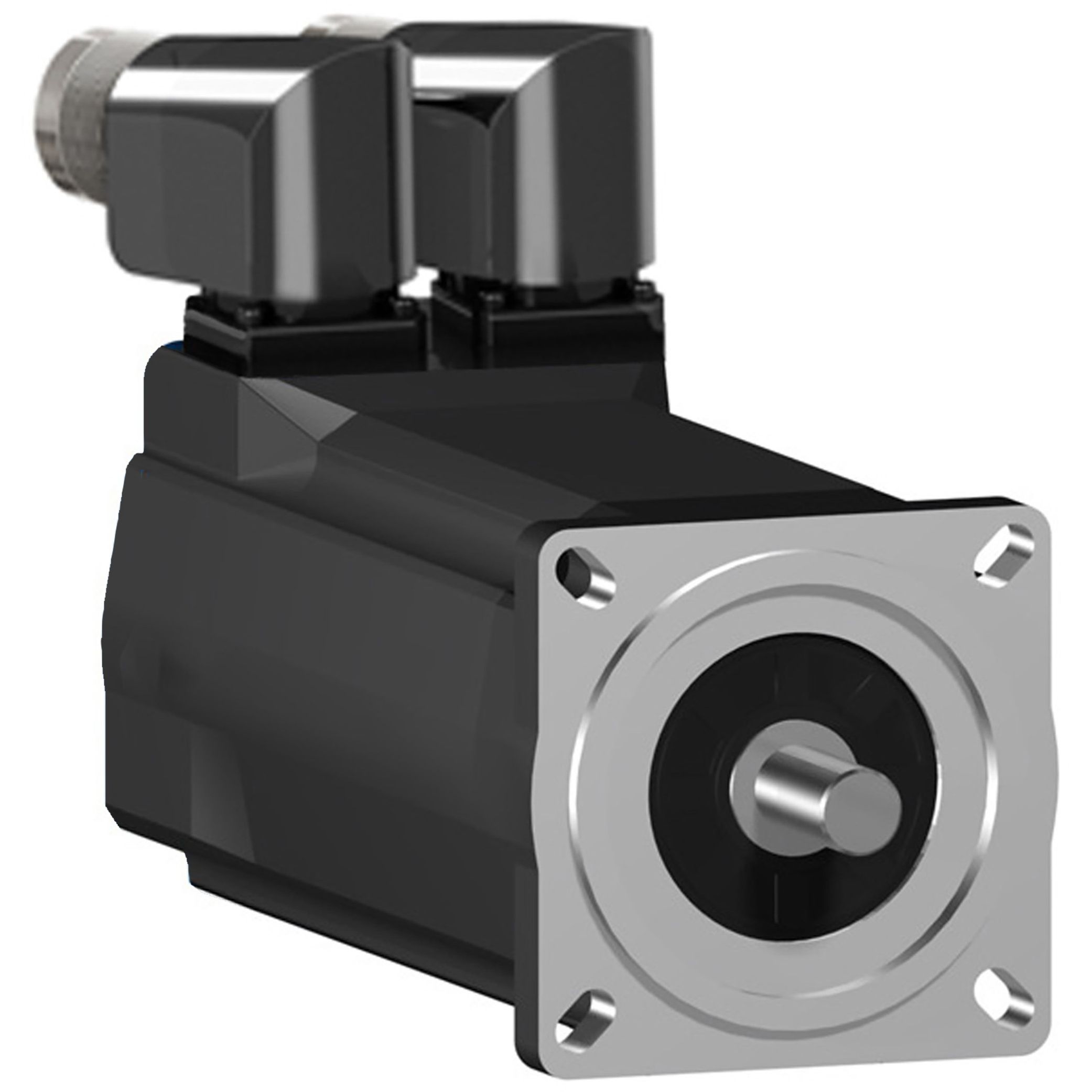

Schneider Electric SH30701P12F2200 3-Poles Parallel Key, 115 to 480 V, 5.7 A, 1500,3000,6000,7200 rpm speed, Flange mount
Square D™
Schneider Electric SH30701P12F2200 3-Poles Parallel Key, 115 to 480 V, 5.7 A, 1500,3000,6000,7200 rpm speed, Flange mount
SKUPDW~11778585
MFGR #SH30701P12F2200
Your Cost: $6,918.11/ea
Schneider Electric SH30701P12F2200, 3-Poles Parallel Key, 128 Periods Special Features, 115 to 480 V, 5.7 A, 1500,3000,6000,7200 rpm Speed, IP65/IP67 Enclosure, 0.43 in x 0.91 in L Shaft, 1.4 N-m Torque, Flange Mounting, 4.39 in H x 2.76 in W x 7.07 in L x 7.09 in D Dimensions
Schneider Electric SH30701P12F2200, 3-Poles Parallel Key, 128 Periods Special Features, 115 to 480 V, 5.7 A, 1500,3000,6000,7200 rpm Speed, IP65/IP67 Enclosure, 0.43 in x 0.91 in L Shaft, 1.4 N-m Torque, Flange Mounting, 4.39 in H x 2.76 in W x 7.07 in L x 7.09 in D Dimensions
Alternate Catalog Number SH30701P12F2200 ARRA Compliant N Buy American Compliant N Catalog Number SH30701P12F2200 Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight Per Pack 0.0246 lb Gross Weight per Pack Metric 2.46 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8501528040 Height 18.9990 in Height [Metric] 18.9990 cm Item Group 18359 Length 39.4970 in Length [Metric] 39.4970 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=417169895&lang=en-us Phase 3 Returnable N UNSPSC 39121021 Warranty Description Contractual Warranty:18 months Width 11.5060 in Width [Metric] 11.5060 cm Brand Square D™ Manufacturer Schneider Electric Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp) Overload capacity: high peak current (up to 4 times the continuous current) Increases the range of movement Power density: the compact size of the servo drives offers maximum efficiency in a small space External braking resistors, when the servo motor has to be braked frequently Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 Line chokes for improved protection against over voltages to reduce harmonic distortion of the current With holding brake 220 W 115 V three phase440 W 230 V three phase820 W 400 V three phase950 W 480 V three phase nominal output power Absolute multiturn SinCos Hiperface encoder type Absolute multiturn SinCos Hiperface encoder type 2.76 in (70 mm) motor flange size 46 V/krpm 68 deg F (20 deg C) back emf constant 0.322 kg.cm2 rotor inertia 10.4 Ohm stator resistance 60.25 mH stator inductance 660 N 1000 rpm, 520 N 2000 rpm, 460 N 3000 rpm, 410 N 4000 rpm, 380 N 5000 rpm, 360 N 6000 rpm maximum radial force fr 80 N maximum axial force fa 2.36 in (60 mm) centring collar diameter
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SH30701P12F2200 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | SH30701P12F2200 |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0246 lb |
| Gross Weight per Pack Metric | 2.46 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8501528040 |
| Height | 18.9990 in |
| Height [Metric] | 18.9990 cm |
| Item Group | 18359 |
| Length | 39.4970 in |
| Length [Metric] | 39.4970 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=417169895&lang=en-us |
| Phase | 3 |
| Returnable | N |
| UNSPSC | 39121021 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 11.5060 in |
| Width [Metric] | 11.5060 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp) |
| Overload capacity: high peak current (up to 4 times the continuous current) |
| Increases the range of movement |
| Power density: the compact size of the servo drives offers maximum efficiency in a small space |
| External braking resistors, when the servo motor has to be braked frequently |
| Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 |
| Line chokes for improved protection against over voltages to reduce harmonic distortion of the current |
| With holding brake |
| 220 W 115 V three phase440 W 230 V three phase820 W 400 V three phase950 W 480 V three phase nominal output power |
| Absolute multiturn SinCos Hiperface encoder type |
| Absolute multiturn SinCos Hiperface encoder type |
| 2.76 in (70 mm) motor flange size |
| 46 V/krpm 68 deg F (20 deg C) back emf constant |
| 0.322 kg.cm2 rotor inertia |
| 10.4 Ohm stator resistance |
| 60.25 mH stator inductance |
| 660 N 1000 rpm, 520 N 2000 rpm, 460 N 3000 rpm, 410 N 4000 rpm, 380 N 5000 rpm, 360 N 6000 rpm maximum radial force fr |
| 80 N maximum axial force fa |
| 2.36 in (60 mm) centring collar diameter |
