Square D™

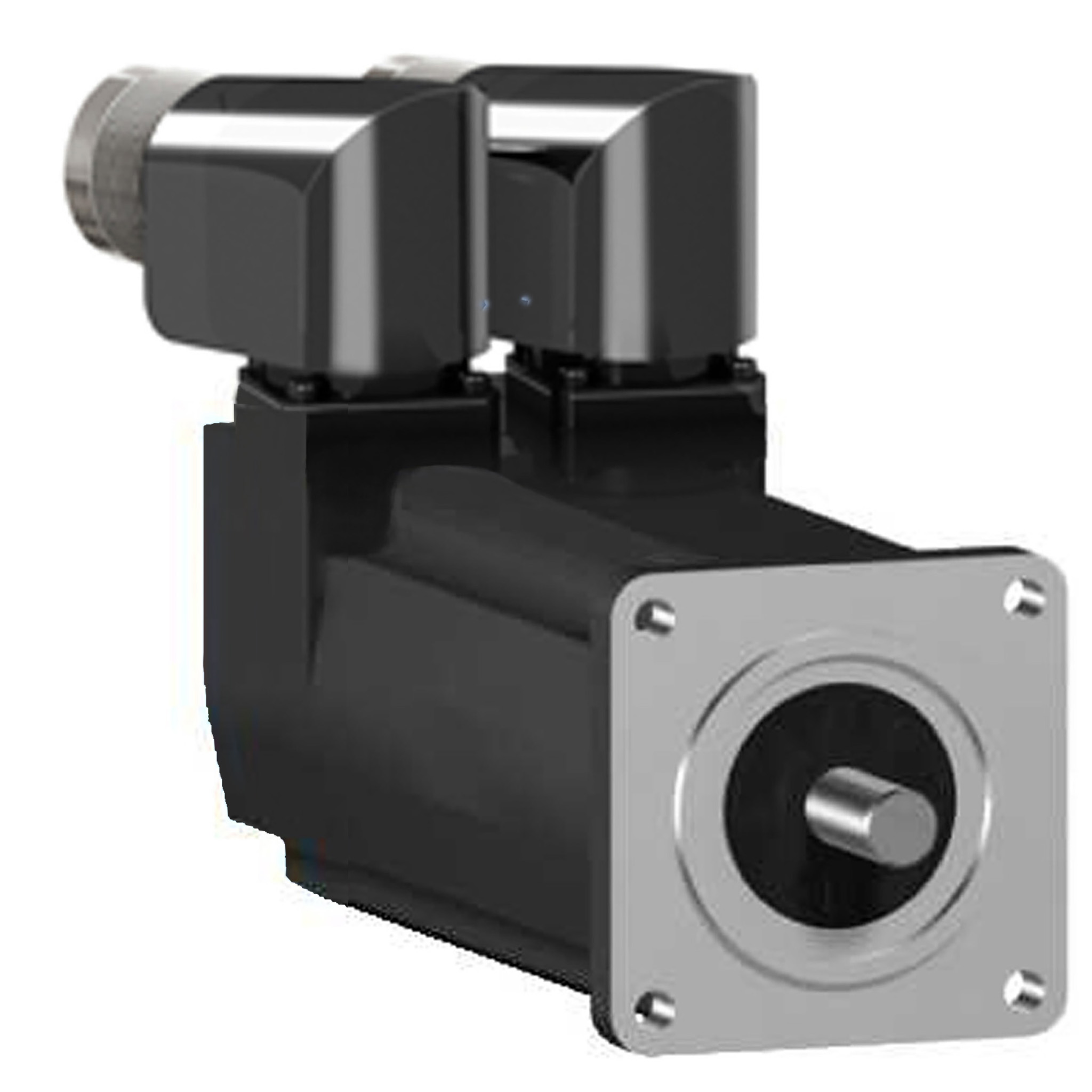

Schneider Electric SH30551P12A2200 3-Poles Parallel Key, 115 to 480 V, 2.9 A, 9000,2000,8000 rpm speed, Flange mount
Square D™
Schneider Electric SH30551P12A2200 3-Poles Parallel Key, 115 to 480 V, 2.9 A, 9000,2000,8000 rpm speed, Flange mount
SKUPDW~13602333
MFGR #SH30551P12A2200
Your Cost: $3,528.20/ea
List: Schneider Electric SH30551P12A2200, 3-Poles Parallel Key, 128 Periods Special Features, 115 to 480 V, 2.9 A, 9000,2000,8000 rpm Speed, IP65/IP67 Enclosure, 0.35 in x 0.79 in L Shaft, 0.5 N-m Torque, Flange Mounting, 3.72 in H x 2.16 in W x 5.22 in L x 5.22 in D Dimensions
Schneider Electric SH30551P12A2200, 3-Poles Parallel Key, 128 Periods Special Features, 115 to 480 V, 2.9 A, 9000,2000,8000 rpm Speed, IP65/IP67 Enclosure, 0.35 in x 0.79 in L Shaft, 0.5 N-m Torque, Flange Mounting, 3.72 in H x 2.16 in W x 5.22 in L x 5.22 in D Dimensions
Alternate Catalog Number SH30551P12A2200 ARRA Compliant N Buy American Compliant N Catalog Number SH30551P12A2200 Country of Origin DE Currency USD EU RoHS Indicator Y Gross Weight Per Pack 2.6400 lb Harmonization Tariff Schedule Code 8501528040 Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=417169609&lang=en-us Returnable N Substitute Product Catalog Number VW3E2094R050 UNSPSC 39121021 Warranty Description Contractual Warranty:18 months Brand Square D™ Manufacturer Schneider Electric Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp) Overload capacity: high peak current (up to 4 times the continuous current) Increases the range of movement Power density: the compact size of the servo drives offers maximum efficiency in a small space External braking resistors, when the servo motor has to be braked frequently Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 Line chokes for improved protection against over voltages to reduce harmonic distortion of the current Without holding brake 100 W 115 V three phase210 W 230 V three phase400 W 400 V three phase440 W 480 V three phase nominal output power Absolute multiturn SinCos Hiperface encoder type Absolute multiturn SinCos Hiperface encoder type 2.17 in (55 mm) motor flange size 40 V/krpm 68 deg F (20 deg C) back emf constant 059 kg.cm2 rotor inertia 41.8 Ohm stator resistance 108.72 mH stator inductance 340 N 1000 rpm, 270 N 2000 rpm, 240 N 3000 rpm, 220 N 4000 rpm, 200 N 5000 rpm, 190 N 6000 rpm, 180 N 7000 rpm, 170 N 8000 rpm maximum radial force fr 40 N maximum axial force fa 1.57 in (40 mm) centring collar diameter
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SH30551P12A2200 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | SH30551P12A2200 |
| Country of Origin | DE |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 2.6400 lb |
| Harmonization Tariff Schedule Code | 8501528040 |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=417169609&lang=en-us |
| Returnable | N |
| Substitute Product Catalog Number | VW3E2094R050 |
| UNSPSC | 39121021 |
| Warranty Description | Contractual Warranty:18 months |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Power ratings between 0.4 and 7 kW (0.536 and 9.383 hp) |
| Overload capacity: high peak current (up to 4 times the continuous current) |
| Increases the range of movement |
| Power density: the compact size of the servo drives offers maximum efficiency in a small space |
| External braking resistors, when the servo motor has to be braked frequently |
| Additional EMC input filters to reduce conducted emissions on the line supply below the limits of standard IEC/EN 61800-3 edition 2, category C2 or C3 |
| Line chokes for improved protection against over voltages to reduce harmonic distortion of the current |
| Without holding brake |
| 100 W 115 V three phase210 W 230 V three phase400 W 400 V three phase440 W 480 V three phase nominal output power |
| Absolute multiturn SinCos Hiperface encoder type |
| Absolute multiturn SinCos Hiperface encoder type |
| 2.17 in (55 mm) motor flange size |
| 40 V/krpm 68 deg F (20 deg C) back emf constant |
| 059 kg.cm2 rotor inertia |
| 41.8 Ohm stator resistance |
| 108.72 mH stator inductance |
| 340 N 1000 rpm, 270 N 2000 rpm, 240 N 3000 rpm, 220 N 4000 rpm, 200 N 5000 rpm, 190 N 6000 rpm, 180 N 7000 rpm, 170 N 8000 rpm maximum radial force fr |
| 40 N maximum axial force fa |
| 1.57 in (40 mm) centring collar diameter |
