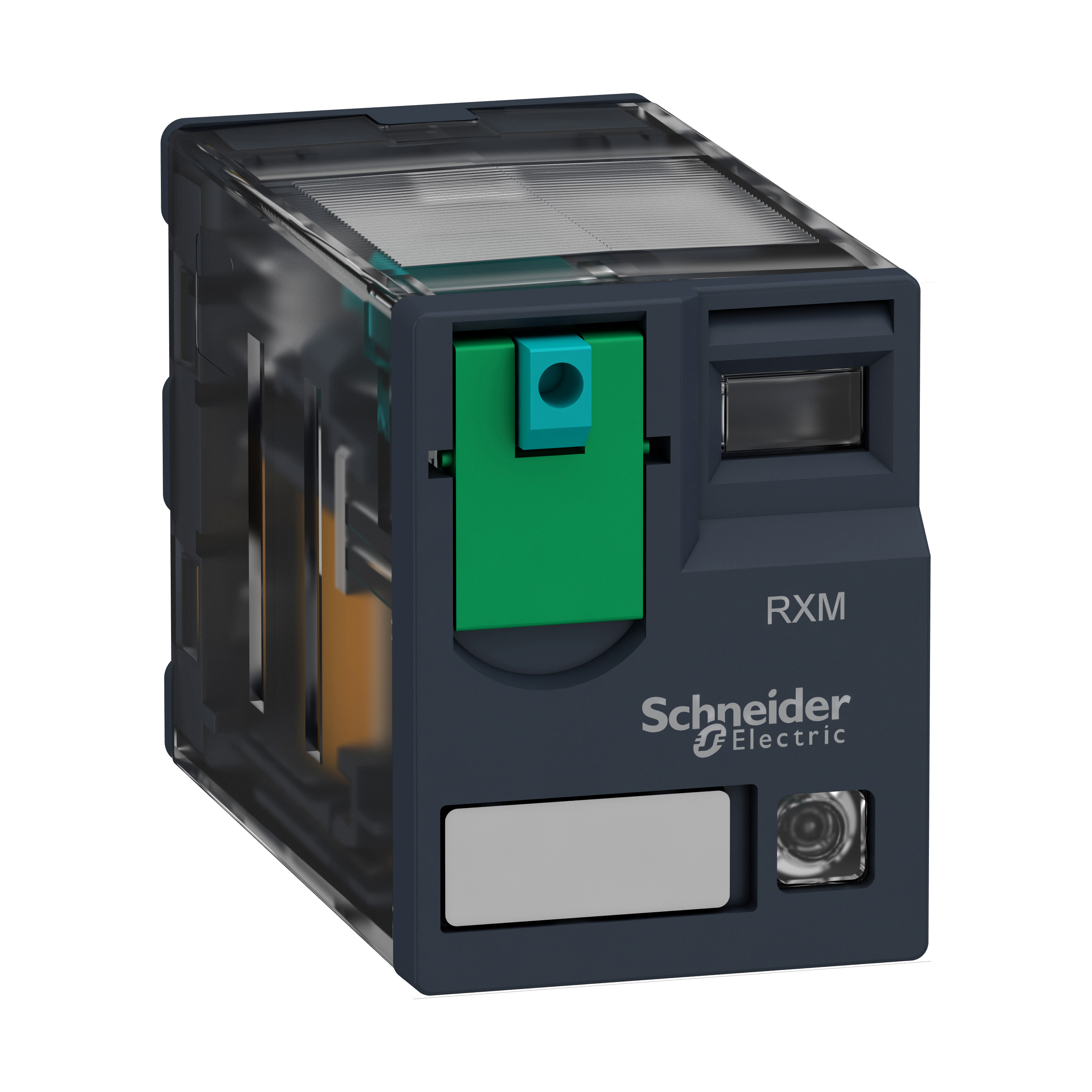

Schneider Electric RXM4GB2BD PLUG-IN RELAY 250V 3A
Custom_Product_Images_Illustration
Schneider Electric RXM4GB2BD PLUG-IN RELAY 250V 3A
SKU353906
MFGR #RXM4GB2BD
Your Cost: $8.73/ea
Schneider Electric RXM4GB2BD PLUG-IN RELAY 250V 3A RXM +OPTIONS,(NO) AC 20ms DC 20ms (NC) AC 20ms DC 20ms,-40 to 131deg.F (-40 to 55deg.C),1200 operating cycles/hour,24 VDC,3A,4 NO/4 NC 4PDT,650 Ohms,Flat/Spade (Faston Type),IP 40 conforming to IEC/EN 60529,Miniature Relay,Plug-In Socket (DIN rail or Flange with adapter),UL Listed - CSA Certified - CE Marked - RoHS Compliant
Schneider Electric RXM4GB2BD PLUG-IN RELAY 250V 3A RXM +OPTIONS,(NO) AC 20ms DC 20ms (NC) AC 20ms DC 20ms,-40 to 131deg.F (-40 to 55deg.C),1200 operating cycles/hour,24 VDC,3A,4 NO/4 NC 4PDT,650 Ohms,Flat/Spade (Faston Type),IP 40 conforming to IEC/EN 60529,Miniature Relay,Plug-In Socket (DIN rail or Flange with adapter),UL Listed - CSA Certified - CE Marked - RoHS Compliant
Alternate Catalog Number RXM4GB2BD Amperage Rating 3 A ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number RXM4GB2BD Coil 24 V DC Coil Voltage 24 VDC Connection FLAT/SPADE (FASTON TYPE) Contact Configuration 4 C/O Contact Form 4NO-4NC 4PDT Country of Origin CN Currency USD Dimensions 1.06 in H x 1.57 in W x 0.82 in D Enclosure IP 40 CONFORMING TO IEC/EN 60529 Enclosure Type IP40 EU RoHS Indicator Y Gross Volume Per Pack 1.58 Gross Volume per Pack Metric 25.89 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0800 lb Gross Weight per Pack Metric 36.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536410050 Height 2.0000 in Height [Metric] 2.0000 cm Item Group 21127 Length 4.5000 in Length [Metric] 4.5000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=649770&lang=en-us Mounting PLUG-IN SOCKET (DIN RAIL OR FLANGE WITH ADAPTER) Mounting Type DIN Rail/Flange Number Of Poles 8 Operating Temperature -40 TO 131¦F (-40 TO 55¦C) Power Rating 0.9 W Resistance 650 OHMS Returnable Y Series RXM Standard UL LISTED - CSA CERTIFIED - CE MARKED - ROHS COMPLIANT Stock Status NONSTOCK Sub Brand RXM Substitute Product Catalog Number RXM021BN Temperature Rating -40 to 131 °F Terminal Type Faston/Flat Pin Type Plug-in relay;Flat UNSPSC 39122326 UPC 11 78590161668 UPC 12 785901616689 Warranty Description Contractual Warranty:18 months Width 2.5000 in Width [Metric] 2.5000 cm (NO) AC: 20MS DC: 20MS (NC) AC: 20MS DC: 20MS Gold flash contacts Multiple-pole contact options for simultaneous control of separate, individual circuits signature full feature covers Test button allows users to check circuits for proper operation Lock down door holds contacts in place to test circuits during maintenance Standard mechanical flag indicates relay status Wide selection of sockets with mixed or separate coil and contact terminals
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | RXM4GB2BD |
| Amperage Rating | 3 A |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | RXM4GB2BD |
| Coil | 24 V DC |
| Coil Voltage | 24 VDC |
| Connection | FLAT/SPADE (FASTON TYPE) |
| Contact Configuration | 4 C/O |
| Contact Form | 4NO-4NC 4PDT |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.06 in H x 1.57 in W x 0.82 in D |
| Enclosure | IP 40 CONFORMING TO IEC/EN 60529 |
| Enclosure Type | IP40 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1.58 |
| Gross Volume per Pack Metric | 25.89 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0800 lb |
| Gross Weight per Pack Metric | 36.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536410050 |
| Height | 2.0000 in |
| Height [Metric] | 2.0000 cm |
| Item Group | 21127 |
| Length | 4.5000 in |
| Length [Metric] | 4.5000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=649770&lang=en-us |
| Mounting | PLUG-IN SOCKET (DIN RAIL OR FLANGE WITH ADAPTER) |
| Mounting Type | DIN Rail/Flange |
| Number Of Poles | 8 |
| Operating Temperature | -40 TO 131¦F (-40 TO 55¦C) |
| Power Rating | 0.9 W |
| Resistance | 650 OHMS |
| Returnable | Y |
| Series | RXM |
| Standard | UL LISTED - CSA CERTIFIED - CE MARKED - ROHS COMPLIANT |
| Stock Status | NONSTOCK |
| Sub Brand | RXM |
| Substitute Product Catalog Number | RXM021BN |
| Temperature Rating | -40 to 131 °F |
| Terminal Type | Faston/Flat Pin |
| Type | Plug-in relay;Flat |
| UNSPSC | 39122326 |
| UPC 11 | 78590161668 |
| UPC 12 | 785901616689 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.5000 in |
| Width [Metric] | 2.5000 cm |
| (NO) AC: 20MS DC: 20MS (NC) AC: 20MS DC: 20MS |
| Gold flash contacts |
| Multiple-pole contact options for simultaneous control of separate, individual circuits signature full feature covers |
| Test button allows users to check circuits for proper operation |
| Lock down door holds contacts in place to test circuits during maintenance |
| Standard mechanical flag indicates relay status |
| Wide selection of sockets with mixed or separate coil and contact terminals |
