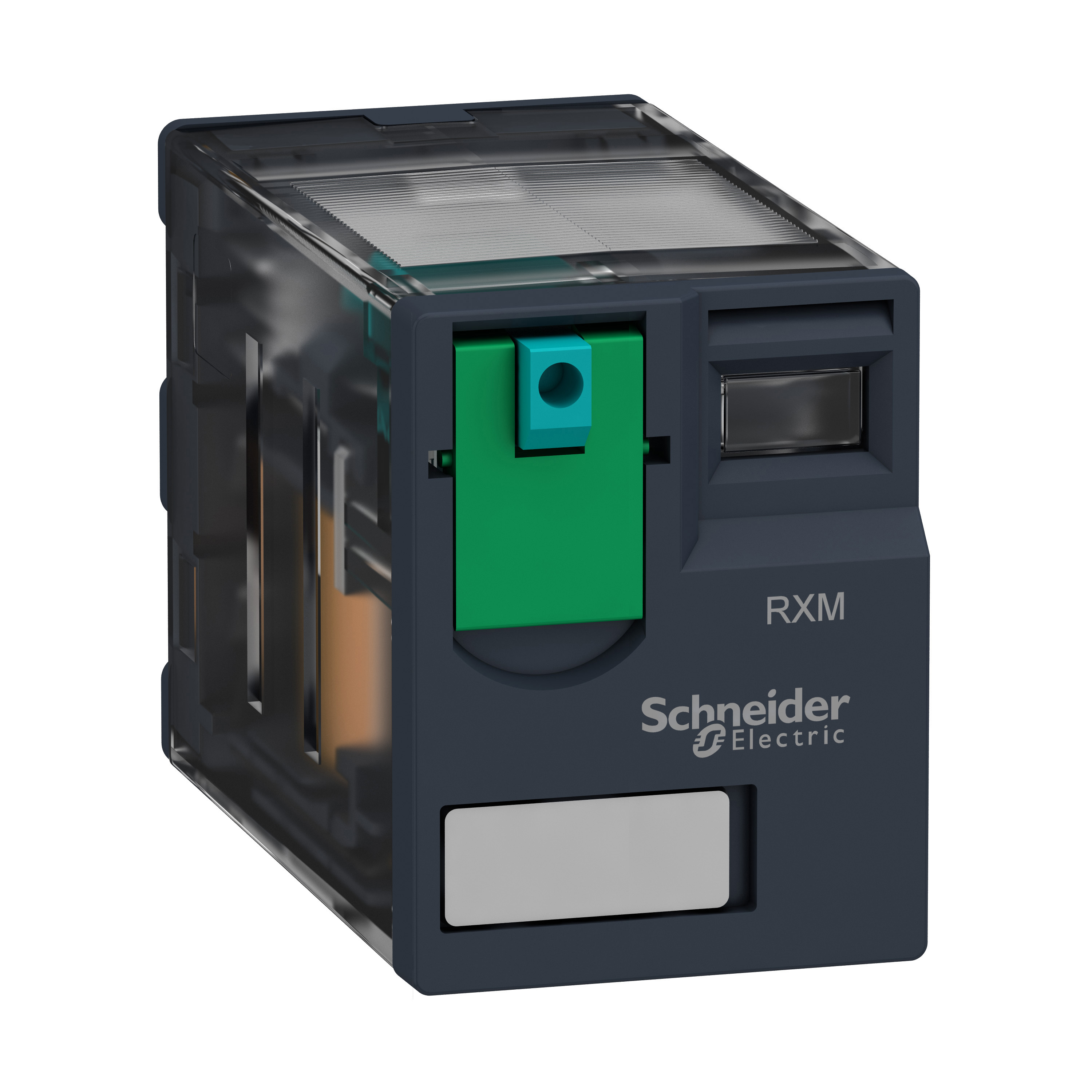

Schneider Electric RXM2AB1BD Socket Relays
Socket Relays
442766
MFG #: RXM2AB1BD
Schneider Electric
7.96000
/ ea
Schneider Electric RXM2AB1BD PLUG-IN RELAY 250V 12A RXM +OPTIONS,(NO) AC 20ms DC 20ms (NC) AC 20ms DC 20ms,-40...55 deg.C,1200 operating cycles/hour,12A,2 C/O,24 VDC,650 Ohm at 20 deg.C +/- 10 ,B300,Flat/Spade (Faston Type),IP 40 conforming to IEC/EN 60529,Miniature,plug-in relay,Plug-In Socket (DIN rail or Flange with adapter),UL Listed - CSA Certified - CE Marked - RoHS Compliant
- 360 Degree View URL - 360(360 Degree View URL)
- Brochure URL - 11003_3TANFYBKU7S6EWQ8.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Catalog URL - Schneider_Electric_RSLZRA1_Catalog.pdf(Catalog URL)
- Brochure URL - 11003_SG4OCZU3B2ND0AEM.pdf(Brochure URL)
- ROHS Compliance URL - Schneider_Electric_RXM2AB1BD_RoHS.pdf(ROHS Compliance URL)
- Video - https://www.youtube.com/embed/W6W-90ovcos(Video)
- Tech Drawing URL - 11003_B5I78LGKFE6DV2UO.dxf(Tech Drawing URL)
- Spec Sheet URL(Spec Sheet URL)
- Tech Drawing URL(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_9T3NEA702K6HQSF5.dxf(Tech Drawing URL)
- Service Manual URL - 11003_2AJE9HQ4UM71CBXV.pdf(Service Manual URL)
- Spec Sheet URL - 11003_FRVS0JHGQ4YOU6E1.pdf(Spec Sheet URL)
- Features
| ANY POSITION |
| Without LED, socket |
| Gold flash contacts |
| Multiple-pole contact options for simultaneous control of separate, individual circuits signature full feature covers |
| Test button allows users to check circuits for proper operation |
| Lock down door holds contacts in place to test circuits during maintenance |
| Standard mechanical flag indicates relay status |
| Wide selection of sockets with mixed or separate coil and contact terminals |
