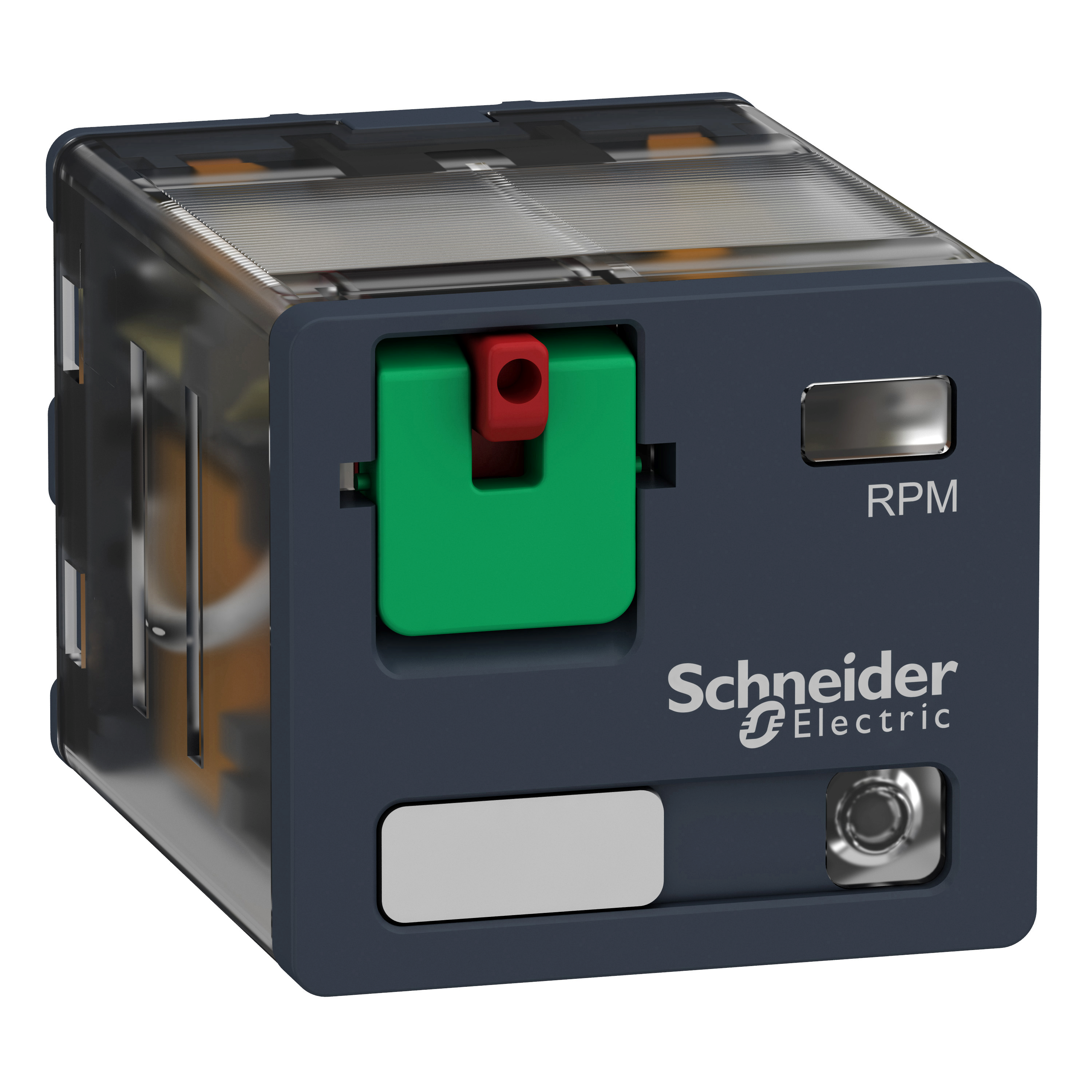

Schneider Electric RPM Power Relay, 15 A, 3CO Contact Form, 120 VAC Coil
Terminal Blocks
504120
MFG #: RPM32F7
Schneider Electric
13.51000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=9513690360Den&ext=webp(360 Degree View URL)
- Brochure URL - c0bb1d2483bc924cd36ec5fa718b0a923188bada.pdf(Brochure URL)
- Catalog URL - SquareD_8501CO16V08_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_KGRUOMQBS7526VC3.pdf(Spec Sheet URL)
- Tech Drawing URL - 2f586336ea34e9b13a00a6e43662566a28f750b9(Tech Drawing URL)
- Video - https://www.youtube.com/embed/R9__kuMEA5U(Video)
- Features
| ANY POSITION |
| Lockable test button |
| Silver alloy (AgNi) contacts |
| Flat pin |
| 15 A at 250 VAC, 15 A at 28 VDC load current |
| 15 A at 277 VAC conforming to UL, 7.5 A at 28 VDC (NC) conforming to IEC, 15 A at 250 VAC (NO) conforming to IEC, 7.5 A at 250 VAC (NC) conforming to IEC, 15 A at 28 VDC (NO) conforming to IEC, 15 A at 28 VDC conforming to UL rated operational current |
| 250 VAC conforming to IEC, 300 VAC conforming to UL, 300 VAC conforming to CSA rated insulation voltage |
| 20 ms operating time |
| 2000 VAC between coil and contact with reinforced insulation and between poles with basic insulation, 1500 VAC between contacts with micro disconnection insulation dielectric strength |
| -40 to 185 deg F storage temperature |
| 18000 cycles/hr no-load, 1200 cycles/hr under load operating rate |
