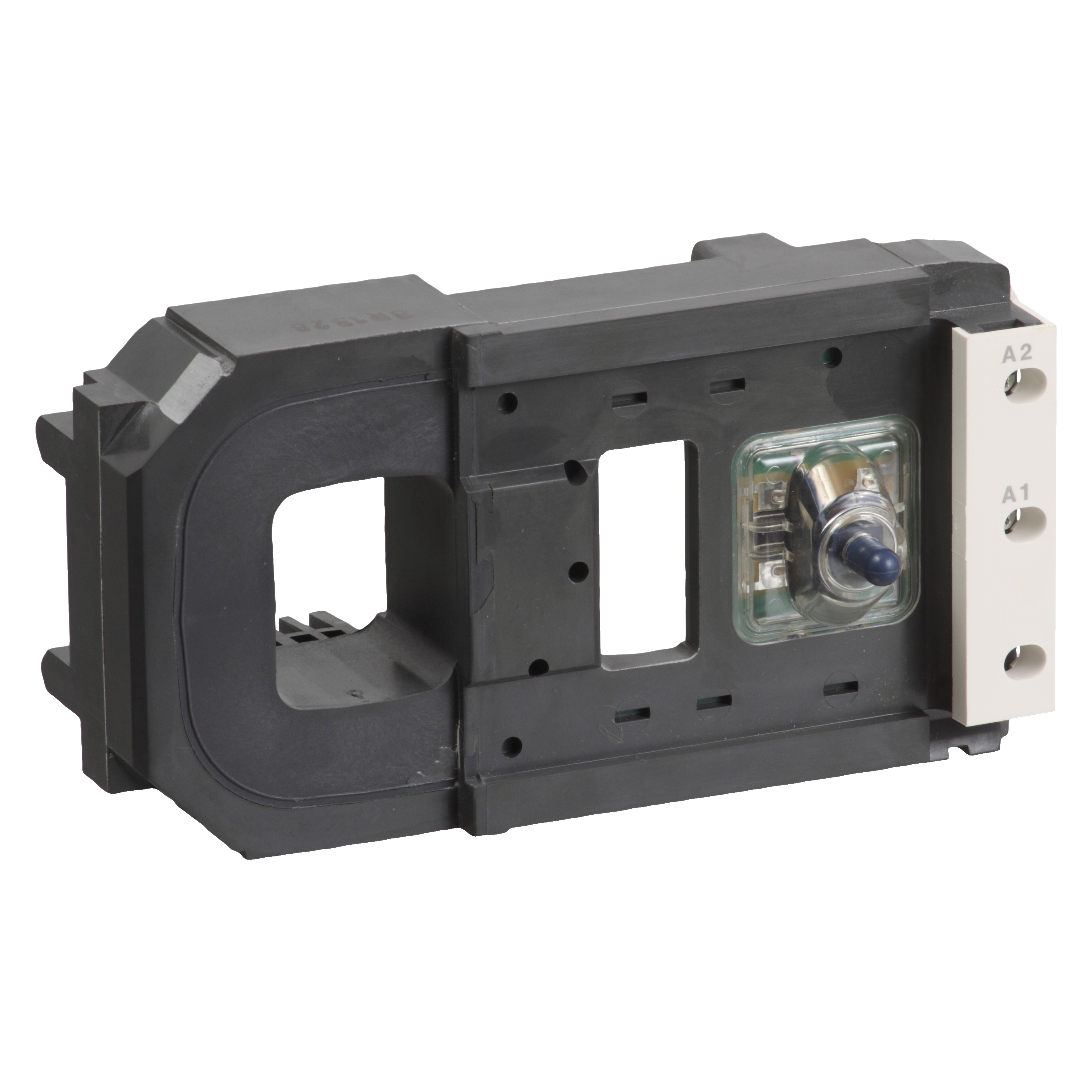

Schneider Electric LX1FK110 TeSys™ F Contactor Coil, 110/120 VAC, 40 to 400 Hz, For Use With LC1 Series Contactor
Contactors
408781
MFG #: LX1FK110
Schneider Electric
547.34000
/ ea
- Brochure URL - 115967977b38aa63fd29e8e8024eb8003e40dffe.pdf(Brochure URL)
- Line Drawing URL - IDW_DOCUMENT_1525147165004.jpeg(Line Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_3B8D4APYGK25W16M.pdf(Service Manual URL)
- Service Manual URL - 11003_UGSAYIR6HJKZQC5B.pdf(Service Manual URL)
- Spec Sheet URL - 11003_3U7MO8LBZQIYCGH1.pdf(Spec Sheet URL)
- Spec Sheet URL - 11003_6UOPVLF283D7KQZY.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/GW6XwNd-Fek(Video)
- Video - https://youtube.com/embed/OaomPiHOkYk(Video)
- Video - https://youtube.com/embed/yrMqDid5P3g(Video)
- Applications
- Features
| TeSys F LC1F contactor;LC1F500 |
| WITHOUT BUILT-IN SUPPRESSOR MODULE |
| 9.55 Ohm inrush at 20 deg C, 260 Ohm holding at 20 deg C average resistance |
| 1.25 H inductance of closed circuit |
| 100 to 170 ms closing, 40 to 65 ms opening operating time |
| 10000000 cycles mechanical durability |
| 2400 cycles/hr at <=131 deg F operating time |
| Without built-in suppressor module coil technology |
| 0.3 to 0.5 Uc at 55 deg C drop-out 40 to 400 Hz, 0.85 to 1.1 Uc at 55 deg C operational 40 to 400 Hz control circuit voltage limits |
| 1100 VA at 20 deg C (cos f 0.9) 40 to 400 Hz inrush power |
| 18 VA at 20 deg C (cos f 0.3) 40 to 400 Hz hold-in power consumption |
| 18 W at 40 to 400 Hz heat dissipation |
| >-5 to 55 deg C ambient air temperature for operation |
| AC control circuit |
