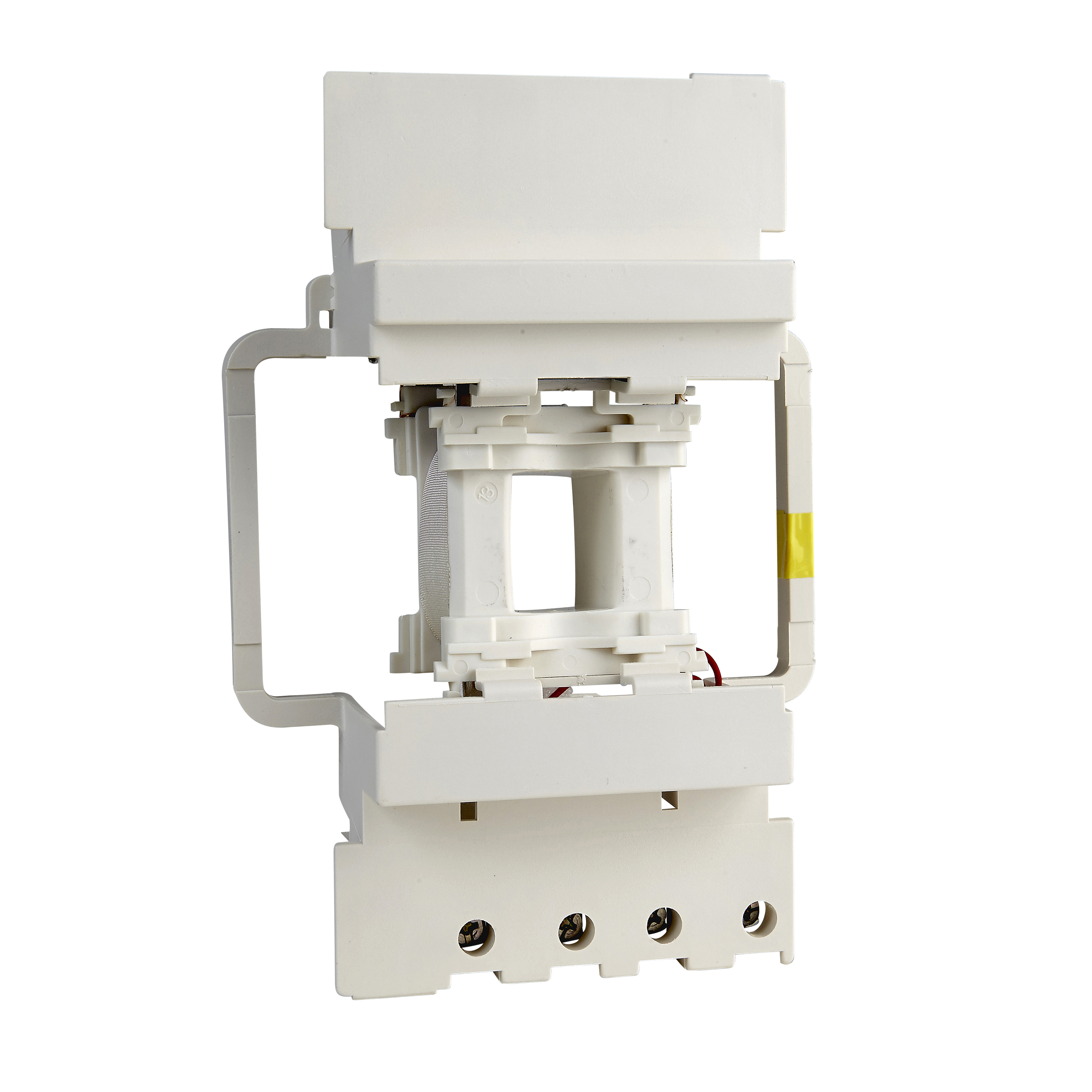

Schneider Electric LX1D8F7 TeSys™ D Contactor Coil, 110 VAC, 50/60 Hz, For Use With LC1D115, LC1D150 Series Contactor
Contactors
474617
MFG #: LX1D8F7
Schneider Electric
124.53000
/ ea
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=998-20803955_GMA-US.pdf(Brochure URL)
- Catalog URL - SCHNEIDER_ELECTRIC_LA1KN22_Catalog.pdf(Catalog URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_NQHO54028GBPDRJK.pdf(Service Manual URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_ZMTBLI8E2OY31A4W.pdf(Spec Sheet URL)
- Video - https://youtube.com/embed/OaomPiHOkYk(Video)
- Video - https://youtube.com/embed/yrMqDid5P3g(Video)
- Applications
- Features
| LC1D150;LC1D115 |
| WITHOUT BUILT-IN SUPPRESSOR MODULE |
| 4377 Ohm at 68 deg F average resistance |
| 109.69 H inductance of closed circuit |
| 8000000 cycles mechanical durability |
| 1200 cycles/hr at <=140 deg F |
| Without built-in suppressor module coil technology |
| 0.3 to 0.5 Uc at 131 deg F drop-out 50/60 Hz control circuit voltage limits, 0.8 to 1.15 Uc at 131 deg F operational 50/60 Hz |
| 280 to 350 VA at 68 deg F (20 deg C) (cos0.9) 60 Hz, 280 to 350 VA at 68 deg F (20 deg C) (cos0.9) 50 Hz inrush power in VA |
| 2 to 18 VA at 68 deg F (cos0.9) 50 Hz, 2 to 18 VA at 68 deg F (cos0.9) 60 Hz hold-in power consumption in VA |
| 3 to 4.5 W at 50/60 Hz heat dissipation |
| 23 to 140 deg F ambient air temperature for operation |
