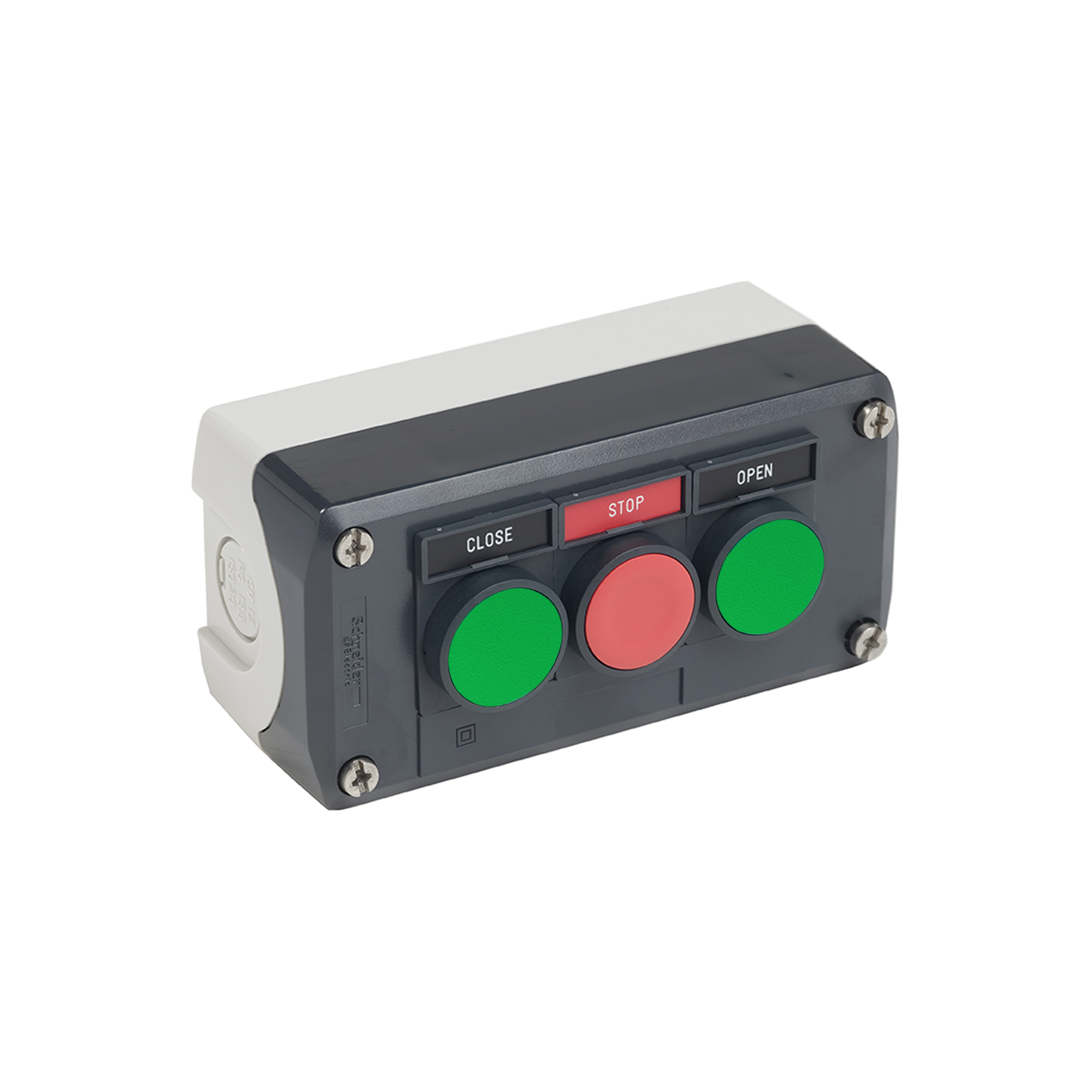

Schneider Electric Harmony™ Square D™ XALD351H29H7 Complete Pushbutton Control Station, 600 VAC, 6 A, 2NO-1NC Contact, 3 Operators, NEMA 4X/13/IP67/IP66/IP69K/IP69/IK03 NEMA Rating
Pushbutton Control Stations
1127982
MFG #: XALD351H29H7
Square D™
150.80000
/ ea
Schneider Electric Harmony™ Square D™ Pushbutton Control Station, Complete, Series: XALD, 600 VAC, 6 A, 3 Operators, 2NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 VAC, 2.5 A at 24 VDC Contact, Legend: Open/Stop/Close, Pushbutton Actuator, Screw Clamp Connection, NEMA 4X/13/IP67/IP66/IP69K/IP69/IK03 NEMA Rating, Surface Mounting, -40 to 70 deg C Operating, Polycarbonate, Dark Gray/Light Gray, 2.68 in W x 5.27 in D x 2 in H Dimensions
- 360 Degree View URL - files?p_Doc_Ref=XALD351H29H7_360_2023(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=11914508360Den&ext=webp(360 Degree View URL)
- Service Manual URL - 11003_9TXOCVL4GMIUW1PN.pdf(Service Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Brochure URL - c51ffcbb387ebfdb576200b45204d2faf23ee7ba.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XALD351H29H7.STP(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 11003_14SWOFTDZAP83NLQ.pdf(Spec Sheet URL)
- Spec Sheet URL(Spec Sheet URL)
- Service Manual URL - 11003_F9S61MOZLYWRJ2Q5.pdf(Service Manual URL)
- Service Manual URL - files?p_enDocType=End of life manual&p_File_Name=ENVEOLI1806010EN_V1.pdf(Service Manual URL)
- Applications
- Features
| For XB5 22 mm control and signaling units applications |
| IK03 CONFORMING TO EN 50102,IP67-IP66 CONFORMING TO IEC 60529-IP69K-IP69 |
