Schneider Electric HCJ36918MP HCJ Interior Panel, 800 A
Panelboard Interiors
1356704
MFG #: HCJ36918MP
Square D™
14901.00000
/ ea

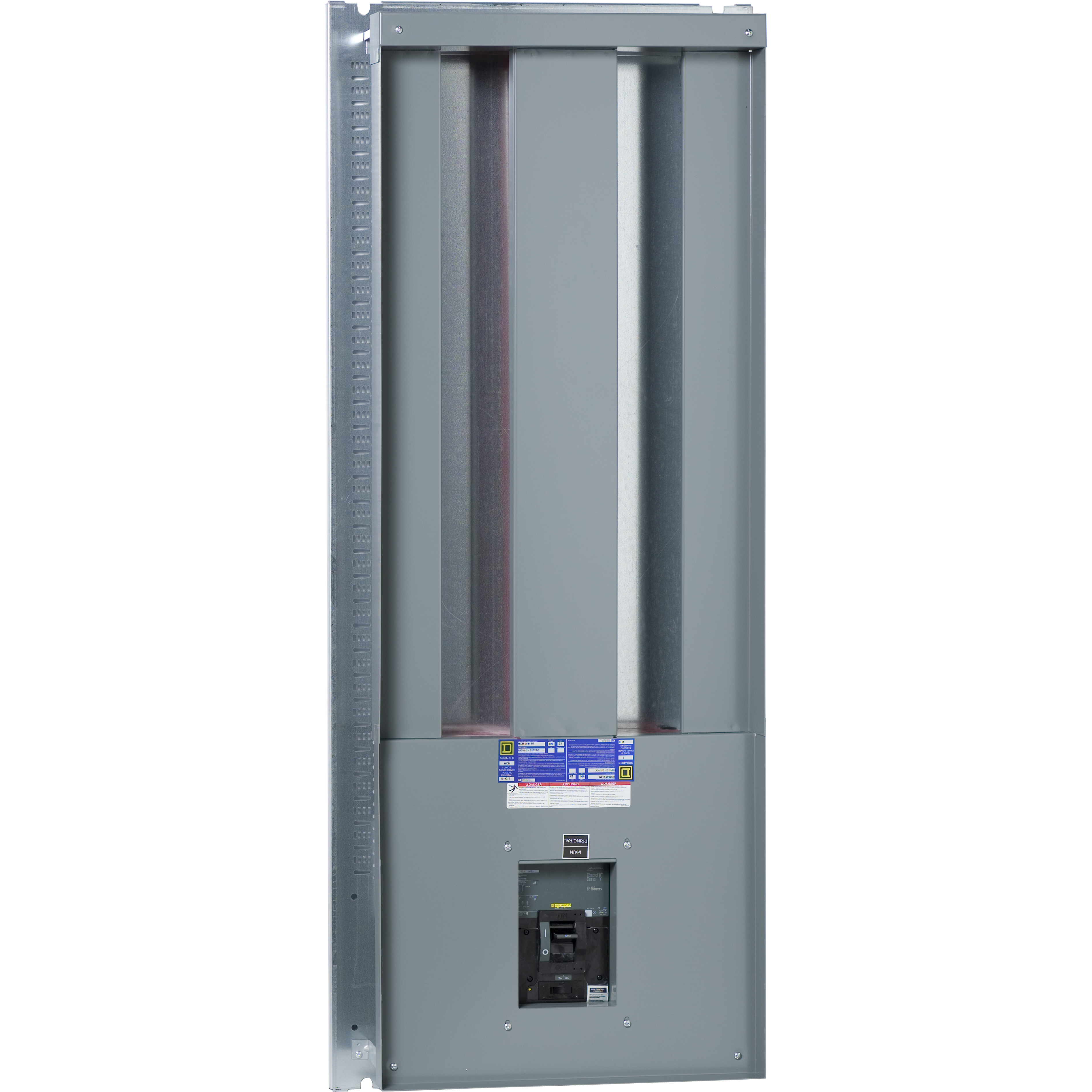

Schneider Electric HCJ36918MP, Interior Panel, HCJ, 800 A, B/J/H/Q/QO Breaker, Distribution Enclosure Enclosure, 73 in H x 28.5 in W x 9.5 in D Dimensions
- Brochure URL - 20ebda625aea586bc898b8e30954a51d38425d30.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=HCJ36XX8MP-03_2D.dwg(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_IN9SJE84KGURZO0B.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=80043-620-02.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_YNRKFV7APC9I45ZQ.pdf(Spec Sheet URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=2120DB0201.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_CNKJMZLRV6Y219BG.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_YNWIQ4U52FDRT7VE.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=PBA472_EN.DWG(Tech Drawing URL)
- Features
600 Vac, 250 Vdc maximum |
1200 Amp main circuit breaker or main lugs |
1200 Amp maximum branch circuit breaker |
Main Lug interiors are field convertible for top or bottom feed |
Dead front trim is easily installed |
Branch circuit breaker mounting flexibility; capable of mounting a 15 A circuit breaker next to or across from a 1200 A circuit breaker |
Circuit breakers on right-hand side of I-Line bus stack completely independent of position and frame size of circuit breakers on left-hand side |
Circuit breaker plug-on jaws have no fasteners - less time spent on installation and maintenance |
Circuit breaker connections are "blow-on" type which draw the connector jaws together, providing a firmer grip under high level short circuit conditions |
With toxic heavy metal free |
With toxic heavy metal free |
