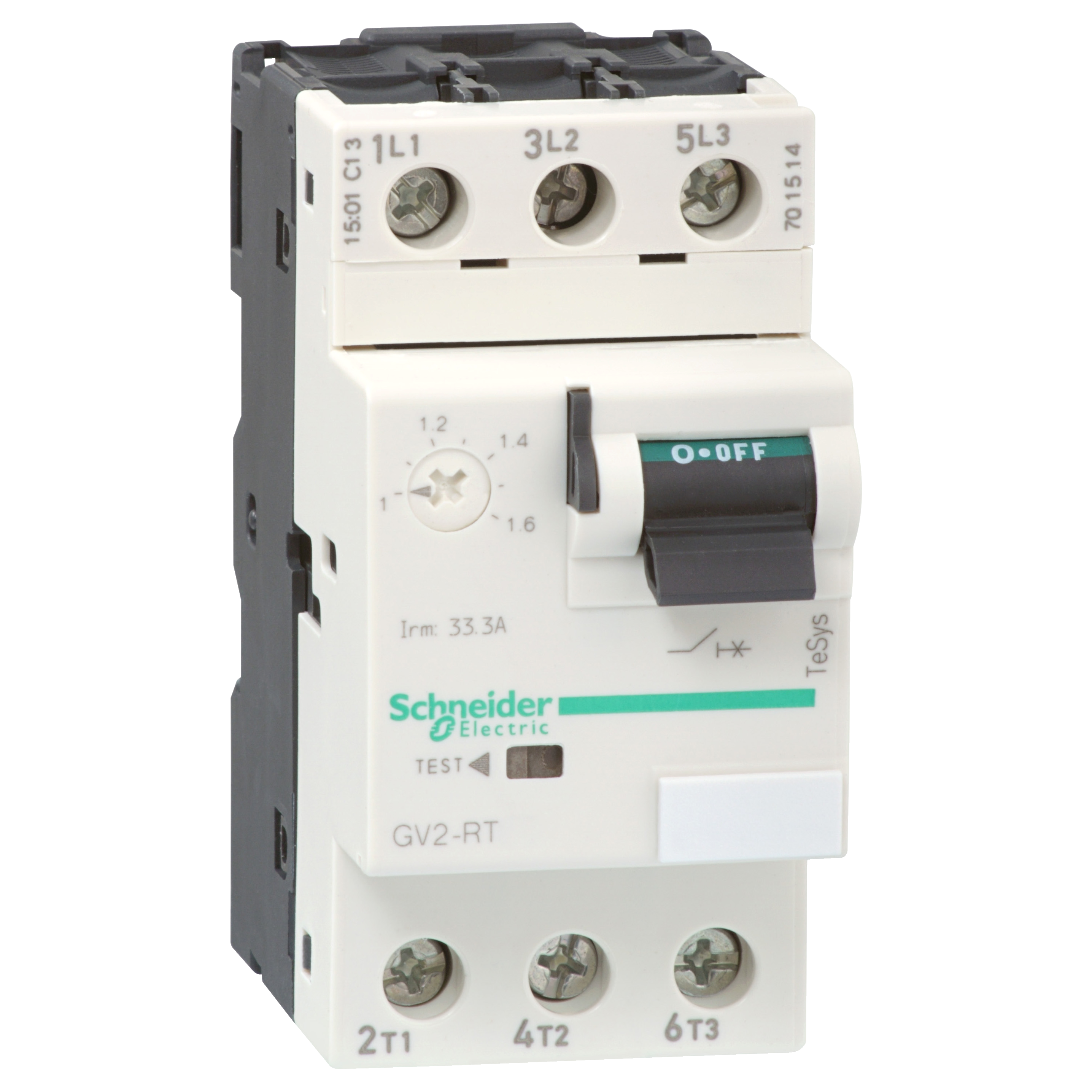

Schneider Electric GV2RT08 Manual Starters
Manual Starters
212310
MFG #: GV2RT08
Schneider Electric
192.41000
/ ea
Schneider Electric GV2RT08 MANUAL STARTER 600VAC 4AMP IEC,-20...60 deg.C,100000 cycles,3P,4 A?conforming to?IEC 60947-4-1,690 V AC 50/60 Hz conforming to IEC 60947-2,690 V AC 50/60 Hz conforming to IEC 60947-2,EN 60204, IEC 60947-1, IEC 60947-2, IEC 60947-4-1, NF C 63-120, NF C 63-650, NF C 79-130, UL 508, VDE 0113, VDE 0660, CSA C22.2,GV2RT,circuit breaker,IP20 conforming to IEC 60529,TeSys,TeSys GV2,by clips-by screws,motor protection, transformer protection,screw clamp terminals
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8144910360Den&ext=webp(360 Degree View URL)
- Brochure URL - b271386a410f0e59146c773fcdaf71c5c7b1c4ee.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_D2G7BZUV4P1CJIHE.pdf(Install Instructions 1 URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPD0003993_2D-right.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_A0TCFRYHP71DOML6.pdf(Spec Sheet URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- ROHS Compliance URL - Schneider_Electric_GV2RT08_RoHS.pdf(ROHS Compliance URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=EoLI_ENVEOLI121004EN_V5.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/JTJzM9Yur5o(Video)
- Tech Drawing URL - 983ade7bc77391301429fe620f7a2ffdf71c0d8f.pdf(Tech Drawing URL)
- Applications
- Features
| TRANSFORMER-MOTOR |
| IK04,IP20 CONFORMING TO IEC 60529 |
| Manual and local control, when the motor circuit-breaker is used on its own and automatic and remote control when combined with a contactor |
| Motor protection provided by thermal magnetic devices built into the circuit breaker |
| No live parts are accessible to direct finger contact |
| The addition of an undervoltage trip enables the motor circuit breaker to be tripped if voltage is lost |
| The addition of a shunt trip enables remote control of tripping |
| The control for the open or enclosed motor circuit breaker can be locked in the "N/C" position using 3 padlocks |
| The system manages motors and other electrical loads up to 40 hp |
| Up to 20 modules and 1 bus coupler (up to 112 cm L) |
| One click mounting on DIN rail and no need for control wiring on modules |
| No auxiliary wiring required, thanks to full connectivity over fieldbus |
| All adjustments and setting are digitized, no mechanical dials or dip switches |
| Energy monitoring at load level |
| Detect and solve issues before your machine stops |
| Gain better insight to the operation and performance of the machine |
| Decrease time to market, helping improve project profitability |
| 0.55/0.75 kW at 220/230 VAC, 1.1/1.5 kW at 400/415 VAC, 1.5 kW at 440/500 VAC, 2.2 kW at 500/690 VAC, 3 kW at 690 VAC motor rating |
