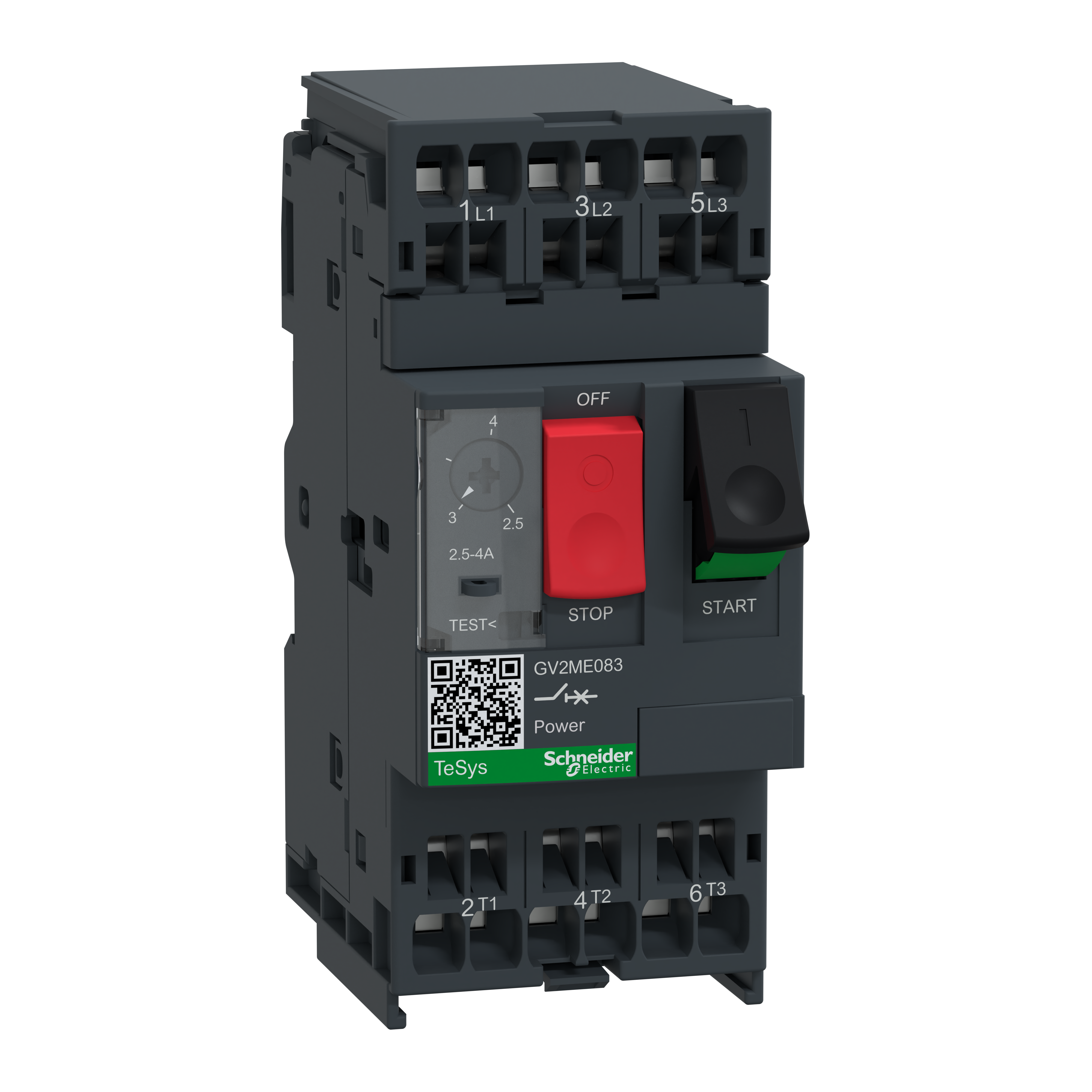

Schneider Electric GV2ME083 MANUAL STARTER 600VAC
Manual Starters
627339
MFG #: GV2ME083
Schneider Electric
203.98000
/ ea
Schneider Electric GV2ME083 MANUAL STARTER 600VAC 4AMP IEC,-20...60 deg.C,0.125HP115VAC - 0.334HP230VAC 0.75HP200VAC - 1HP230VAC - 2HP460VAC - 3HP575VAC,100000 cycles,3-Pole,690 V AC 50/60 Hz conforming to IEC 60947-2,690 V AC 50/60 Hz conforming to IEC 60947-2,Ambient Compensated Bimetallic (Class 10) 2.5A to 4.0A,GV2ME,circuit breaker,IP20 conforming to IEC 60529,Spring Clip,TeSys,TeSys GV2,UL Listed File Number E164864 NLRV - CSA Certified File Number LR81630 Class 3211 05 - CE Marked,by clips-by screws
- 360 Degree View URL - index.html?pid=11003&id=8087215360Den&ext=webp(360 Degree View URL)
- Brochure URL - b271386a410f0e59146c773fcdaf71c5c7b1c4ee.pdf(Brochure URL)
- ROHS Compliance URL - Schneider_Electric_GV2ME083_RoHS.pdf(ROHS Compliance URL)
- Install Instructions 1 URL - 11003_YPBI174FEM5DJL2X.pdf(Install Instructions 1 URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=GV2ME013_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=EoLI_ENVEOLI121004EN_V5.pdf(Service Manual URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=1672546-08.pdf(User Manual URL)
- Tech Drawing URL - 11003_Z8KGEUW75VSBODXM.dwg(Tech Drawing URL)
- Spec Sheet URL - 11003_GDW85YZNS7QKX03O.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/JTJzM9Yur5o(Video)
- User Manual URL - 11003_63KGX0PSQNERM91L.pdf(User Manual URL)
- Applications
- Features
| MOTOR |
| IK04,IP20 CONFORMING TO IEC 60529 |
| The basic motor starter GV2ME controls motors with full load currents up to 32 A |
| Magnetic instantaneous short circuit protection |
| Test trip mechanism |
| The addition of an undervoltage trip enables the motor circuit breaker to be tripped if voltage is lost |
| The addition of a shunt trip enables remote control of tripping |
| Provision for padlocking in the OFF position standard |
| Fingersafe™ terminals (meets IP20 standards) |
| The system manages motors and other electrical loads up to 40 hp |
| Up to 20 modules and 1 bus coupler (up to 112 cm L) |
| One click mounting on DIN rail and no need for control wiring on modules |
| No auxiliary wiring required, thanks to full connectivity over fieldbus |
| All adjustments and setting are digitized, no mechanical dials or dip switches |
| Energy monitoring at load level |
| Detect and solve issues before your machine stops |
| Gain better insight to the operation and performance of the machine |
| Decrease time to market, helping improve project profitability |
| 1/8 hp at 115 VAC, 0.334 hp at 230 VAC, 3/4 hp at 200 VAC, 1 hp at 230 VAC, 2 hp at 460 VAC, 3 hp at 575 VAC motor rating |
