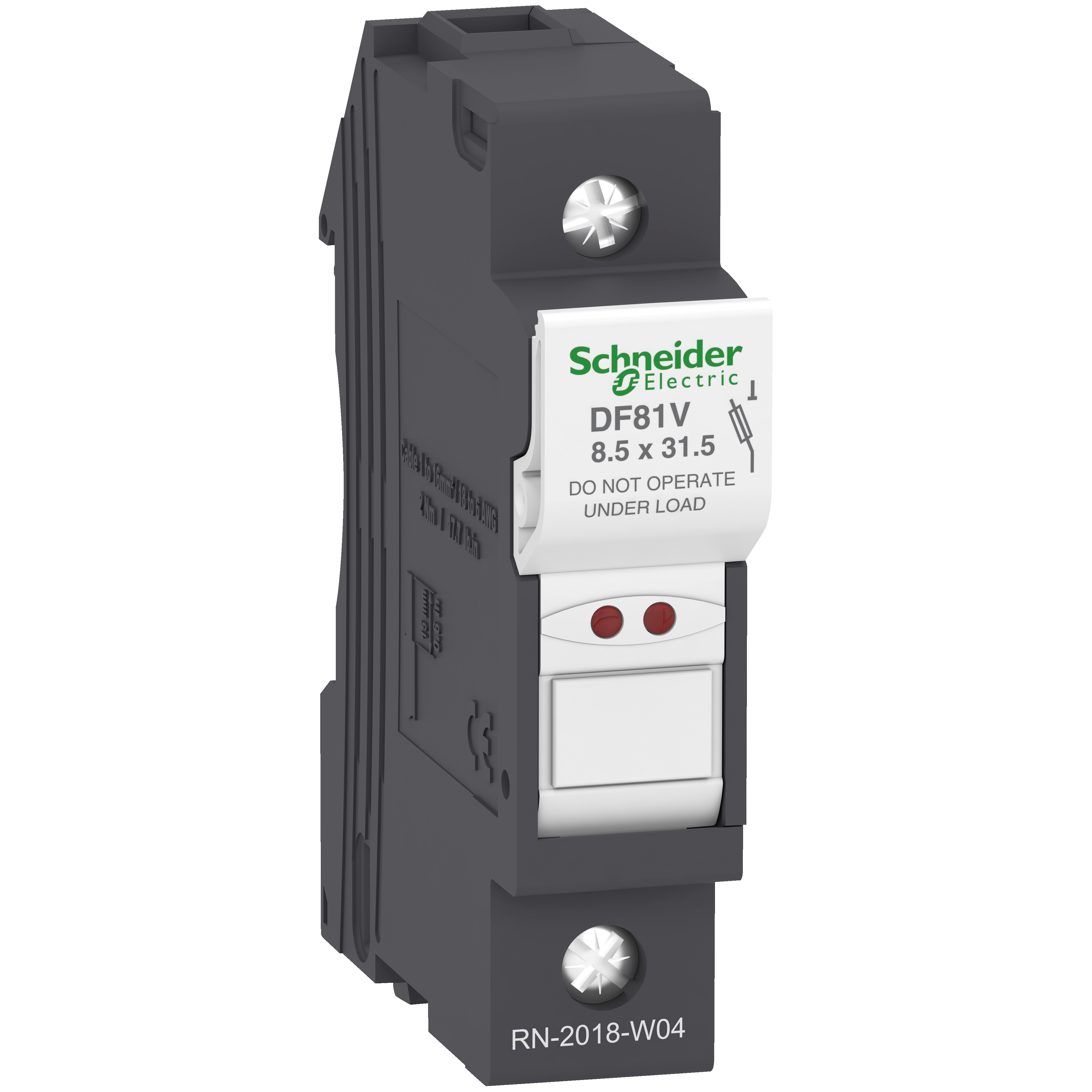

Schneider Electric DF81V DF Series, 25 A
UL Class Power Fuse Holders
1373952
MFG #: DF81V
Schneider Electric
14.70000
/ ea
Schneider Electric DF81V, DF Series, 25 A, Screw Clamp Terminal Connection, -40 to 158 deg F, 3.13 in H x 0.69 in W x 2.40 in D Dimensions
- Brochure URL - 11003_HTUJC3SRKP8EDY1N.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_GTQU8NV73Z5S6BA1.pdf(Service Manual URL)
- Service Manual URL - 11003_L32VKXAS5TUQ8EDN.pdf(Service Manual URL)
- Spec Sheet URL - 11003_51TK79FSMRHY0NBG.pdf(Spec Sheet URL)
- Applications
- Features
| 8.3 x 31.5 mm |
| Blown fuse indication;Set of 12 |
| Fuses from 25A to 125A |
| Compact size helps to reduce the overall size of the installation |
| Ergonomic handle for easier opening |
| LED blown fuse indicator |
| Dual position locking system for easy DIN-rail mounting |
| Multi-pole configurations 1P, N, 1P+N, 2P, 3P, 3P+N |
| Protection against direct finger contact |
| TeSys LS1 |
| 45 mm wide mounting dimensions, matching TeSys starters and contactors |
| US Fuse Types CC, KTK-R |
| US Fuse Types CC, KTK-R |
| European Fuse Types aM, gG |
| Rated 30A, 600 Vac, 3 phase |
| Uses screw clamp terminations (spring terminal version under development) |
| Connects to LC1D09 through LC1D38 contactors (with use of GV2AF3 connector or GV2AF4) |
| Meets application needs for fusible starter |
| 8.3 x 31.5 mm fuse size |
| 500 V AC ui rated insulation voltage |
| 6 kV uimp rated impulse withstand voltage |
