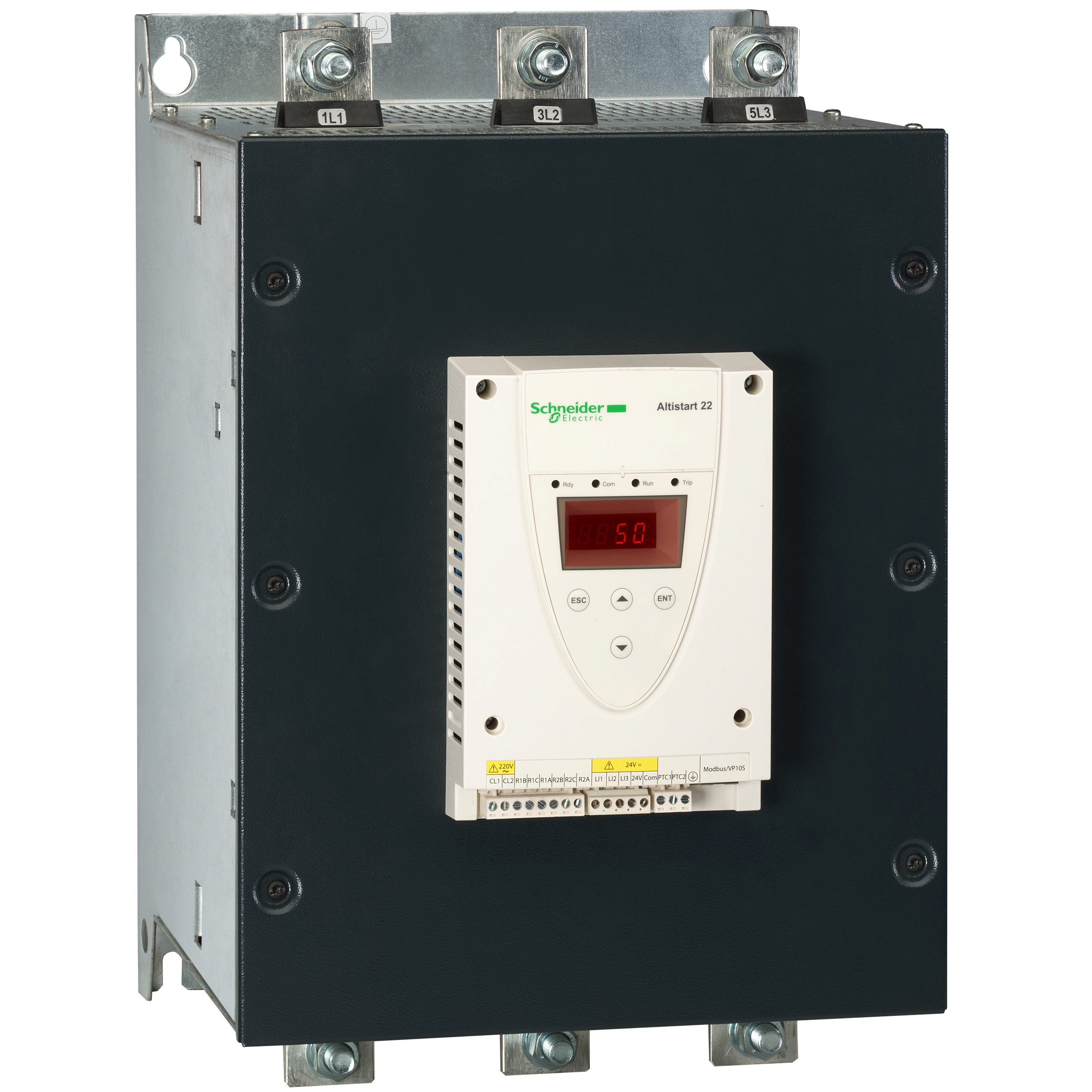

Schneider Electric Altistart 22 Square D™ ATS22C48S6U Integrated Bypass Soft Starter With Heat Sink, 110 VAC V Coil, IP00 Enclosure
Open Soft Starters
1118057
MFG #: ATS22C48S6U
Square D™
5862.84000
/ ea
Schneider Electric Altistart 22 Square D™ Soft Starter, Integrated Bypass, Series: ATS22, 208 to 600 VAC, 480 A, 50/60 Hz Frequency, 150 hp, 350 hp, 400 hp Motor, 110 VAC Coil, 3 ph, RJ45 Connection, IP00 Enclosure, -10 to 40 deg C Operating, 17.91 in H x 11.97 in W x 13.37 in D Dimensions
- Brochure URL - 11003_C9XPMSHBGA4Q63U2.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Service Manual URL - 11003_FKW5OTHDSBQARL7I.pdf(Service Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Install Instructions 1 URL - 11003_53FDN6Y91W4CBKQO.pdf(Install Instructions 1 URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADID0000846_2D-left.dwg(Computer~Aided [CAD|BIM] Model URL)
- User Manual URL - 11003_TXKQGDC8FYBL7IJW.pdf(User Manual URL)
- Spec Sheet URL - 11003_5GLUYX2SI0W4RDKF.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_S2G6TUD5QWKOVZF4.pdf(Tech Bulletin URL)
- Service Manual URL - 11003_UJ35BNX4D87YILQF.pdf(Service Manual URL)
- User Manual URL - 11003_8HMCBEY59AQDURTP.pdf(User Manual URL)
- Tech Bulletin URL - 11003_MEPQZGXC07I5R6OS.pdf(Tech Bulletin URL)
- Tech Drawing URL - sales?sn=ATS22C48S6U(Tech Drawing URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=ATS22_Quick_Start_Annex_S1A14738_07.pdf(User Manual URL)
- Applications
- Features
| HVAC Supply and Return Fans, Cooling Tower Fans and Pumps, Chiller Water and Hot Water Pumps, Domestic Water Pumps, Exhaust and Ventilation Fans Application |
| INTERNAL BYPASS |
| Provides smooth starting for your pumps, fans, compressors and machinery, avoiding mechanical stresses and extending their service life progressive start limits the starting and stopping noise of motors |
| Reducing hearing discomfort for operators on the work floor slim form factor improves versatility |
| Allows mounting in frames of any kind of machines multi-function product can replace multiple components |
| Less cost to stock spares possibility to start motors with a non-zero voltage |
| Overcome difficult or high torque starts precise control over start time gives capability to match your system's inertia and mechanical limits integrated bypass reduces noise |
| Decreases heat dissipation soft stop Function to damaging effects of brutal motor stops: limit mechanical stress on your system motor monitoring Function gives ability to detect blocks and errors |
| To prevent damage to your equipment compatibility with so move software allows configurations and settings to be easily transferred, meaning spares can be quickly installed |
| 150 hp at 208 VAC, 350 hp at 460 VAC, 400 hp at 575 VAC motor rating |
