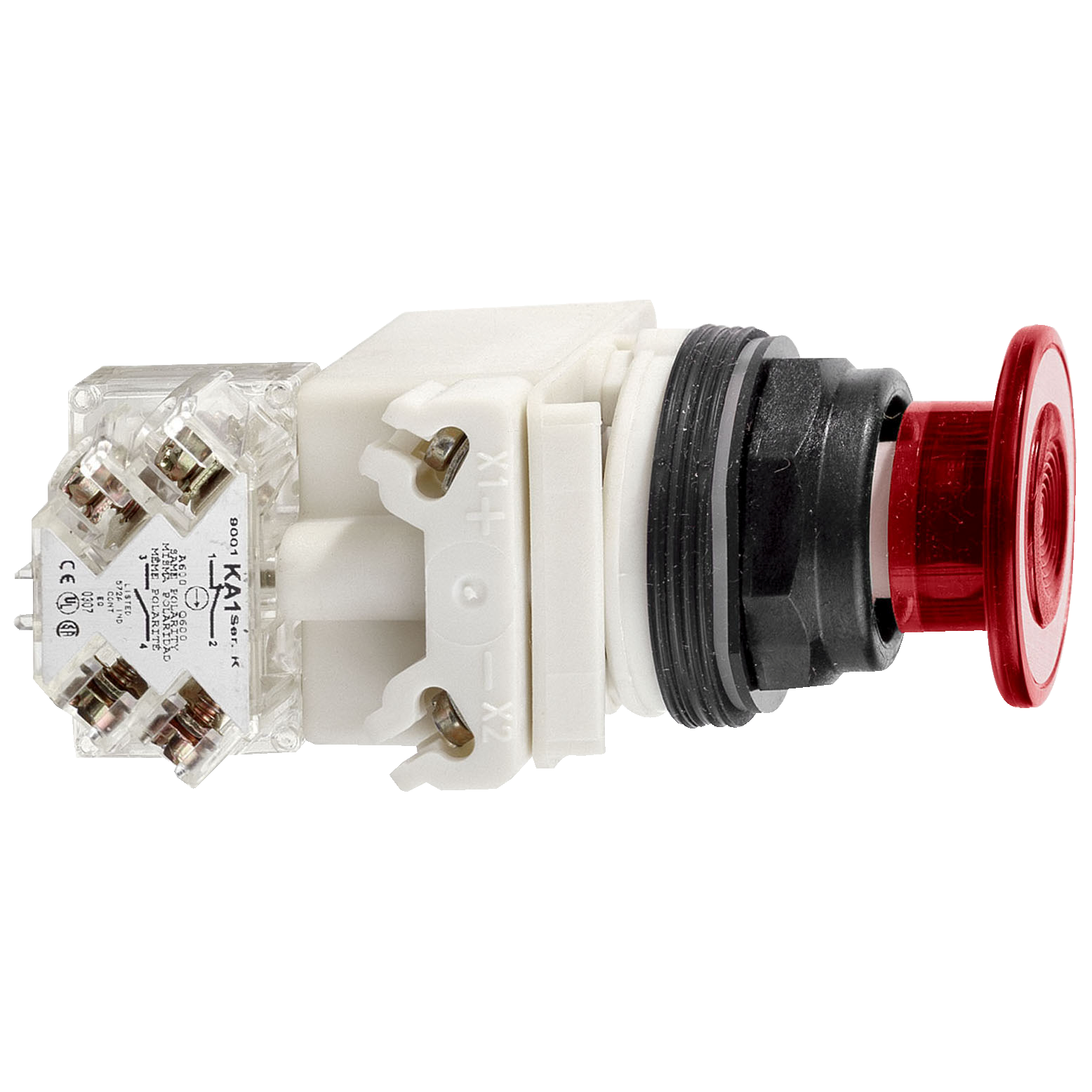

Schneider Electric 9001SKR9P35LRR Illuminated Pushbutton, 30 mm, Push/Pull Operator, Red
Pilot Devices
282309
MFG #: 9001SKR9P35LRR
Square D™
244.91000
/ ea
Schneider Electric 9001SKR9P35LRR PUSHBUTTON 28V 30MM SK +OPTIONS,30mm Round,600V,AC15 - DC13,Harmony,Illuminated,Maintained (Push/Pull),NEMA 1/2/3/3R/4/4X/6/12/13,No Contact Blocks,Panel,Pushbutton,UL File Number E42259 CCN NKCR - CSA File Number LR24590 Class 3211-03 - CE Marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor)
- Brochure URL - 11003_8QOJYL9EPK6C5SGW.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=9001BR1001_30mmPushButtons.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_HVBPFSI06KXJOCWD.pdf(Install Instructions 1 URL)
- Catalog URL - IDW_DOCUMENT_12298800a20ab14d251012dfd03b272c64e6f12448248e11314caf8654fb215f.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SKR9P35LRR.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9001SKR9P35LRR.DWF(Computer~Aided [CAD|BIM] Model URL)
- Spec Sheet URL - 9001SKR9P35LRR(Spec Sheet URL)
- Tech Drawing URL - 11003_UTNS2Z31AMJ8YO9C.pdf(Tech Drawing URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Tech Drawing URL - 11003_KXTB6Z84L2HY30A7.pdf(Tech Drawing URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 11003_KRYB02C8Z9TUSQA1.pdf(Spec Sheet URL)
- Tech Drawing URL - 4000a49dd6f92c982ac65667c3dd6ebedab94a9e(Tech Drawing URL)
- Install Instructions 1 URL - files?p_File_Name=30072-100-26.pdf(Install Instructions 1 URL)
- Video - https://youtube.com/embed/UeCESHp77Gk(Video)
- Features
| COMPLETE ILLUMINATED MUSHROOM HEAD PUSH-BUTTON,PLASTIC |
| 28 VAC voltage rating |
| Red mushroom 41 mm Dia unmarked operator profile |
| Direct light block supply |
| Round shape of signaling unit head |
| 5000000 cycles mechanical durability |
| Without contact block |
| BA9s base lamp |
| 24 VAC/DC rated supply voltage |
| 7 gn (2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance |
| 50 gn conforming to IEC 60068-2-27 shock resistance |
| AC15 to DC13 contact rating |
| Watertight, dusttight, oiltight and corrosion-resistant (indoor/outdoor) environmental conditions |
