Sandvik Coromant

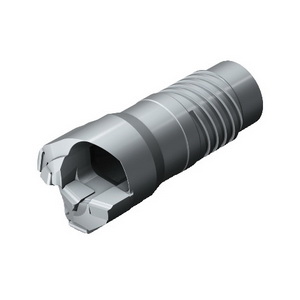

Sandvik Coromant 7046094 CoroDrill® 808 Brazed STS With Internal Chip Evacuation, SZ 5, 1.142 in Dia Max Drill
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 7046094 CoroDrill® 808 Brazed STS With Internal Chip Evacuation, SZ 5, 1.142 in Dia Max Drill
SKU1233213
MFGR #7046094
Your Cost: $189.08/ea
CoroDrill® 808 is a deep hole machining concept designed especially for the STS and Ejector systems. Among many great features, this product is equipped with optimized pad design for good hole finish, unique edge preparation for increased chip breaking, and a reinforced periphery insert corner for added security and reliability. Suitable for diameters from 15.60 to 65.00 mm (0.614-2.559 inch) and tolerance demands of IT 9, CoroDrill 808 is capable of producing perfect holes, regardless of the component material.
CoroDrill® 808 is a deep hole machining concept designed especially for the STS and Ejector systems. Among many great features, this product is equipped with optimized pad design for good hole finish, unique edge preparation for increased chip breaking, and a reinforced periphery insert corner for added security and reliability. Suitable for diameters from 15.60 to 65.00 mm (0.614-2.559 inch) and tolerance demands of IT 9, CoroDrill 808 is capable of producing perfect holes, regardless of the component material.
Catalog Number 7046094 Country of Origin IN Gross Weight Per Pack 0.2200 lb Series CoroDrill® 808 Type Brazed STS Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Back of Head Diameter 0.925 in Head Connection Size SZ 5 Maximum Drill Diameter 1.142 in Overall Length 2-1/2 in Pilot Drill Diameter 0.925 in Pilot Drill Style Brazed STS Pilot Type 1.142 in Long and predictable tool life guarantees high process security High toughness and excellent wear resistance thanks to TiAIN-coated grade Insert geometry optimized for excellent chip breaking Applicable on H, K, M, N, P and S material grades Easy to use Finish ground in 0.01 mm increments Robust design enables high feed rates Sintered insert geometries ensure consistent troublefree chip control in most materials H9 hole tolerance M23 grade CVD coated Carbide body 2.342 in L functional 2500 rpm 0.152 in L point 150XD D hole Axial concentric coolant entry ISO Code: 808-0512D1.142 M23 ANSI Code: 808-0512D1.142 M23 20 life cycle state
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 7046094 |
| Country of Origin | IN |
| Gross Weight Per Pack | 0.2200 lb |
| Series | CoroDrill® 808 |
| Type | Brazed STS |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Back of Head Diameter | 0.925 in |
| Head Connection Size | SZ 5 |
| Maximum Drill Diameter | 1.142 in |
| Overall Length | 2-1/2 in |
| Pilot Drill Diameter | 0.925 in |
| Pilot Drill Style | Brazed STS |
| Pilot Type | 1.142 in |
| Long and predictable tool life guarantees high process security |
| High toughness and excellent wear resistance thanks to TiAIN-coated grade |
| Insert geometry optimized for excellent chip breaking |
| Applicable on H, K, M, N, P and S material grades |
| Easy to use |
| Finish ground in 0.01 mm increments |
| Robust design enables high feed rates |
| Sintered insert geometries ensure consistent troublefree chip control in most materials |
| H9 hole tolerance |
| M23 grade |
| CVD coated |
| Carbide body |
| 2.342 in L functional |
| 2500 rpm |
| 0.152 in L point |
| 150XD D hole |
| Axial concentric coolant entry |
| ISO Code: 808-0512D1.142 M23 |
| ANSI Code: 808-0512D1.142 M23 |
| 20 life cycle state |
