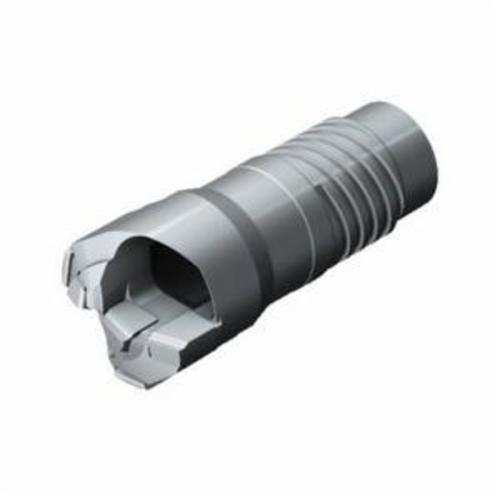

Sandvik Coromant 6766205 CoroDrill® 808 Right Hand STS With Internal Chip Evacuation, 1.1811 in, 1.4566 in Dia Max Drill
Drill Heads
1252146
MFG #: 6766205
Sandvik Coromant
204.56000
/ ea
CoroDrill® 808 is a deep hole machining concept designed especially for the STS and Ejector systems. Among many great features, this product is equipped with optimized pad design for good hole finish, unique edge preparation for increased chip breaking, and a reinforced periphery insert corner for added security and reliability.
- Features
| SZ 08 STS head machine side compatibility |
| Axial concentric coolant entry |
| Axial concentric coolant exit |
| M23 grade |
| 68.7 mm L functional |
| 68.7 mm overhang |
| 4.957 mm L point |
| 2000 r/min |
| Carbide material |
| H9 achievable hole tolerance |
| M, P material classification |
| 808-..D tool style |
| Meets tolerance demands of it 9 |
| Long and predictable tool life guarantees high process security |
| High toughness and excellent wear resistance thanks to TiAlN-coated grade |
| Insert geometry optimized for excellent chip breaking |
| No pre-setting, no need for tool-room service |
| Finish ground in 0.01 mm increments |
| Robust design enables high feed rates |
| Sintered insert geometries ensure consistent, trouble-free chip control in most materials |
