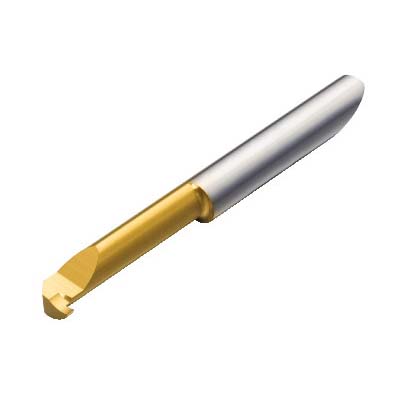

Sandvik Coromant 6765397 CoroTurn® XS Grooving Tool/Insert, CXS-04G070-3016L 1025, CXS-xxG Insert, 0.0275 in W Cutting, 1025, CXS-04G070-3016L 1025
Custom_Product_Images_Illustration
Sandvik Coromant 6765397 CoroTurn® XS Grooving Tool/Insert, CXS-04G070-3016L 1025, CXS-xxG Insert, 0.0275 in W Cutting, 1025, CXS-04G070-3016L 1025
SKU1236587
MFGR #6765397
Your Cost: $71.04/ea
List: Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0275 in Cutting Width, 0.0236 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 1.3771 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-04G070-3016L 1025, ISO Code: CXS-04G070-3016L 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Sandvik Coromant Grooving Tool/Insert, Series: CoroTurn® XS, CXS-xxG Insert, 0.0275 in Cutting Width, 0.0236 in Maximum Depth of Cut, 0 deg Lead Angle, 0.008 in Corner Radius, 1.3771 in Length, Manufacturers Grade: 1025, ANSI Code: CXS-04G070-3016L 1025, ISO Code: CXS-04G070-3016L 1025, Left Hand, Solid Carbide, PVD Coated, Material Grade: M/N/O/P/S
Alternate Catalog Number CXS-04G070-3016L 1025 Catalog Number 6765397 Country of Origin GB Finish PVD TiAlN/TiN Coated Groove Width 0.7 mm Gross Weight Per Pack 3.0900 lb Item Group 325 Material Grade 1025 Maximum Hole Depth 16 mm Minimum Hole Diameter 3 mm Overall Length 34.98 mm Projection 19 mm Series CoroTurn® XS Shank Diameter 4 mm Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Cutting Direction Left Hand Material Solid Carbide Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool 20 life cycle state 90 deg body workpiece side 0.04 mm W chamfer Without coolant entry 0 mm W cutting lower tolerance 0.05 mm W cutting upper tolerance No coolant exit 4 mm Dia connection 3 mm Dia minimum bore 90 deg cutting edge 45 deg corner chamfer 33.25 mm L functional 16 mm L usable 15.65 mm L to cutting item reference point 19 mm maximum overhang 2 deg relief 1.95 mm W body 1.95 mm W functional 1 edge
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | CXS-04G070-3016L 1025 |
| Catalog Number | 6765397 |
| Country of Origin | GB |
| Finish | PVD TiAlN/TiN Coated |
| Groove Width | 0.7 mm |
| Gross Weight Per Pack | 3.0900 lb |
| Item Group | 325 |
| Material Grade | 1025 |
| Maximum Hole Depth | 16 mm |
| Minimum Hole Diameter | 3 mm |
| Overall Length | 34.98 mm |
| Projection | 19 mm |
| Series | CoroTurn® XS |
| Shank Diameter | 4 mm |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Cutting Direction | Left Hand |
| Material | Solid Carbide |
| Optimized for machining of small high quality features|High precision and repeatability|Reliable and easy to use clamping system|Solid carbide boring bar fits precisely into the adapter with a locating pin|Rigid clamping with increased stability with collet clamped adapters|Precision ground tools for high repeatability|Longer tool life by minimized micro vibrations|Clamping nut ensures easy change of cutting tool |
| 20 life cycle state |
| 90 deg body workpiece side |
| 0.04 mm W chamfer |
| Without coolant entry |
| 0 mm W cutting lower tolerance |
| 0.05 mm W cutting upper tolerance |
| No coolant exit |
| 4 mm Dia connection |
| 3 mm Dia minimum bore |
| 90 deg cutting edge |
| 45 deg corner chamfer |
| 33.25 mm L functional |
| 16 mm L usable |
| 15.65 mm L to cutting item reference point |
| 19 mm maximum overhang |
| 2 deg relief |
| 1.95 mm W body |
| 1.95 mm W functional |
| 1 edge |
