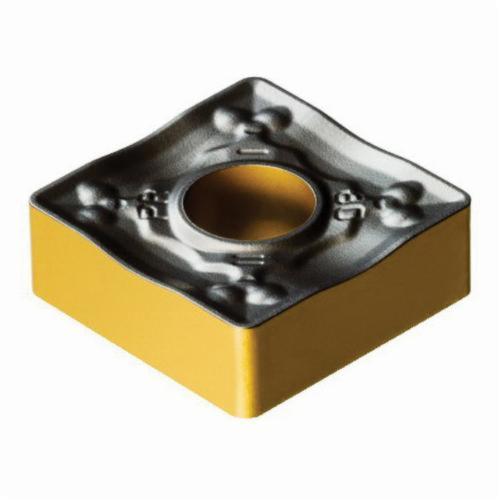

Sandvik Coromant 6709515 T-Max® P Negative Basic Shape Turning Insert, SNMM 544-PR 4305, S-Square, SNMM Insert, 4305
Custom_Product_Images_Illustration
Sandvik Coromant 6709515 T-Max® P Negative Basic Shape Turning Insert, SNMM 544-PR 4305, S-Square, SNMM Insert, 4305
SKU1243655
MFGR #6709515
Your Cost: $29.26/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMM Insert, S-Square, 9 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, PR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: SNMM 544-PR 4305, ISO Code: SNMM 15 06 16-PR 4305, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMM Insert, S-Square, 9 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, PR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 4305, ANSI Code: SNMM 544-PR 4305, ISO Code: SNMM 15 06 16-PR 4305, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number SNMM 544-PR 4305 ANSI Code SNMM 544-PR 4305 Catalog Number 6709515 Corner Radius 0.062 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4500 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMM 15 06 16-PR 4305 Item Group 112 Length 5/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker PR Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 5/8 in Insert Size 544 Insert Style SNMM Manufacturer's Grade 4305 Material Carbide Material Grade K, P Maximum Depth of Cut 0.374 in Rake Negative Seat Size 15 Shape Square T9325 grade functionally gradient substrate Relatively low content of cobalt binder phase Thick MT-CVD coating Highly versatile material with very good operational reliability Special surface finish for coating Medium and higher cutting speed Continuous and interrupted cut Unfavorable cutting conditions, continuous and/or interrupted cuts Cutting geometry suitable for grooving and axial turning Suitable for turning, with an indexing accuracy to ISO tolerance class-G and chipbreakers on one side only NF2 chipbreaker - balance shaped chipbreaker Excellent chip control Low cutting forces High durability and reliability as a result of the combination with new T7325 grade High productivity Very universal chipbreaker with stabilizing T-Land Covers a wide range of applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMM 544-PR 4305 |
| ANSI Code | SNMM 544-PR 4305 |
| Catalog Number | 6709515 |
| Corner Radius | 0.062 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4500 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMM 15 06 16-PR 4305 |
| Item Group | 112 |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | PR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | SNMM |
| Manufacturer's Grade | 4305 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 0.374 in |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| T9325 grade functionally gradient substrate |
| Relatively low content of cobalt binder phase |
| Thick MT-CVD coating |
| Highly versatile material with very good operational reliability |
| Special surface finish for coating |
| Medium and higher cutting speed |
| Continuous and interrupted cut |
| Unfavorable cutting conditions, continuous and/or interrupted cuts |
| Cutting geometry suitable for grooving and axial turning |
| Suitable for turning, with an indexing accuracy to ISO tolerance class-G and chipbreakers on one side only |
| NF2 chipbreaker - balance shaped chipbreaker |
| Excellent chip control |
| Low cutting forces |
| High durability and reliability as a result of the combination with new T7325 grade |
| High productivity |
| Very universal chipbreaker with stabilizing T-Land |
| Covers a wide range of applications |
