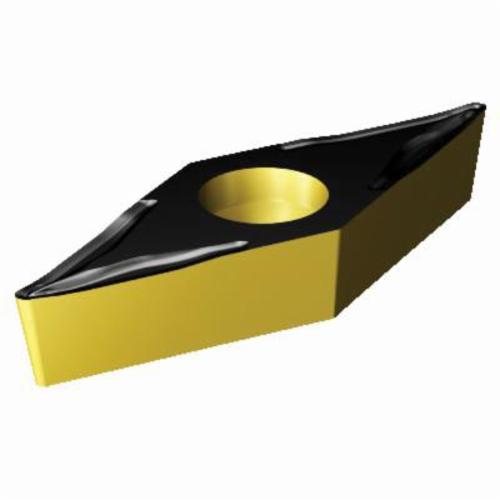

Sandvik Coromant 6434159 CoroTurn® 107 Basic Shape Positive Turning Insert, VBMT 332-UM 4325, V-35 deg Diamond, 4325
Custom_Product_Images_Illustration
Sandvik Coromant 6434159 CoroTurn® 107 Basic Shape Positive Turning Insert, VBMT 332-UM 4325, V-35 deg Diamond, 4325
SKU905479
MFGR #6434159
Your Cost: $23.99/ea
List: Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VBMT Insert, V-35 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, UM Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: VBMT 332-UM 4325, ISO Code: VBMT 16 04 08-UM 4325, 35 deg Included Angle, 5 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, VBMT Insert, V-35 deg Diamond, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1874 in Thickness, 0.6537 in Length, UM Chipbreaker, 0.0312 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: VBMT 332-UM 4325, ISO Code: VBMT 16 04 08-UM 4325, 35 deg Included Angle, 5 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
Alternate Catalog Number VBMT 332-UM 4325 ANSI Code VBMT 332-UM 4325 Catalog Number 6434159 Corner Radius 0.031 in Country of Origin JP Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.2500 lb Hole Diameter 0.1732 in Included Angle 35 ° ISO Code VBMT 16 04 08-UM 4325 Item Group 122 Length 0.6537 in Relief Angle 5 ° Series CoroTurn® 107 Thickness 0.187 in Type 1-Sided Basic Shape UPC 11 69826276002 UPC 12 69826276002 Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker UM Cutting Direction Neutral For Use On Cast Iron and Steel Inscribed Circle 3/8 in Insert Size 332 Insert Style VBMT Manufacturer's Grade 4325 Material Carbide Material Grade K, P Maximum Depth of Cut 4 mm Rake Positive Seat Size 16 Shape Diamond Heavy roughing Machining of cast skins/forged parts Interrupted cuts Maximum cutting depths and feeds Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | VBMT 332-UM 4325 |
| ANSI Code | VBMT 332-UM 4325 |
| Catalog Number | 6434159 |
| Corner Radius | 0.031 in |
| Country of Origin | JP |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.2500 lb |
| Hole Diameter | 0.1732 in |
| Included Angle | 35 ° |
| ISO Code | VBMT 16 04 08-UM 4325 |
| Item Group | 122 |
| Length | 0.6537 in |
| Relief Angle | 5 ° |
| Series | CoroTurn® 107 |
| Thickness | 0.187 in |
| Type | 1-Sided Basic Shape |
| UPC 11 | 69826276002 |
| UPC 12 | 69826276002 |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | UM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron and Steel |
| Inscribed Circle | 3/8 in |
| Insert Size | 332 |
| Insert Style | VBMT |
| Manufacturer's Grade | 4325 |
| Material | Carbide |
| Material Grade | K, P |
| Maximum Depth of Cut | 4 mm |
| Rake | Positive |
| Seat Size | 16 |
| Shape | Diamond |
| Heavy roughing |
| Machining of cast skins/forged parts |
| Interrupted cuts |
| Maximum cutting depths and feeds |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
