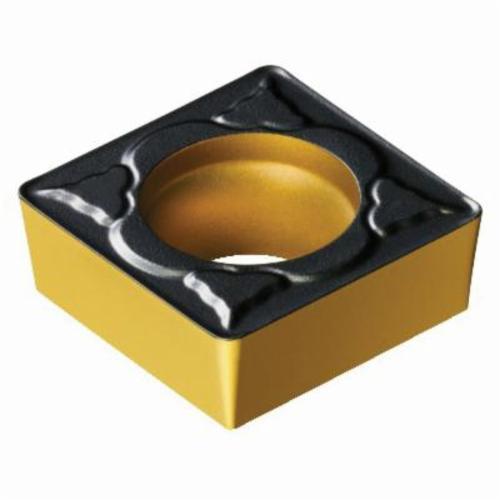

Sandvik Coromant 6434031 CoroTurn® 107 Basic Shape Positive Turning Insert, SCMT 3(2.5)1-PM 4325, S-Square, SCMT Insert, 4325
SCMT Turning Inserts
911826
MFG #: 6434031
Sandvik Coromant
14.91000
/ ea
Sandvik Coromant Turning Insert, Basic Shape Positive, Series: CoroTurn® 107, SCMT Insert, S-Square, 3 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.1562 in Thickness, 3/8 in Length, PM Chipbreaker, 0.0156 in Corner Radius, 0.1732 in Hole Dia, Manufacturer's Grade: 4325, ANSI Code: SCMT 3(2.5)1-PM 4325, ISO Code: SCMT 09 T3 04-PM 4325, 90 deg Included Angle, 7 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: K/P
- Features
| 40 - 60 deg countersunk hole and non-flat surface clamping interface |
| 1-side cutting |
| +/-0.13 mm THK and +/-0.05 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external machining of small, long, slender components and internal machining |
| The positive insert shape combines low cutting forces with good edge strength |
| The screw clamping ensures stability and unobstructed chip flow |
| 0.08 - 0.23 mm/r cutting feed |
| 20 life cycle state |
