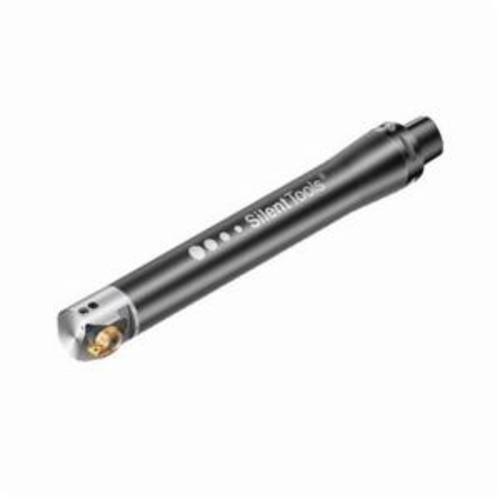

Sandvik Coromant 6352225 CoroBore® 825 Dampened Fine Boring Tool, 1.1023 in Min, 1.4173 in Max, 9.37 in OAL, Right Hand
Modular Boring Cutting Unit Heads
1228482
MFG #: 6352225
Sandvik Coromant
4385.26000
/ ea
CoroBore® 825 is a flexible tool covering a large diameter range. The tools can be adjusted radially in order to cover a certain diameter range with one tool. The tools allow precision adjustment in microns in order to achieve close tolerances.
- Features
Bolt and segment clamping machine side adaptive interface |
2 mm adjustment increment |
4 mm adjustment limit |
26 mm Dia body |
4.8 deg body half taper |
1 cutting item |
Axial concentric and radial coolant entry |
70 bar coolant |
Axial inclined coolant exit |
EFW feed direction |
0 deg orthogonal rake |
92 deg cutting edge |
0 deg inclination |
200 mm L body |
219 mm L functional |
219 mm L protruding |
219 mm overhang |
6821 r/min |
0.6 Nm torque |
825D..TC-Cx (2) tool style |
