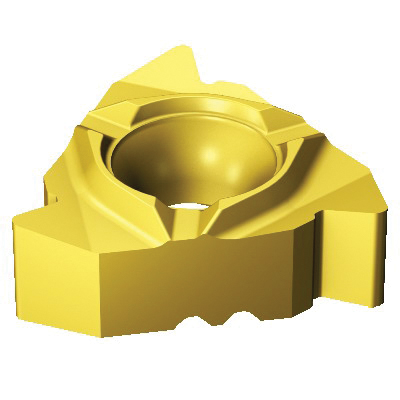

Sandvik Coromant 6297197 CoroThread® 266 Threading Insert, 266RL-16NT01C080M 1135, T-Triangle, 266RL..NT..C (M) Insert, 8
266RL Threading Inserts
1246347
MFG #: 6297197
Sandvik Coromant
31.33000
/ ea
Sandvik Coromant Threading Insert, Series: CoroThread® 266, 266RL..NT..C (M) Insert, 16 Insert, T-Triangle, Internal, 8, 3/8 in Inscribed Circle, 0.1562 in Thickness, ANSI Code: 266RL-16NT01C080M 1135, ISO Code: 266RL-16NT01C080M 1135, A Chipbreaker, Positive Rake, 60 deg Included Angle, Manufacturer's Grade: 1135, Right Hand, Carbide, PVD Coated, Material Grade: S
- Features
| 0 deg clearance |
| 20 life cycle state |
| 40 - 60 deg countersunk hole, rail bottom and non-flat surface |
| 4.4 mm Dia fixing hole |
| 2.57 mm H theoretical thread |
| 0.14 mm H difference thread |
| 8 mounting style code |
| 1 tooth count |
| 1.6 mm profile distance |
| 1.01 mm profile distance |
| NPT60 thread form |
| 2.43 mm D maximum cutting |
| Screw mounting |
| 3 edges |
| 3/8 insert seat size code |
